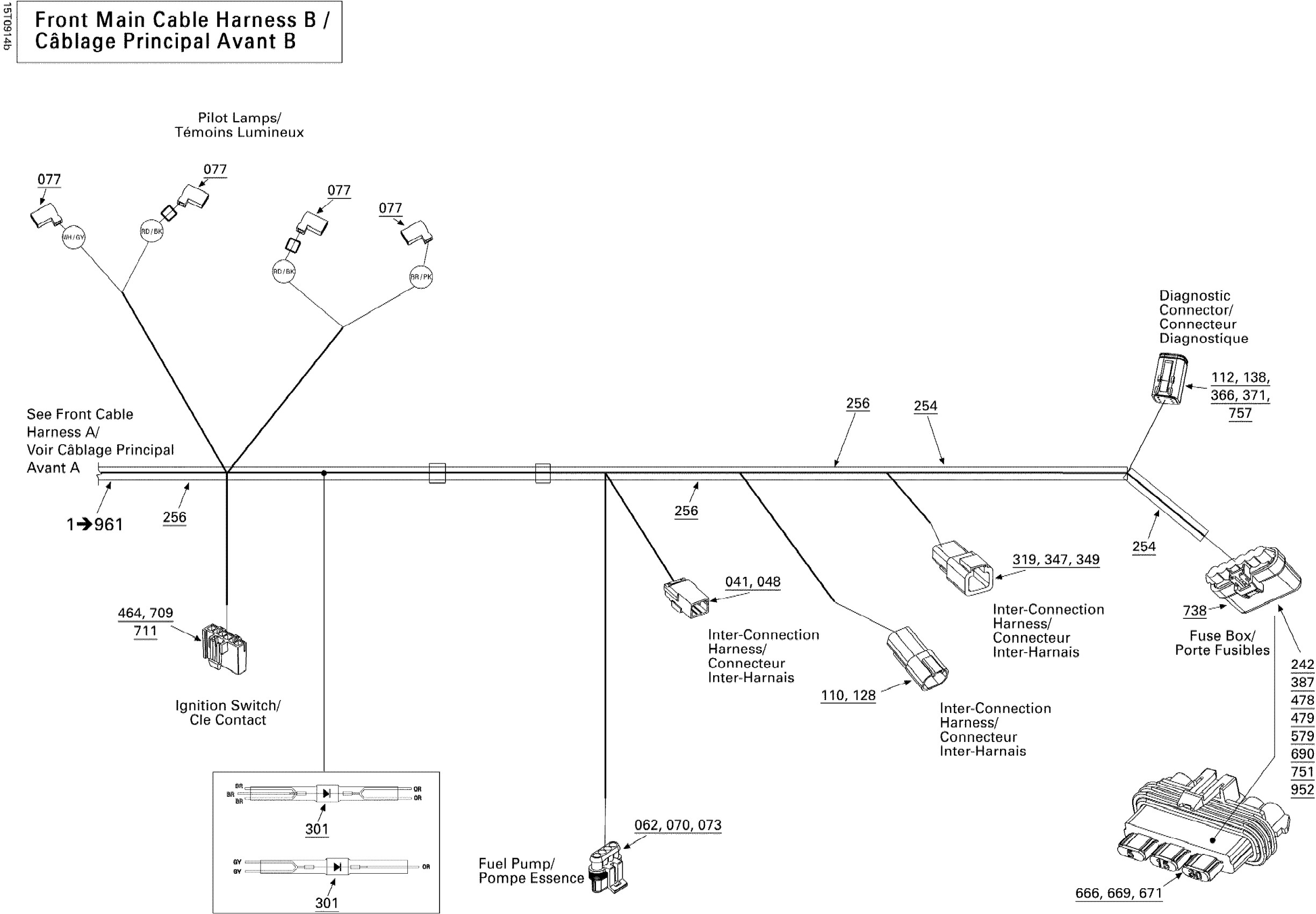

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 10- Electrical Harness, Front Section Diagram

#

Description
Price

1

FRONT MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 961

710001296

Unavailable

41

Male Terminal

515175232

$1.58

44

Female Terminal

515175231

$4.39

48

Male Housing, 3 Circuits

515175494

$16.18

62

Female Terminal

278001014

$3.28

70

Female Housing, 4 Circuits

409209700

$16.18

71

Connector

710000780

$19.49

73

Wire Seal

278001013

$3.28

75

Female Terminal

409010700

$5.39

77

Female Terminal

409010300

$4.39

110

Male Terminal

278000631

$4.39

112

Male Terminal

278000631

$4.39

128

Female Wedge, 4 Circuits

278000636

$4.39

138

Sealing Cap

293000052

$3.19

227

Male Terminal

409004300

$5.61

231

Female Housing, 2 Circuits

278000217

$9.59

242

Wire Seal

278000218

$4.39

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

279

Male Terminal

409011300

$5.93

280

Female Terminal

409012100

$4.55

286

Seal

409012300

$4.54

287

Cap

710000080

$8.29

297

Insulated Sheath

278001007

$3.58

301

Diode

409012700

$11.12

319

Male Terminal

515175568

$9.12

334

Female Housing, 6 Circuits

710000081

$8.79

347

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

349

Male Lock, 2 Circuits

278001672

$3.49

355

Female Housing, 2 Circuits

515175658

$16.18

366

Male Housing, 6 Circuits

515175673

$15.49

371

Male Wedge, 6 Circuits

515175678

$5.39

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

464

Female Terminal

710000274

$9.59

478

Housing, 6 Circuits

710000888

$17.04

479

Lock

710000889

$4.39

498

Female Housing

710000399

$16.49

499

Wire Seal

710000402

$4.55

506

Female Terminal

710000421

$6.11

579

Wire Seal

710000504

$4.39

666

Little Fuse, 5 Amperes

710000742

$8.79

669

Little Fuse, 15 Ampere

710000745

$8.49

671

Little Fuse, 30 Amperes

710000747

$8.49

690

Female Terminal

710000890

$4.55

700

Female Terminal

710000890

$4.55

709

Lock

710000848

$3.19

711

Male Housing, 6 Circuits

710000849

$9.69

713

Female Terminal Housing, 2 Circuits

515176296

$5.89

738

Cover

710000897

$16.49

751

Female Terminal

710000918

$7.69

757

Female Terminal

278001665

$4.55

831

Female Terminal

710001131

$8.89

886

Housing

710001232

$14.29

888

Seal

710001230

$2.24

889

Seal

710001233

$3.19

890

Terminal

710001229

$3.19

891

Terminal

710001228

$3.28

893

Housing

710001226

$13.49

894

Cap

710001225

$9.19

898

LOCK - Call your local BRP dealership

710001221

$9.39

906

TERMINAL - Call your local BRP dealership

710001234

Unavailable

931

TERMINAL - Call your local BRP dealership

710001369

Unavailable

934

TERMINAL - Call your local BRP dealership

710001356

Unavailable

935

HOUSING - Call your local BRP dealership

710001355

Unavailable

936

Relay

715900135

$17.04

952

Clip

293650187

$4.97

957

HOUSING - Call your local BRP dealership

710001435

Unavailable

958

TERMINAL - Call your local BRP dealership

710001436

Unavailable

961

Male Housing Terminal, 6 Circuits

710001446

$4.55
