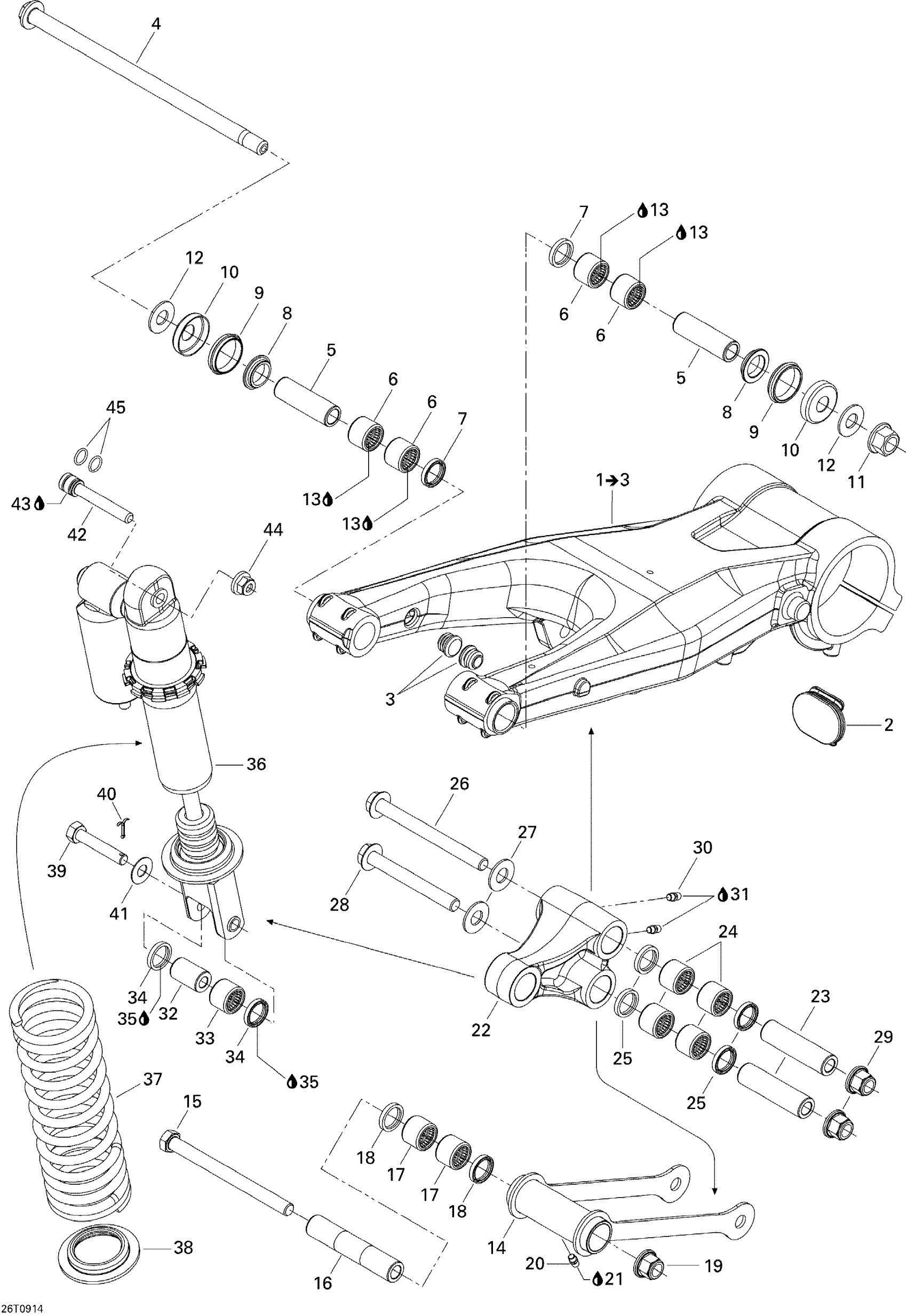

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 08- Rear Suspension Diagram

#

Description
Price

1

SWING ARM ASS'Y - Call your local BRP dealership | Includes 1 to 3

706000849

Unavailable

2

SWING ARM CAP - Call your local BRP dealership

706000459

Unavailable

3

Cap

517302716

$4.69

4

HEX. SCREW M14 X 287 - Call your local BRP dealership

250000358

Unavailable

5

Bushing

706000441

Unavailable

6

Bearing

706000447

$12.69

7

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

8

SPACER - Call your local BRP dealership

706000701

Unavailable

9

SEAL - Call your local BRP dealership

706000750

Unavailable

10

SEAL CAP - Call your local BRP dealership

706000738

Unavailable

11

Elastic Stop Nut

232571436

$2.11

12

FLAT WASHER - Call your local BRP dealership

250200079

Unavailable

13

Synthetic Grease, 400 G

293550010

Unavailable

14

LEVER - Call your local BRP dealership

706000445

Unavailable

15

Hexagonal Screw M12 x 145

230024586

Unavailable

16

BUSHING - Call your local BRP dealership

706000730

Unavailable

17

Bearing

706000447

$12.69

18

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

19

Flange Elastic Nut

233221434

$4.44

20

Grease Fitting

250000315

$5.82

21

Synthetic Grease, 400 G

293550010

Unavailable

22

SECONDARY LEVER - Call your local BRP dealership

706200465

Unavailable

23

Bushing

706000731

$15.82

24

Bearing

706000447

$12.69

25

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

26

SCREW-HEX.CAP-ISO.4014 S.GRIP - Call your local BRP dealership

230223086

Unavailable

27

Hardened Washer

706200281

$2.85

28

Hexagonal Screw M12 X 105

230020586

$7.51

29

Flange Elastic Nut

233221434

$4.44

30

Grease Fitting

250000315

$5.82

31

Synthetic Grease, 400 G

293550010

Unavailable

32

BUSHING - Call your local BRP dealership

706000733

Unavailable

33

Bearing

706000447

$12.69

34

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

35

Synthetic Grease, 400 G

293550010

Unavailable

36

REAR SHOCK - Call your local BRP dealership

706000504

Unavailable

37

SPRING - Call your local BRP dealership

706000505

Unavailable

38

Spring Stopper

706000567

$15.99

39

BOLT M10 - Call your local BRP dealership

250000254

Unavailable

40

Cotter Pin

250400034

$2.11

41

FLAT WASHER - Call your local BRP dealership

250200074

Unavailable

42

SCREW - Call your local BRP dealership

706000541

Unavailable

43

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

44

Hex. Flange Elastic Nut M10

233201436

$2.11

45

O-RING - Call your local BRP dealership

504151954

Unavailable
