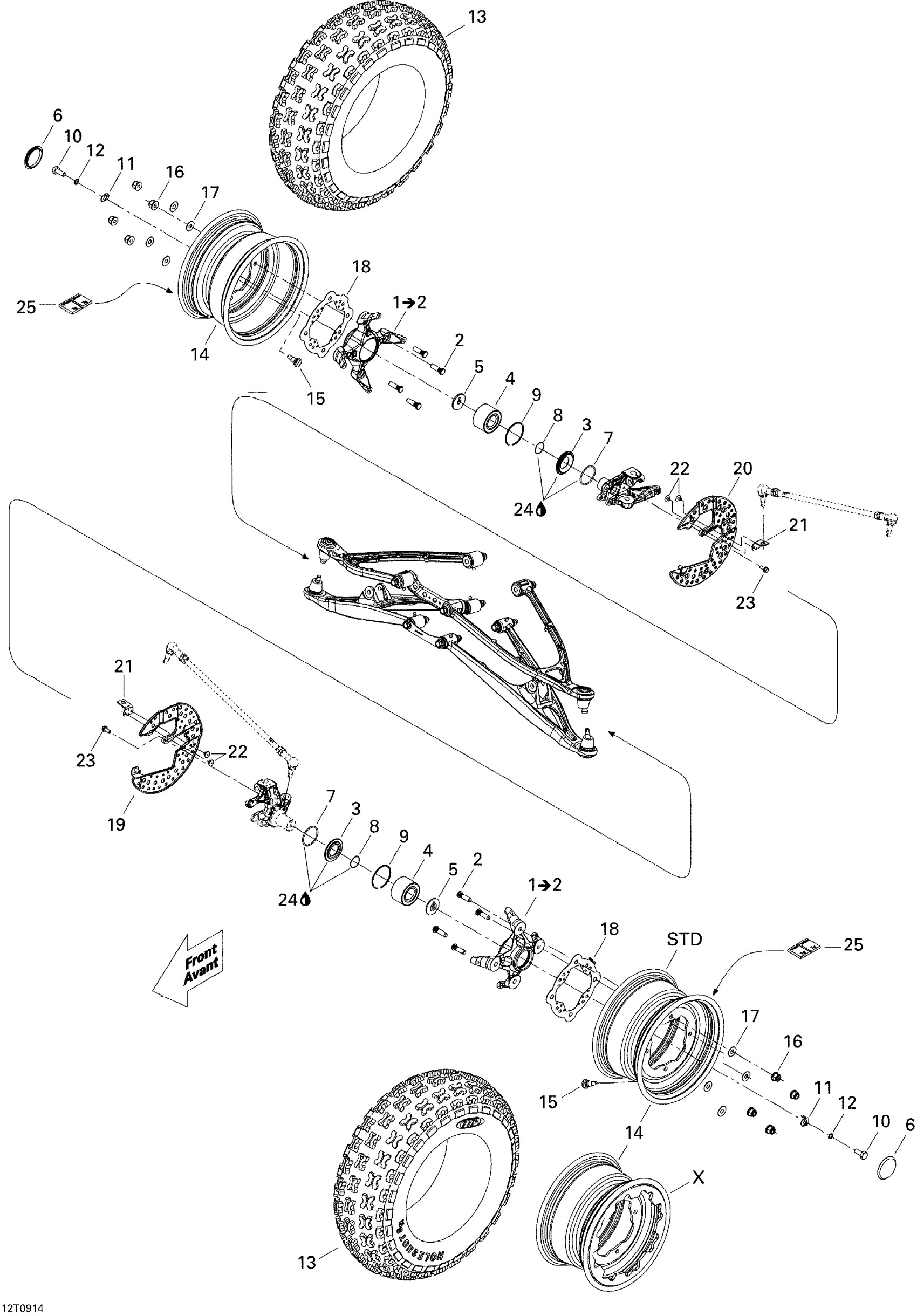

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 07- Drive System, Front Diagram

#

Description
Price

1

WHEEL HUB ASS'Y - Call your local BRP dealership | Includes 1 to 2

705400368

Unavailable

2

Wheel Stud

250000138

$11.05

3

SUPPORT RING - Call your local BRP dealership

705400371

Unavailable

4

Ball Bearing

293350150

$52.99

5

WASHER - Call your local BRP dealership

705400722

Unavailable

6

CAP - Call your local BRP dealership

705400792

Unavailable

7

O-RING - Call your local BRP dealership

293300113

Unavailable

8

O-Ring

293300114

$15.89

9

Circlip

293370019

$4.68

10

HEX. SCREW M10 X 25 - Call your local BRP dealership

207102534

Unavailable

11

LOCK WASHER - Call your local BRP dealership

705400767

Unavailable

12

FLAT WASHER - Call your local BRP dealership

250200103

Unavailable

13

TIRE_21X7R10 F - Call your local BRP dealership

705400640

Unavailable

14

RIM_10 INCH X 5,5 - Call your local BRP dealership

705400375

Unavailable

14

FRONT RIM - Call your local BRP dealership

705400428

Unavailable

15

Rim Valve With Cap

705400193

$8.69

16

Flange Nut M10

250100105

$6.89

17

Flat Washer

250200080

$2.11

18

EXTERIOR DISK - Call your local BRP dealership

705400572

Unavailable

19

LH INTERIOR DISK - Call your local BRP dealership

705400573

Unavailable

20

RH INTERIOR DISK - Call your local BRP dealership

705400576

Unavailable

21

DISK SUPPORT - Call your local BRP dealership

705400603

Unavailable

22

Pop Rivet 3/16"

293150103

$0.55

23

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

24

Graisse *Grease

293550062

$15.99

25

Self Adhesive Weight, 5G 20mm

705502106

$4.69
