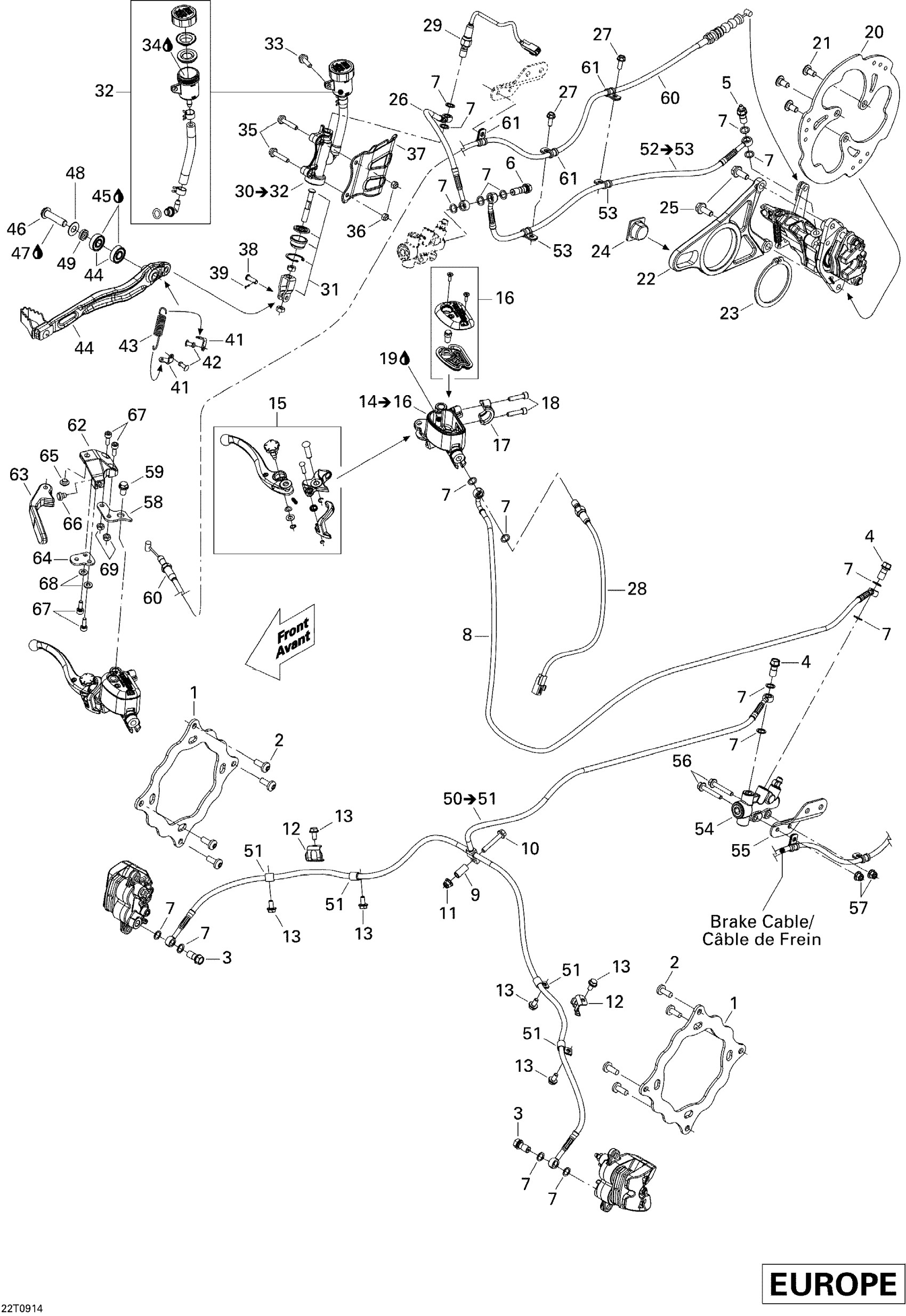

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 06- Hydraulic Brakes Diagram

#

Description
Price

1

FRONT BRAKE DISC - Call your local BRP dealership

705600400

Unavailable

2

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

3

Banjo Bolt

705600628

$11.63

4

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

5

SCREW BLEEDER - Call your local BRP dealership

705600680

Unavailable

6

Banjo Bolt

705600958

$6.35

7

Copper Washer

705601628

$4.44

8

FRONT LEVER BRAKE HOSE ASS'Y - Call your local BRP dealership

705600615

Unavailable

9

SPACER - Call your local BRP dealership

512059812

Unavailable

10

Hex. Flange Screw M6 X 40

207664034

Unavailable

11

Flange Elastic Nut M6

233261434

$4.44

12

Hose Holder

705600553

Unavailable

13

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

$2.11

14

CYLINDER MASTER ASS'Y - Call your local BRP dealership | Includes 25 to 27

705600409

Unavailable

15

Brake Lever Kit

705600491

$82.99

16

CAP SET - Call your local BRP dealership

705600493

Unavailable

17

BRACKET KIT - Call your local BRP dealership

705600619

Unavailable

18

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

205062534

Unavailable

19

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

20

REAR BRAKE DISC - Call your local BRP dealership

705600655

Unavailable

21

SHOULDER SCREW M8 - Call your local BRP dealership

250000330

Unavailable

22

REAR CALIPER SUPPORT - Call your local BRP dealership

705600656

Unavailable

23

SNAP RING - Call your local BRP dealership

293370045

Unavailable

24

GUIDE REAR CALIPER - Call your local BRP dealership

705600412

Unavailable

25

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

26

BRAKE LINE - Call your local BRP dealership

705600986

Unavailable

27

Hex. Flange Screw M6 X 16

210261650

$1.67

28

Switch

710003837

$42.49

29

BRAKE SWITCH - Call your local BRP dealership

710003838

Unavailable

30

Rear Master Cylinder | Includes 46 to 48

705600738

$274.99

31

ROD SET - Call your local BRP dealership

705600498

Unavailable

32

SET TANK ASS'Y - Call your local BRP dealership

705600740

Unavailable

33

Hex. Flange Screw M6 X 20

207662034

$2.11

34

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

35

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

36

Elastic Stop Nut M6

232561434

$1.99

37

Hose Protector

705600538

$12.11

38

Clevis Pin

250400031

$7.73

39

Cotter Pin

250400032

$2.61

40

BRAKE PEDAL - Call your local BRP dealership

705600534

Unavailable

41

FIXATION PLATE - Call your local BRP dealership

705600631

Unavailable

42

Pop Rivet 3/16”

390407200

$0.70

43

BRAKE PEDAL SPRING - Call your local BRP dealership

705600635

Unavailable

44

Bearing

705600458

$19.99

45

Loctite 609, 10 ml

413703100

$26.99

46

SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership

205404036

Unavailable

47

Loctite 243, 10 ml

293800060

$21.49

48

Washer

506152194

$4.55

49

Bushing

293900087

$7.90

50

BRAKE LINE - Call your local BRP dealership | Includes 50 to 51

705601041

Unavailable

51

Clamp

293650256

$5.49

52

BRAKE LINE - Call your local BRP dealership | Includes 52 to 53

705600948

Unavailable

53

Clamp

293650256

$5.49

54

SPLITTER - Call your local BRP dealership

705600617

Unavailable

55

Splitter Support

705600618

Unavailable

56

Hex. Flange Screw M6 X 40

207664034

Unavailable

57

Flange Elastic Nut M6

233261434

$4.44

58

LEVER SUPPORT - Call your local BRP dealership

705600660

Unavailable

59

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

60

BRAKE CABLE - Call your local BRP dealership

705600661

Unavailable

61

Clamp

293650256

$5.49

62

CABLE SUPPORT - Call your local BRP dealership

705600662

Unavailable

63

LEVER BRAKE - Call your local BRP dealership

705600663

Unavailable

64

SUPPORT - Call your local BRP dealership

705600664

Unavailable

65

LEVER PIVOT - Call your local BRP dealership

705600665

Unavailable

66

Stopper

705600666

Unavailable

67

Socket Screw M6 X 16

205061660

$1.48

68

Stainless Flat Washer M6

234061600

$0.33

69

Elastic Stop Nut M6

232561434

$1.99
