Description

Price

1

FUEL TANK - Call your local BRP dealership

709000180

Unavailable

2

Rubber Pad

709000401

$9.79

3

BUSHING - Call your local BRP dealership

293900067

Unavailable

4

Flat Washer

250200082

$0.42

5

Flat Washer M8

234082430

$2.11

6

Hex. Flange Elastic Nut M8

233281434

$2.11

7

Hex. Flange Screw M6 X 35

207063544

$1.37

8

Elastic Stop Nut M6

232561434

$1.99

9

BUSHING - Call your local BRP dealership

293900088

Unavailable

10

Was 709000163 Fuel Line

219704440

$28.99

11

Joint Etanche *Gasket

709000540

$36.99

12a

Fuel Pump

709000386

$361.99

12b

Filter Kit

715900063

Unavailable

13

Crimp Clamp, 15.3-706R

293650047

$3.29

14

FUEL CAP - Call your local BRP dealership

709000117

Unavailable

15

Torx Screw M4 X 16

250000750

$1.68

16

Pump Ring

709000170

$17.83

17

Female Quick Fitting Ass'y

709000125

$15.49

18

Locking Clip

513033135

$5.89

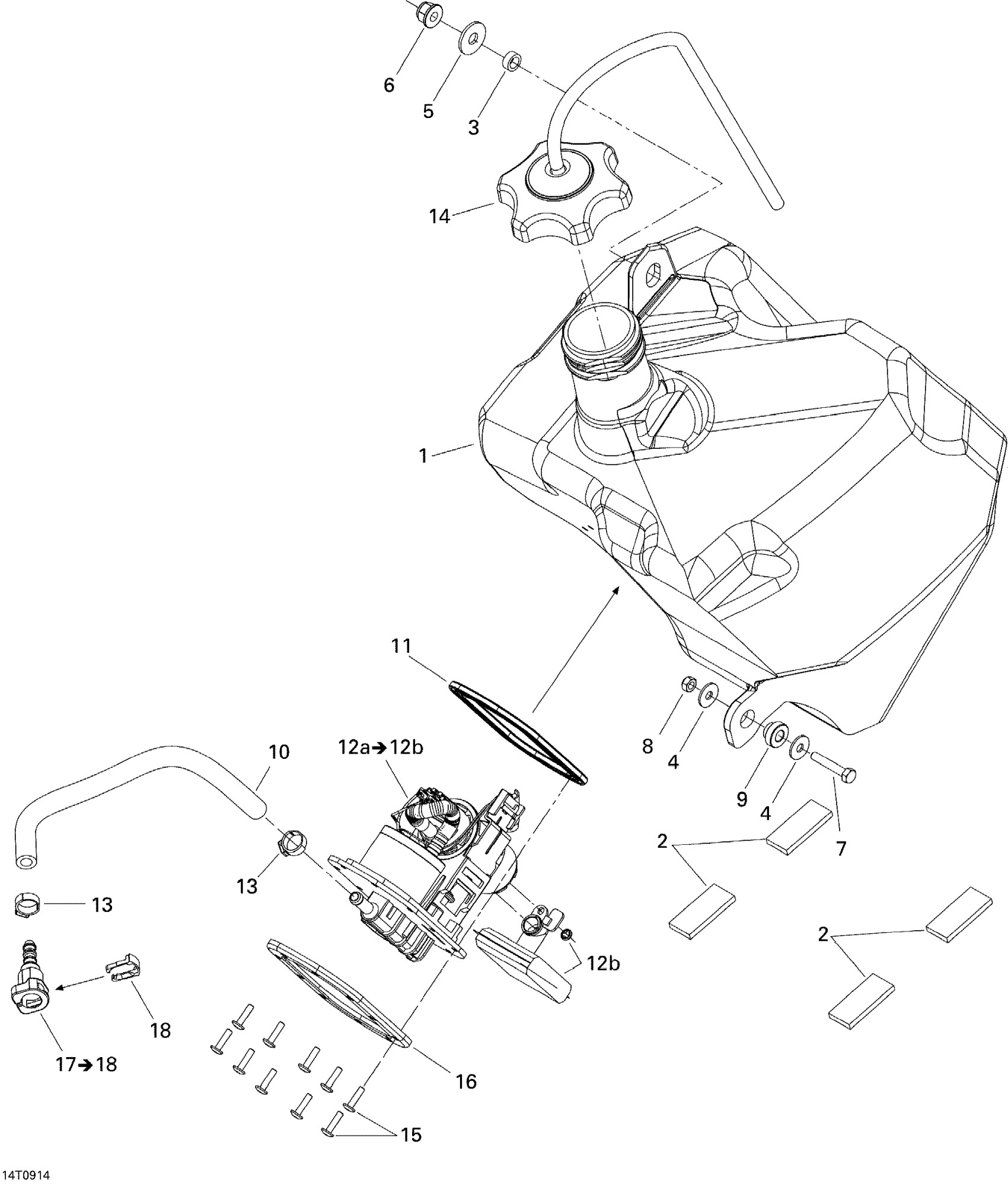

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 02- Fuel System Diagram

FUEL TANK - Call your local BRP dealership

Rubber Pad

BUSHING - Call your local BRP dealership

Flat Washer

Flat Washer M8

Hex. Flange Elastic Nut M8

Hex. Flange Screw M6 X 35

Elastic Stop Nut M6

BUSHING - Call your local BRP dealership

Was 709000163 Fuel Line

Joint Etanche *Gasket

Fuel Pump

Filter Kit

Crimp Clamp, 15.3-706R

FUEL CAP - Call your local BRP dealership

Torx Screw M4 X 16

Pump Ring

Female Quick Fitting Ass'y

Locking Clip
