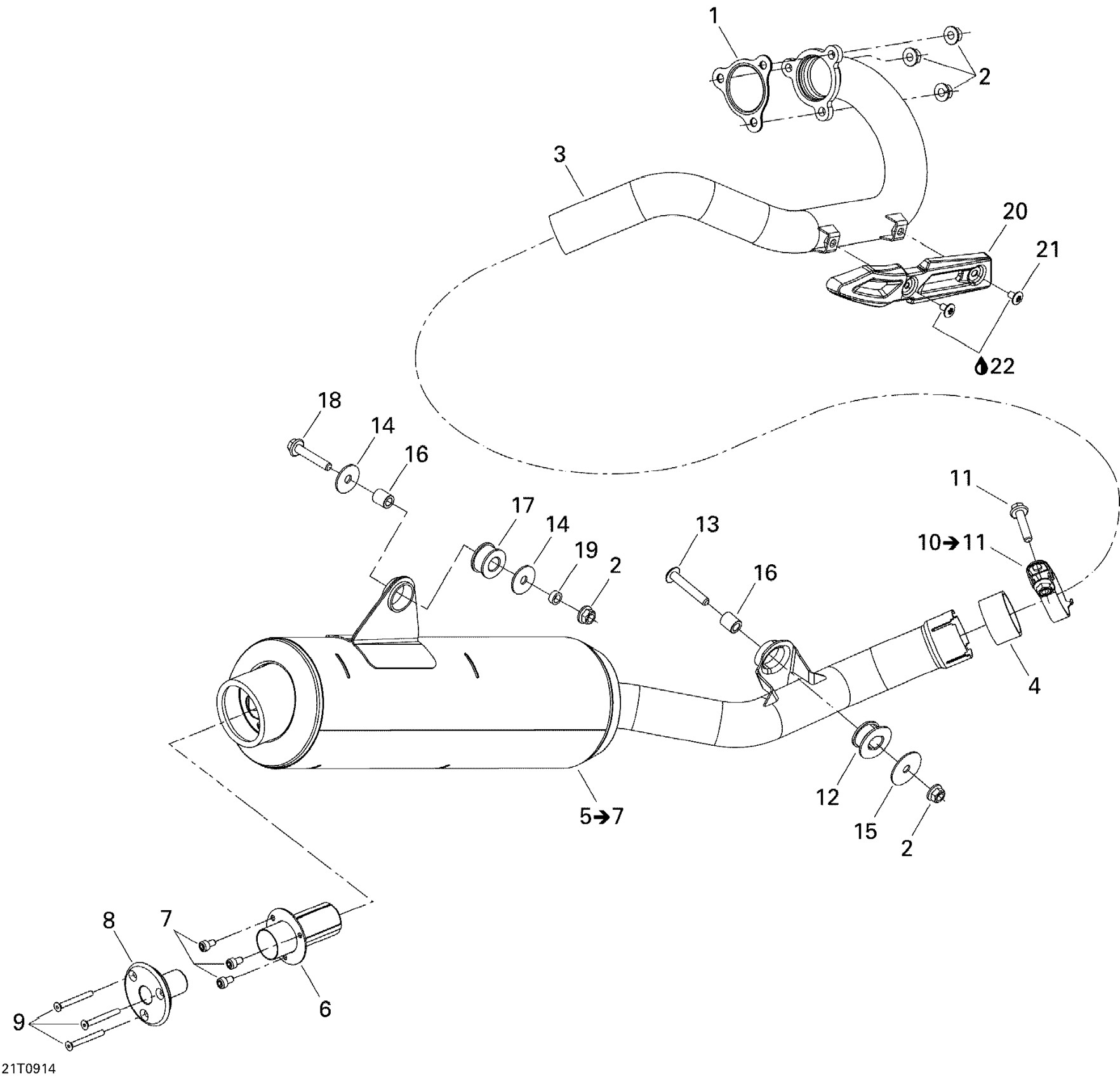

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 01- Exhaust System Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

707600445

Unavailable

2

Hex. Flange Nut

233081436

$2.00

3

PIPE_EXHAUST WELD - Call your local BRP dealership

707600401

Unavailable

4

PIPE GASKET - Call your local BRP dealership

514054289

Unavailable

5

MUFFLER_EXHAUST - Call your local BRP dealership | Includes 6a to 6c, Europe

707600536

Unavailable

6

SPARK SHIELD END PIECE - Call your local BRP dealership

707600468

Unavailable

7

Socket Head Screw M5 X 10

205051060

$1.58

8

RESTRICTOR - Call your local BRP dealership | Europe

707600630

Unavailable

9

Socket Head Screw M5 X 45

205354560

Unavailable

10

COLLAR - Call your local BRP dealership | Includes 8 to 9

707600705

Unavailable

11

Hex. Flange Screw M8 X 35

207683534

$2.11

12

Rubber

707600448

$7.90

13

Torx Truss Screw M8 X 50

250000761

$7.51

14

FLAT WASHER - Call your local BRP dealership

250200073

Unavailable

15

WASHER - Call your local BRP dealership

707600525

Unavailable

16

Bushing

293900106

$4.55

17

Vibration Damper

707603323

$11.65

18

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

207684534

Unavailable

19

BUSHING - Call your local BRP dealership

293900067

Unavailable

20

HEAT SHIELD - Call your local BRP dealership

707600432

Unavailable

21

Torx-truss M/s M6 X 10

250000995

$4.44

22

Loctite 271, 10 ml

293800005

$26.99
