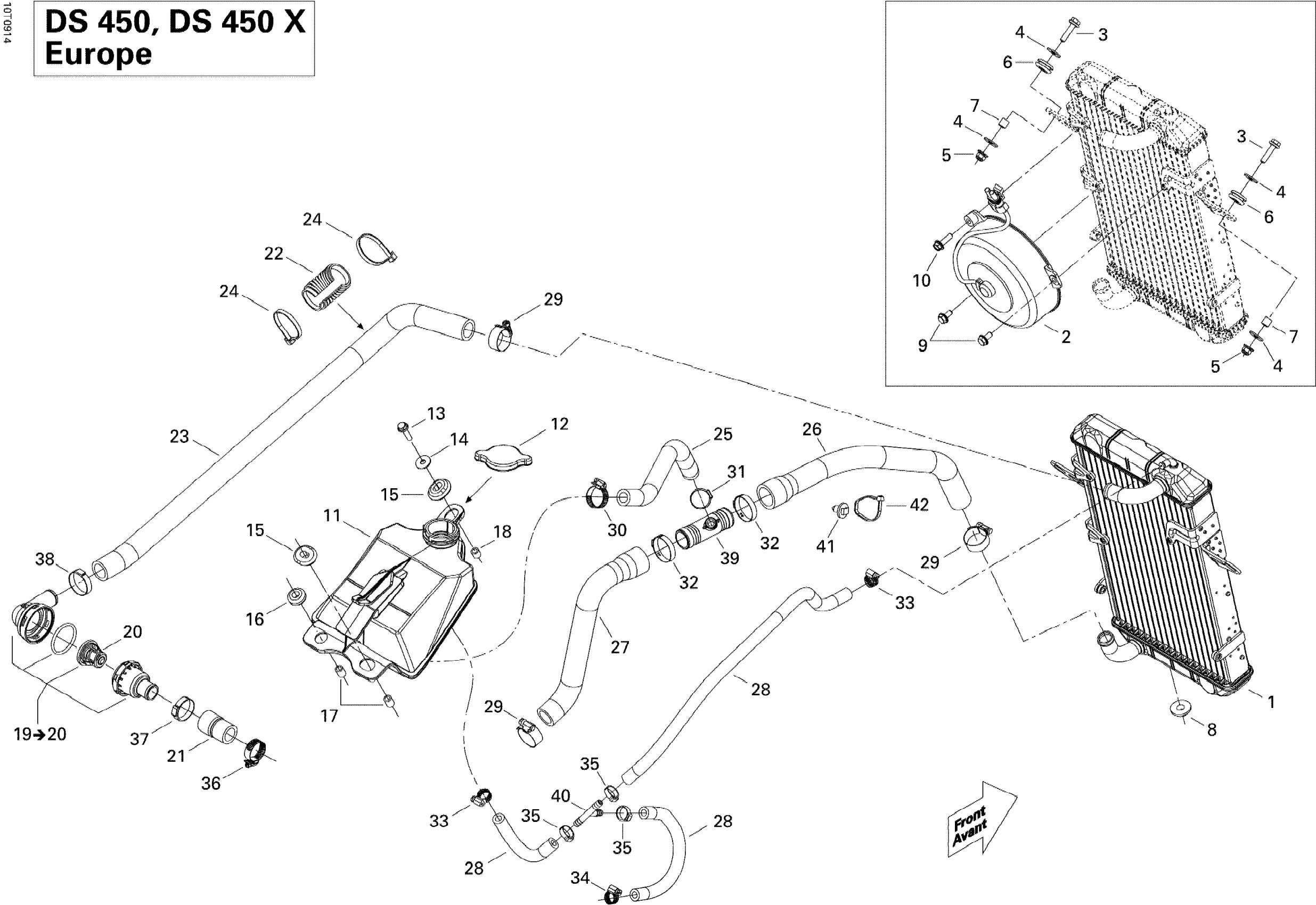

Can-Am DS 450 CE STD & X (3F9D,3G9D), 2009 01- Cooling System Diagram

RADIATOR - Call your local BRP dealership

709200152

Unavailable

FAN - Call your local BRP dealership

709200173

Unavailable

Hex. Flange Screw M6 X 25

207662534

$2.11

Flat Washer

250200082

$0.42

Flange Elastic Nut M6

233261434

$4.44

Grommet

709000582

$4.69

Bushing

293900105

$7.65

Grommet

705003932

$2.89

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

$2.11

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Tank

709200164

$53.99

Radiator Pressure Cap

709200207

$25.49

Hex. Flange Screw M6 X 25

207562544

$1.69

Flat Washer

250200082

$0.42

Oval Washer

705005156

$4.97

Grommet

709000582

$4.69

Bushing

293900019

$7.73

Bushing

293900105

$7.65

THERMOSTAT ASS'Y - Call your local BRP dealership

709200172

Unavailable

Thermostat | Includes 53 to 54

420222495

$38.99

HOSE - Call your local BRP dealership

709200200

Unavailable

Tubing 25 MM 1000MM Long

219704402

$15.99

RADIATOR IN HOSE - Call your local BRP dealership

709200236

Unavailable

Tie-Rap 180 mm

414115200

$0.11

Was 276000001 Hose 12.5 mm

219704394

$51.99

RADIATOR OUT HOSE - Call your local BRP dealership

709200237

Unavailable

HOSE PUMP - Call your local BRP dealership

709200238

Unavailable

Was 509000407 Hose 8 mm

219704420

$50.99

Tridon Gear Clamp

293650051

$4.19

Tridon Gear Clamp

293650173

$3.09

Oetiker Clamp

293650012

$7.49

Oetiker Gear Clamp 36.1MM

509000045

$8.29

Norma Clamp

293650084

$4.12

Norma Clamp

293650084

$4.12

Oetiker Clamp

293650125

$3.29

Tridon Gear Clamp

293650173

$3.09

Crimp Clamp

293650099

$4.29

Oetiker Gear Clamp

293650165

$5.39

Y-FITTING - Call your local BRP dealership

509000390

Unavailable

T-Fitting | Europe

293710024

$14.75

Mount Dart

293730040

$1.04

Tie-Rap 180 mm

414115200

$0.11
