Description

Price

1

LH Crankcase Ass'y

S11200RB1000

$404.49

2

Setting Plate

S11205RB1000

$4.14

3

Breather Hose

S11221RB1000

$14.31

4

Drain Tube Ass'y

S11230RA1000

$4.39

5

Not Available As Spare Parts

NASP/NDPR

Unavailable

6

Change Sw

S3575ARB1020

$35.99

7

Cylinder Stud

S90032HMA000

$12.12

8

Spring Fixed Catch

S90051RB1000

$1.15

9

Drain Plug Screw

S90052RB1000

$2.19

10

Drain Plug Screw

S9280012000

$0.77

11

Washer 12 mm

S9410912000

$0.53

12

Drain Plug Screw Washer 14 mm

S9410914000

$0.53

13

Hex. Flange Screw M6 X 12

S960010601200

$0.72

14

Hex. Flange Screw M6 X 18

S960010601800

$0.42

15

Hex. Flange Screw M6 X 50

S960010605000

$0.77

16

Hex. Flange Screw M6 X 70

S960010607000

$1.04

17

Steel Ball

S9621112000

$6.67

18

Gear Fixing Bolt

S23434RCA000

Unavailable

19

METER GEAR - Call your local BRP dealership

S23433RCA000

Unavailable

20

Thrust Washer

S23435RCA000

Unavailable

21

OIL SEAL - Call your local BRP dealership

S91201RCA000

Unavailable

22

Sealing Bolt

S11206RB1000

$7.90

23

Sealing Washer

S90403RB1000

$1.15

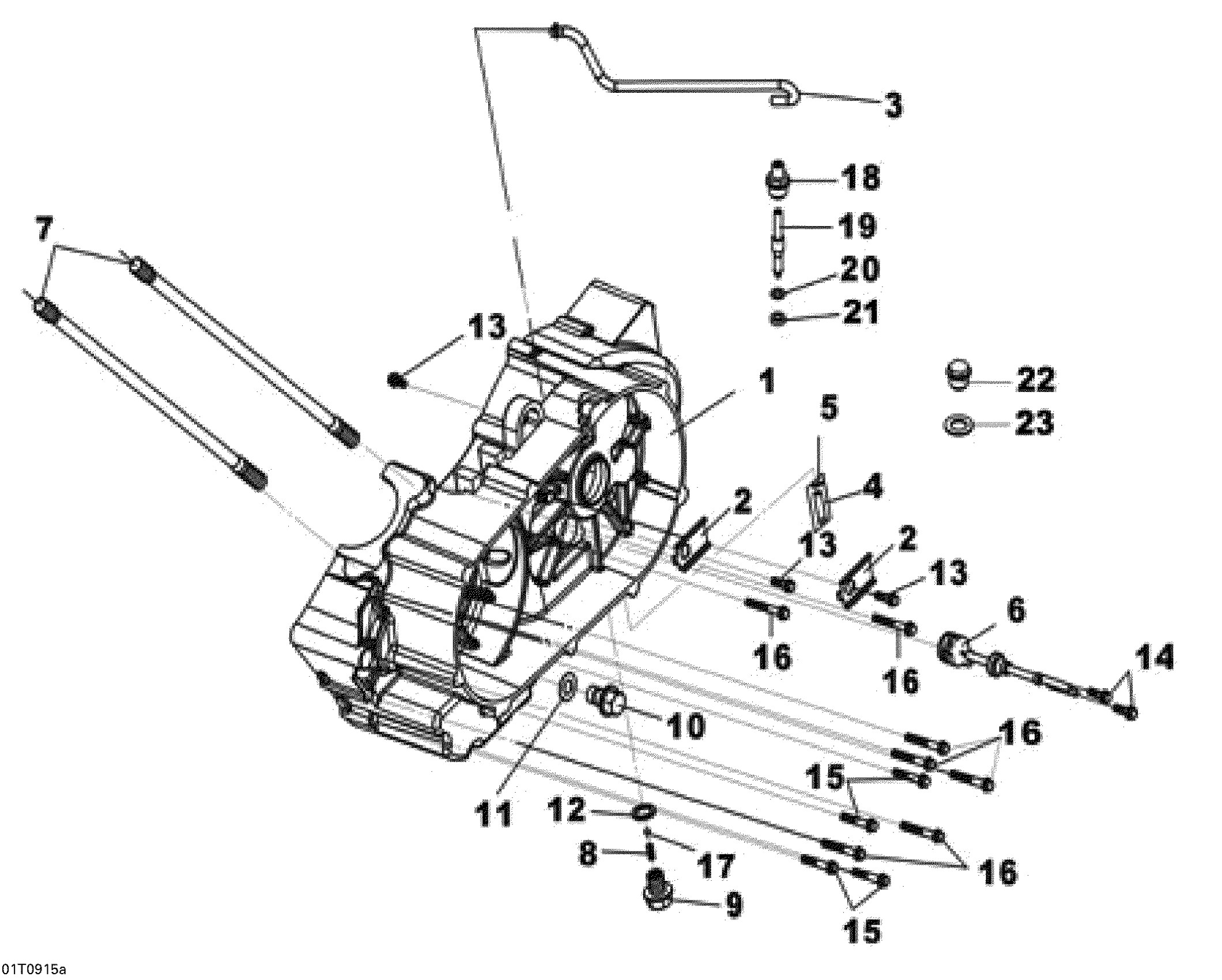

Can-Am DS 250 NA, CE & INT, 2009 01- Left Crankcase Half Diagram

LH Crankcase Ass'y

Setting Plate

Breather Hose

Drain Tube Ass'y

Not Available As Spare Parts

Change Sw

Cylinder Stud

Spring Fixed Catch

Drain Plug Screw

Drain Plug Screw

Washer 12 mm

Drain Plug Screw Washer 14 mm

Hex. Flange Screw M6 X 12

Hex. Flange Screw M6 X 18

Hex. Flange Screw M6 X 50

Hex. Flange Screw M6 X 70

Steel Ball

Gear Fixing Bolt

METER GEAR - Call your local BRP dealership

Thrust Washer

OIL SEAL - Call your local BRP dealership

Sealing Bolt

Sealing Washer
