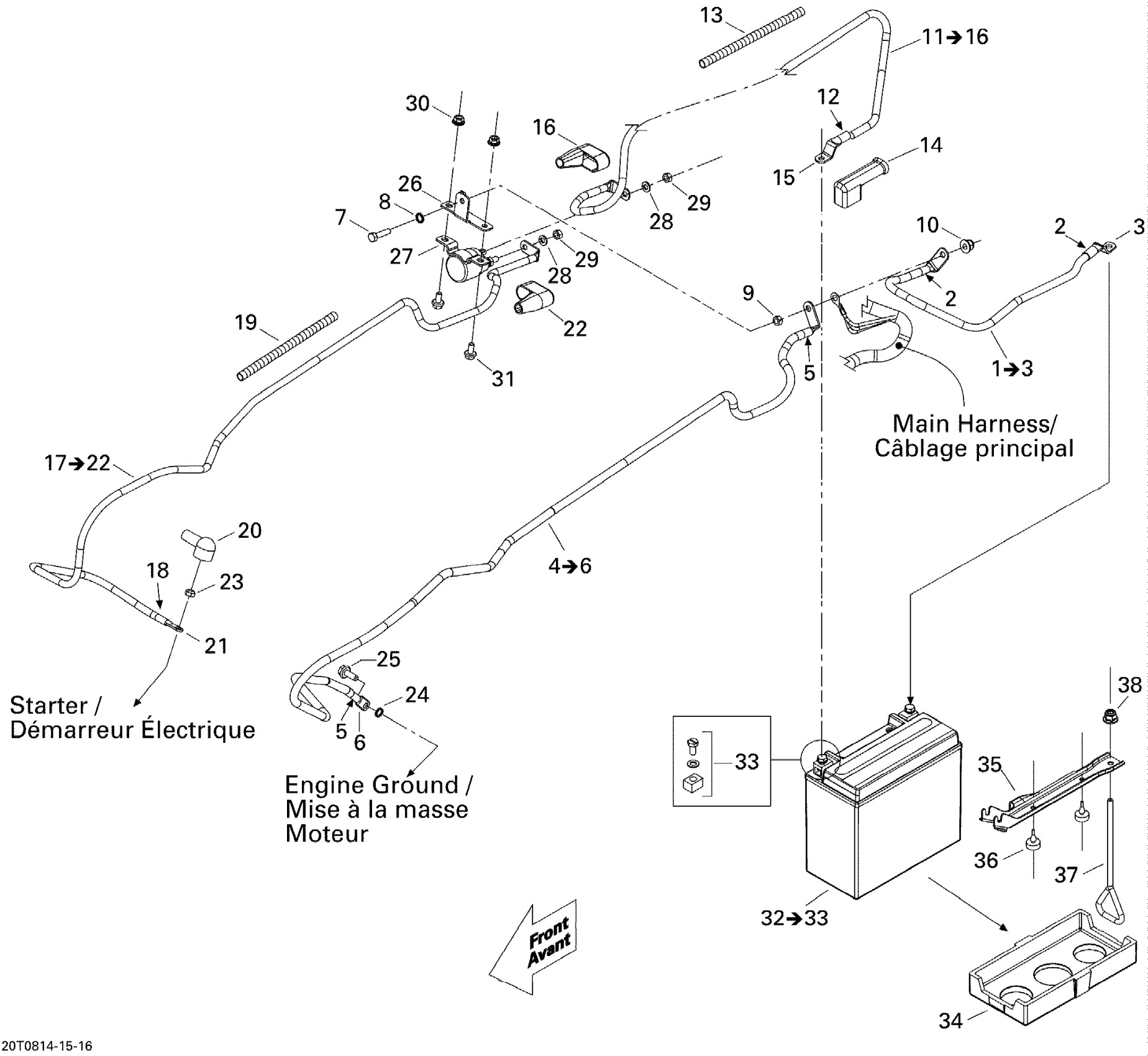

Can-Am Renegade 800 X, 2008 10- Electrical System Diagram

#

Description
Price

1

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.49

2

Was 710000483 Heat Shrink Tubing

219704447

$78.99

3

Open Barrel | STD Models

710000518

$11.12

4

GROUND CABLE ASS'Y - Call your local BRP dealership | Includes 5 to 8

710000831

Unavailable

5

Was 710000483 Heat Shrink Tubing

219704447

$78.99

6

Open Barrel

710000530

Unavailable

7

Hex. Screw M6 X 25

207162544

$1.15

8

External Serrated Lock Washer 6 mm

234461608

$1.15

9

Hex. Nut M6

232061414

$0.53

10

Hex. Flange Nut M6

233061414

$1.68

11

Positive Cable Ass'y | STD, Includes 22 to 28

710001822

$30.99

12

Was 710000483 Heat Shrink Tubing

219704447

$78.99

13

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

14

Protector Cap | STD Models

710001829

$9.95

15

Open Barrel | STD Models

710000518

$11.12

16

Protector Cap | STD

710001817

$11.12

17

POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 30 to 36

710001818

$37.99

18

Was 710000483 Heat Shrink Tubing

219704447

$78.99

19

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

20

Protector Cap

710000526

$10.99

21

Open Barrel

710000530

Unavailable

22

Protector Cap | STD

710001817

$11.12

23

Elastic Stop Nut M6

232561414

$0.55

24

External Serrated Lock Washer 6 mm

234461608

$1.15

25

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

26

SOLENOID SUPPORT - Call your local BRP dealership

710001260

Unavailable

27

Starter Relay

710007777

$48.49

28

Lock Washer Helical M6

234161601

$1.15

29

Hex. Nut M6

232061600

$1.15

30

Hex. Flange Nut M6

233061414

$1.68

31

Hex. Flange Screw M6 X 12

207661244

$2.11

32

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

33

Battery Bolt Kit

250000282

$7.29

34

INSULATOR PAD - Call your local BRP dealership

710000279

Unavailable

35

FIXATION PLATE - Call your local BRP dealership

710001019

Unavailable

36

Rubber Stopper

708000759

$4.19

37

Hook

710001107

$42.49

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
