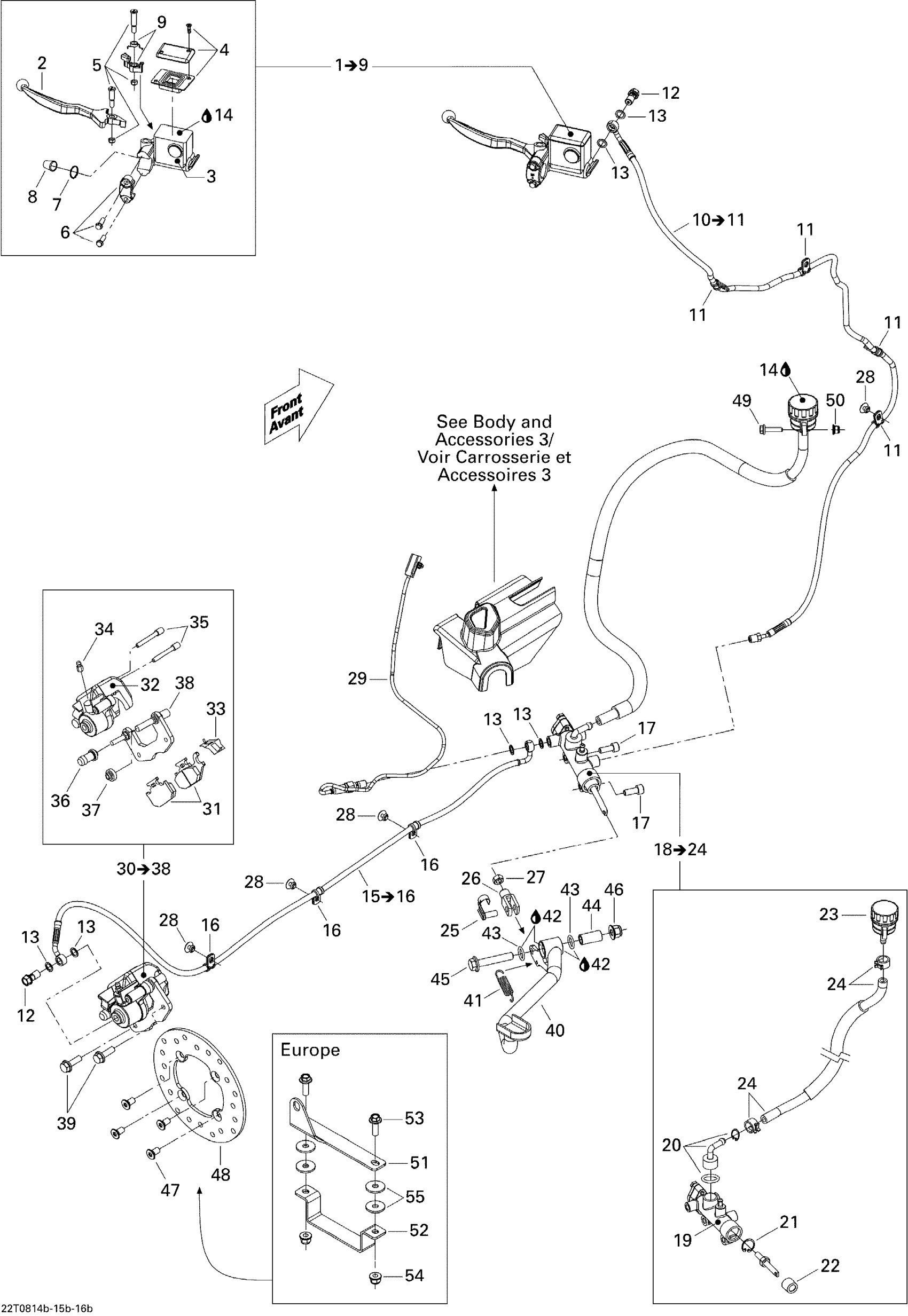

Can-Am Renegade 800 X, 2008 06- Hydraulic Brakes, Rear Diagram

#

Description
Price

1

LH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 1 to 9

705600845

Unavailable

2

Lever Arm

705600243

$54.99

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Cap Set

705600084

$24.99

5

Brake Lever Bolt Kit

705600246

$14.81

6

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

7

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

8

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

9

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

10

FRONT HOSE - Call your local BRP dealership | Includes 10 to 11

705600598

$94.14

11

Clamp

293650256

$5.49

12

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

13

Copper Washer

705601628

$4.44

14

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

15

Rear Hose | Includes 34 to 35

705600929

$90.99

16

Clamp

293650256

$5.49

17

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

18

MASTER CYLINDER - Call your local BRP dealership | Includes 37 to 45

705600543

Unavailable

19

Piston Set

705600255

$64.49

20

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

21

Circlip

705600068

Unavailable

22

Compression Boot

705600090

Unavailable

23

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

24

OIL HOUSING HOSE - Call your local BRP dealership

705600262

Unavailable

25

Pin Kit

219702305

$34.99

26

Yoke

705600100

Unavailable

27

Hex. Nut M8

232081414

$0.72

28

Pop Rivet 3/16"

390406500

$0.88

29

Switch

710003837

$42.49

30

Rear Caliper | Includes 39 To 47

705600599

$301.99

31

Brake Pad Kit

705600014

$51.99

32

Piston Set

705600078

$38.99

33

Spring

705600079

$15.81

34

Bleeding Screw

705600080

$16.87

35

Pin Set (2)

705600081

$20.49

36

Compression Boot

705600082

$10.06

37

Compression Boot

705600083

$10.06

38

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

39

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

40

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

Unavailable

41

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

42

Synthetic Grease, 400 G

293550010

Unavailable

43

O-RING - Call your local BRP dealership

293300053

Unavailable

44

SPACER - Call your local BRP dealership

705600283

Unavailable

45

Hex. Flange Screw M10 X 55

207605544

$3.38

46

Hex. Flange Elastic Nut M10

233201414

$1.58

47

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

48

Disk Brake

705600604

$50.99

49

Hex. Flange Screw M6 X 25

207662544

$0.64

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

51

Support | Europe

705201540

Unavailable

52

BRACKET - Call your local BRP dealership

705000416

Unavailable

53

Hex. Flange Screw M8 X 25

207682544

$1.35

54

Hex. Flange Elastic Nut M8

233281414

$1.47

55

Washer

211200041

$3.17
