Description

Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600593

Unavailable

2

Brake Pad Kit

705600004

$51.99

3

Piston Set

705600078

$38.99

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

RH Caliper Support

705600299

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600594

Unavailable

11

Brake Pad Kit

705600014

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

19

RH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 to 27

705600596

Unavailable

20

LEVER ARM - Call your local BRP dealership

705600629

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Cap Set

705600084

$24.99

23

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

SWITCH KIT - Call your local BRP dealership

705600086

Unavailable

28

FRONT HOSE - Call your local BRP dealership | Includes 28 to 29

705600597

Unavailable

29

Clamp

293650256

$5.49

30

Hex. Flange Screw M6 X 16

210261650

$1.67

31

Flat Washer

224061121

$0.53

32

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

33

Copper Washer

705601628

$4.44

34

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

35

Pop Rivet 3/16"

390406500

$0.88

36

Hex. Flange Screw M6 X 10

210261040

$1.48

37

Hex. Flange Screw M6 X 25

207662544

$0.64

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

39

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

40

Disk Brake

705600604

$50.99

41

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

42

BRACKET - Call your local BRP dealership

705600620

Unavailable

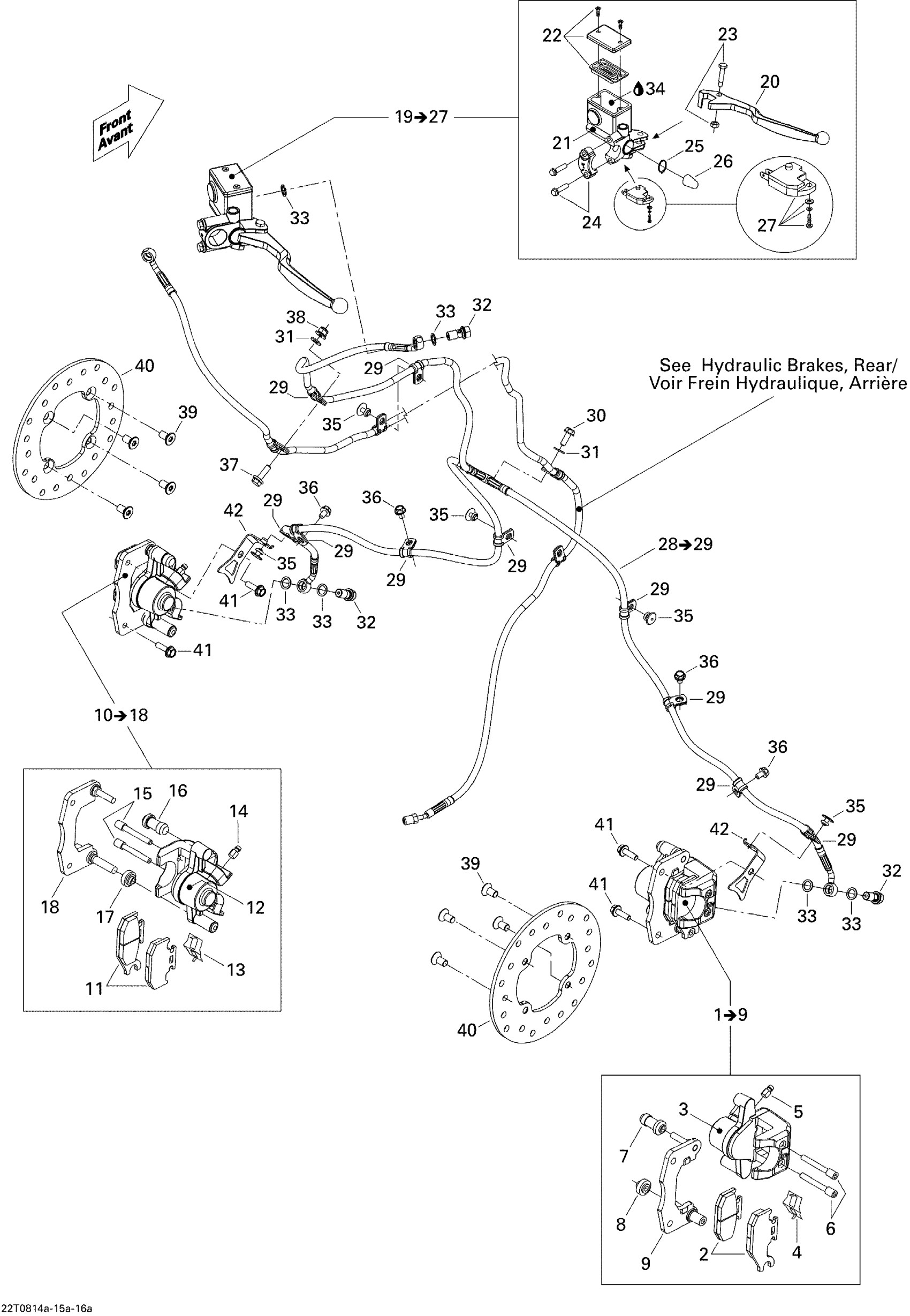

Can-Am Renegade 800 X, 2008 06- Hydraulic Brakes, Front Diagram

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

Brake Pad Kit

Piston Set

Spring

Bleeding Screw

Pin Set (2)

Compression Boot

Compression Boot

RH Caliper Support

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

Brake Pad Kit

Piston Set

Spring

Bleeding Screw

Pin Set (2)

Compression Boot

Compression Boot

LH CALIPER SUPPORT - Call your local BRP dealership

RH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 to 27

LEVER ARM - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

Cap Set

BOLT KIT - Call your local BRP dealership

BRACKET KIT - Call your local BRP dealership

CIRCLIP - Call your local BRP dealership

COMPRESSION BOOT - Call your local BRP dealership

SWITCH KIT - Call your local BRP dealership

FRONT HOSE - Call your local BRP dealership | Includes 28 to 29

Clamp

Hex. Flange Screw M6 X 16

Flat Washer

Banjo Bolt (M10 x 1.25 thread)

Copper Washer

HYDRAULIC OIL - Call your local BRP dealership

Pop Rivet 3/16"

Hex. Flange Screw M6 X 10

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Torx Screw M8 X 16, Scotch Grip

Disk Brake

Hex. Flange Screw M8 X 20, Scotch Grip

BRACKET - Call your local BRP dealership
