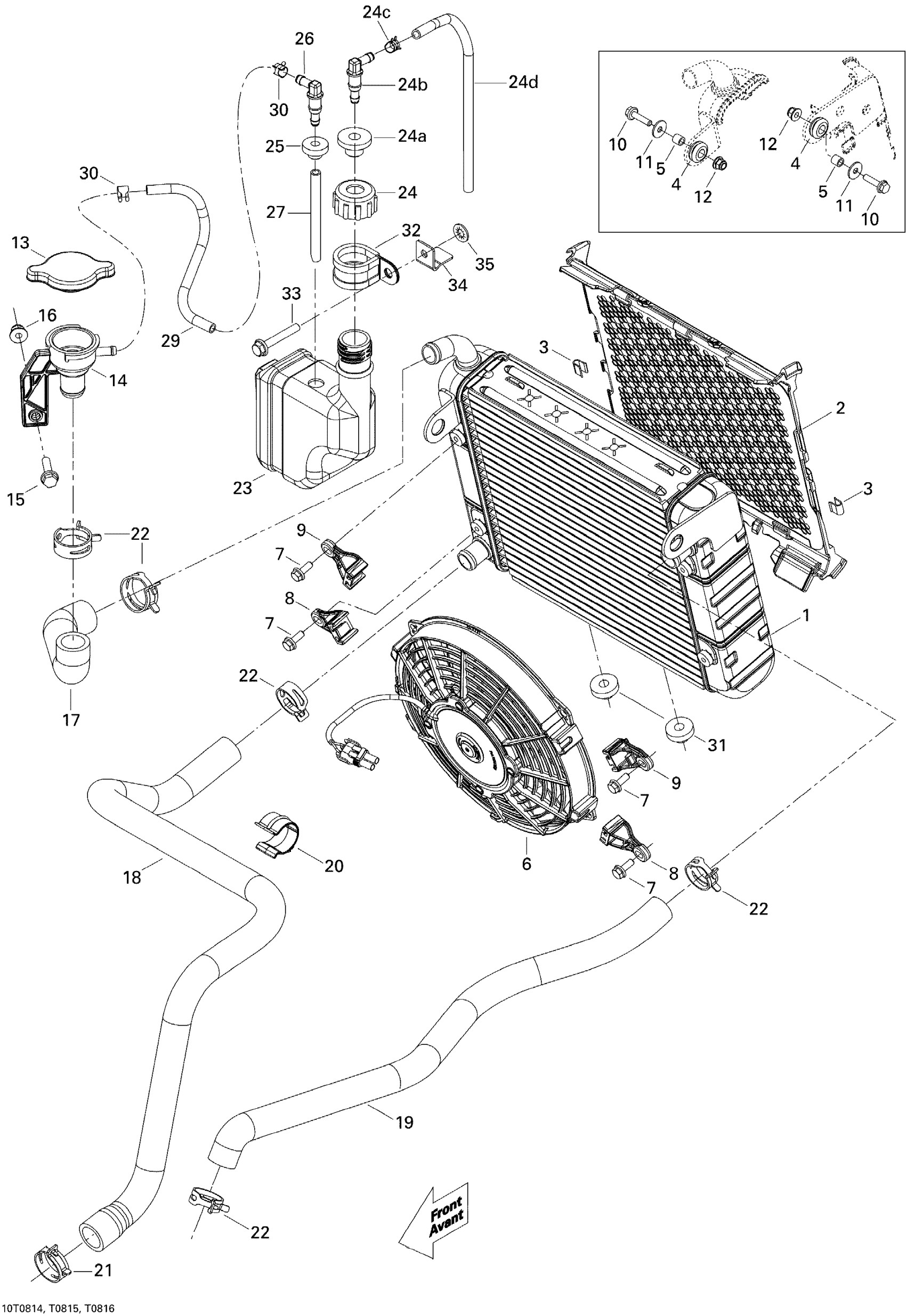

Can-Am Renegade 500, 2008 01- Cooling System Diagram

#

Description
Price

1

RADIATOR - Call your local BRP dealership

709200411

Unavailable

2

RADIATOR PROTECTOR - Call your local BRP dealership | Includes 34, 35

709200187

Unavailable

3

Clip

414479100

$1.90

4

Grommet

709000582

$4.69

5

Bushing

293900105

$7.65

6

Fan

709200124

$279.99

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

8

FAN SUPPORT - Call your local BRP dealership

709200125

Unavailable

9

FAN SUPPORT - Call your local BRP dealership

709200126

Unavailable

10

Hex. Flange Screw M6 X 25

207662544

$0.64

11

Flat Washer

250200082

$0.42

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Radiator Pressure Cap

709200207

$25.49

14

Filler Neck

709200179

$18.49

15

Hex. Flange Screw M6 X 25

207662544

$0.64

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

FILLER NECK HOSE - Call your local BRP dealership

709200180

Unavailable

18

Outlet Radiator Hose

709200181

Unavailable

19

INLET HOSE - Call your local BRP dealership

709200182

Unavailable

20

Retainer

275500526

$4.55

21

Norma Spring Clamp

293650108

$4.12

22

Norma Spring Clamp

293650109

$4.12

23

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

24

Cap

709200586

$11.11

24a

Grommet

293830136

$10.07

24b

Male Connector

414580700

$4.12

24c

Spring Clamp

414554800

$0.88

24d

Polyurethane Hose 10000Mm Long

219704410

$56.99

25

Grommet

709200285

$9.69

26

Elbow Male Connector

414580600

$4.23

27

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

29

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

30

Spring Clamp

414554800

$0.88

31

Grommet

709200285

$9.69

32

Hose Anchor

709200036

$11.12

33

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

34

BRACKET - Call your local BRP dealership

709200209

Unavailable

35

Push Nut

732610072

$2.19
