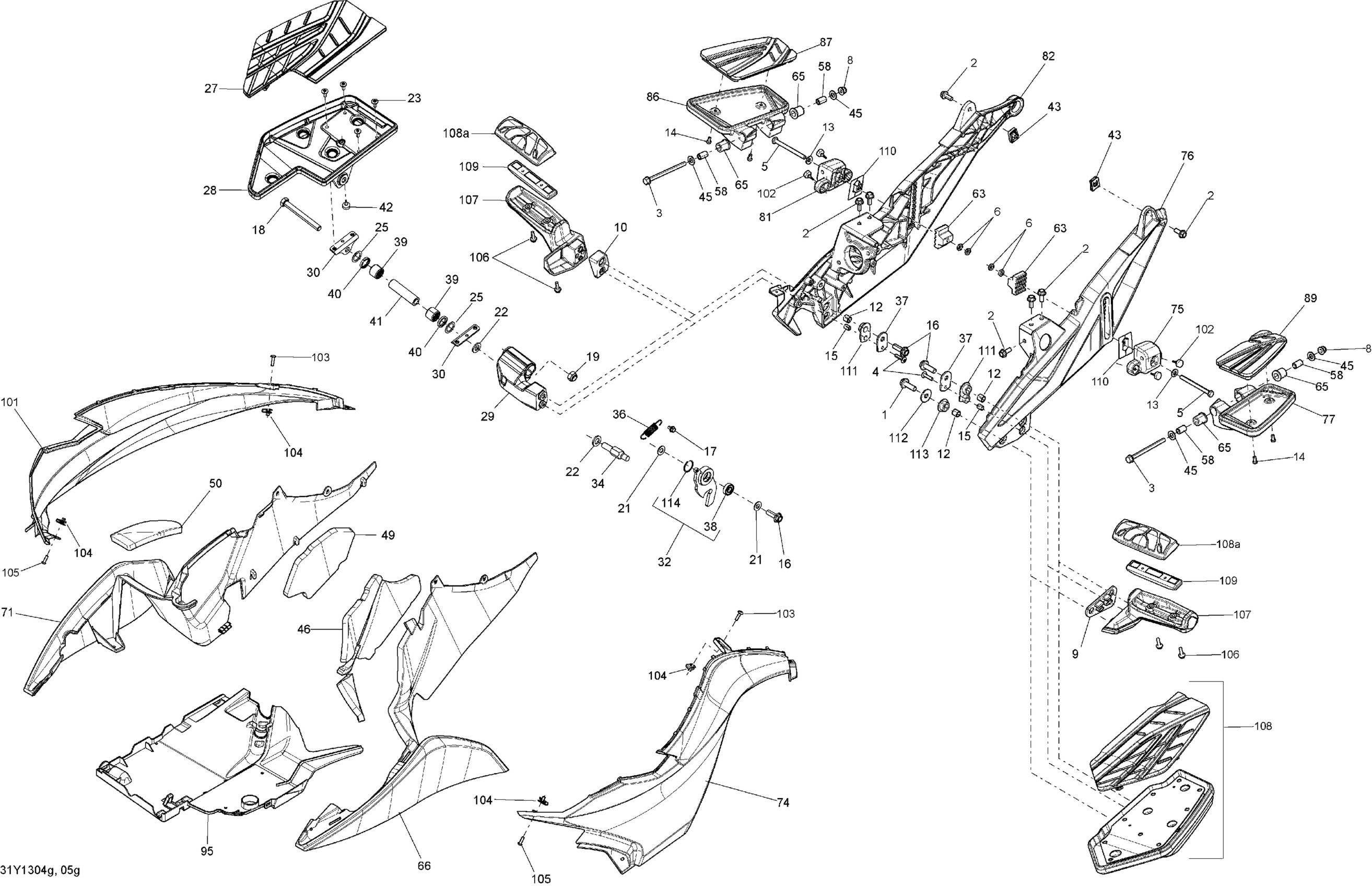

Can-Am Spyder ST_STS SE5, 2013 09- Body And Accessories G Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 30

207503044

$7.51

2

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

3

Hex. Flange Screw M8 X 110

230681034

$4.44

4

Torx Truss Screw M6 X 25

250000807

$2.11

5

Hex. Screw M8 x 90

207189060

$3.49

6

Hex. Jam Nut M8

232180600

$0.67

8

Hex. Flange Elastic Nut M8

233281434

$2.11

9

LH RUBBER BUSHING - Call your local BRP dealership | Model-ST STD

705006423

Unavailable

10

RH RUBBER BUSHING - Call your local BRP dealership | Model-ST STD

705006424

Unavailable

12

BUSHING - Call your local BRP dealership | Model-ST STD

705006555

Unavailable

13

Spring Washer M8

234281704

$2.11

14

Allen Plastite Screw #12

250000099

$2.19

15

Bushing | Model-ST STD

705006696

$18.49

16

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

17

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

18

Hexagonal Screw M12 X 105

230020586

$7.51

19

Elastic Stop Nut M12

232521416

$1.69

21

Flat Washer 10 mm

234001410

$1.26

22

Flat Washer

234021430

$2.11

23

Torx Screw M6 X 16

250000223

$2.11

25

Plastic Washer 20MM | Model-RT LTD SE6

250200136

$8.25

27

RH Front Rubber Pad | Model-ST LTD SE5

705005333

$93.99

28

RH FRONT FOOTREST ASS'Y - Call your local BRP dealership | Model-ST LTD SE5

705005334

Unavailable

29

Pivot Support | Model-RT LTD SE6

705005723

$93.99

30

Pivot Bracket | Model-RT LTD SE6

705005861

$20.99

32

LATCH ASS'Y - Call your local BRP dealership | Model-ST LTD SE5

705008439

Unavailable

34

Latch Pin M12 X 30 | Model-RT LTD SE6

705006428

$27.99

36

Spring

705006533

$18.49

37

Retaining Plate | Model-RT LTD SE6

705006557

$10.49

38

Bearing

705600458

$19.99

39

Bearing

706000447

$12.69

40

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

41

Bushing

706000731

$15.82

42

Rubber Stopper

708000759

$4.19

43

Panel Nut M8 X 1.25

250100069

$4.29

45

Washer

503183800

$3.28

46

LH ROCKER PANEL FOAM - Call your local BRP dealership | Model-ST

518327010

$18.99

49

RH ROCKER PANEL FOAM - Call your local BRP dealership | Model-ST

518327011

Unavailable

50

RH LATERAL PANEL FOAM - Call your local BRP dealership

518327438

Unavailable

58

Bushing

705002153

$11.99

63

Adjuster Block

705003013

$43.99

65

Rubber Bushing

705003018

$10.49

66

LH ROCKER PANEL - Call your local BRP dealership | Model-ST

705005266

$77.99

71

RH Rocker Panel | Model-ST

705005267

$84.99

74

Steel Black RH Side Console | Model-ST S Model-Steel Black Met.

705007668

$259.99

74

RH SIDE CONSOLE, MAGNESIUM - Call your local BRP dealership | ST Magnesium

705007674

Unavailable

74

YELLOW RH SIDE CONSOLE - Call your local BRP dealership | Model-Circuit Yellow Met.

705007682

Unavailable

75

LH Sliding Block | Model-ST STD

705005337

Unavailable

75

Black LH Sliding Block | Model-ST LTD

705006799

$60.99

76

LH REAR FOOT SUPPORT - Call your local BRP dealership | Model-ST LTD SE5

705006796

Unavailable

77

LH REAR FOOTREST - Call your local BRP dealership | Model-ST LTD SE5

705006798

$149.99

81

BLACK RH SLIDING BLOCK - Call your local BRP dealership | Model-ST LTD

705006801

Unavailable

82

BLACK RH FOOTREST SUPPORT - Call your local BRP dealership | Model-ST LTD SE5

705007976

Unavailable

86

Black RH Footrest Support | Model-ST LTD SE5

705006800

$134.99

87

RH REAR RUBBER PAD - Call your local BRP dealership | Model-ST

705005350

Unavailable

89

LH REAR RUBBER PAD - Call your local BRP dealership | Model-ST

705005351

Unavailable

95

LH DEFLECTOR PANNEL - Call your local BRP dealership | Model-ST

705005413

$24.99

101

Bare, RH Console | Model-ST S Steel Black Met.

705007667

Unavailable

101

LH SIDE CONSOLE, MAGNESIUM - Call your local BRP dealership | ST-S Magnesium

705007676

Unavailable

101

RH LATERAL CONSOLE. JAUNE - Call your local BRP dealership | Model-Circuit Yellow Met.

705006727

Unavailable

102

Rubber Stopper

708000759

$4.19

103

Torx Screw M5 X 20

250000724

$1.69

104

Panel Nut M5 X 0.8

250000958

$4.23

105

Socket Screw M5 X 16 F/ | Model-ST

250000661

$0.90

106

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

107

LH Front Footrest Ass'y | Model-ST LTD SE5

705005330

$204.99

107

LH FRONT FOOTREST ASS'Y - Call your local BRP dealership | Model-ST S SM5

705006793

Unavailable

107

RH FRONT FOOTREST ASS'Y - Call your local BRP dealership | Model-ST S SM5

705006797

Unavailable

108

LH FRONT RUBBER PAD - Call your local BRP dealership | Model-ST LTD SE5

705005329

$84.99

108a

LH FRONT RUBBER PAD - Call your local BRP dealership | Model-ST STD

705006297

Unavailable

109

VIBRATION DAMPENER - Call your local BRP dealership | Model-ST STD

705006388

Unavailable

110

Lock Plate | Model-ST

705007473

$19.49

111

CUSHION - Call your local BRP dealership | Model-ST STD

705006556

Unavailable

112

Flat Washer 10 mm, Stainless

234002600

$2.22

113

CUSHION - Call your local BRP dealership | Model-ST STD

705006554

Unavailable

114

Not Available As Spare Parts

XXX

Unavailable
