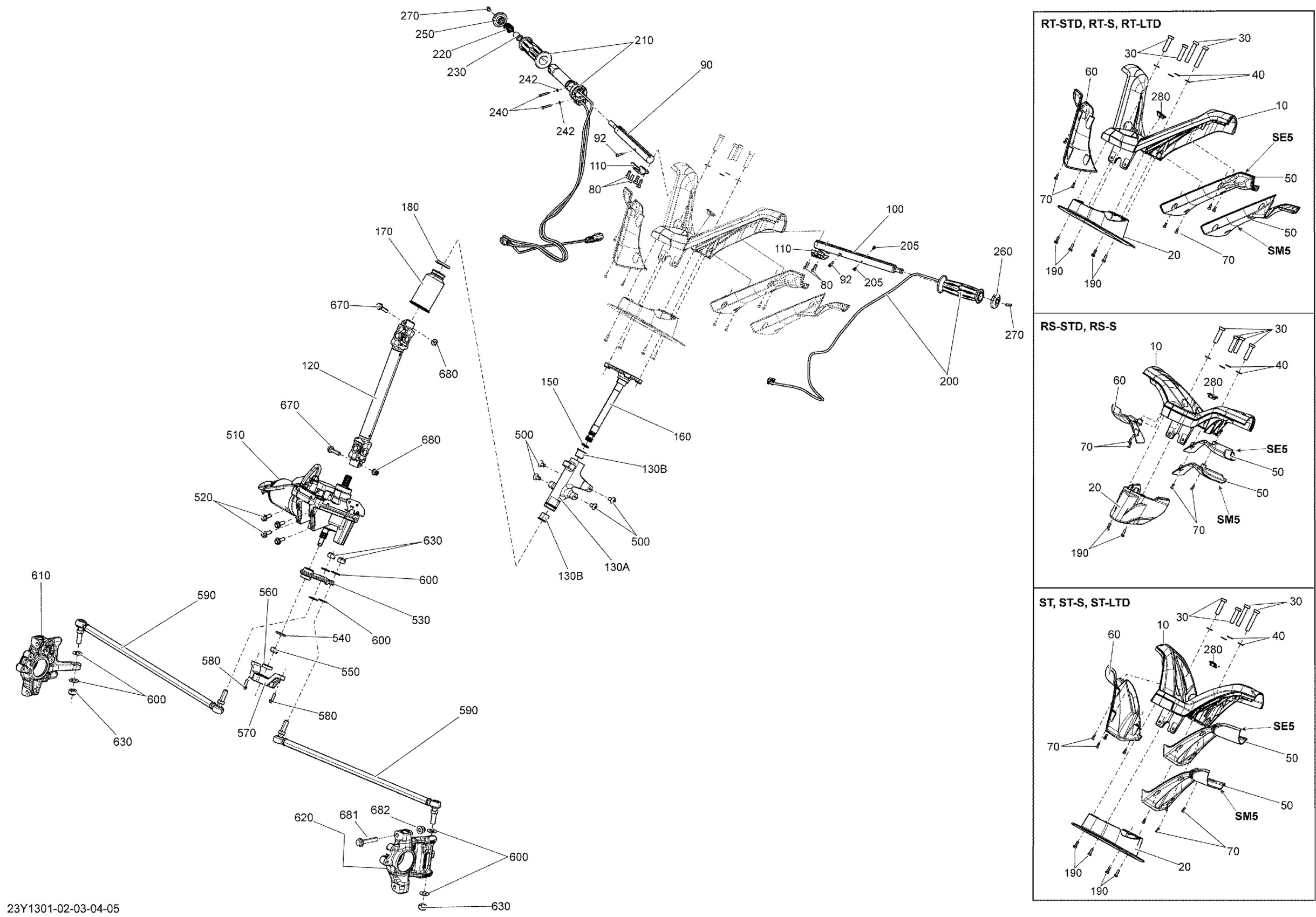

Can-Am Spyder RT_RTS SM5, 2013 07- Steering SM5 Diagram

CRYSTAL SILVER HANDLEBAR - Call your local BRP dealership | Model-RT STD

709400907

$144.99

Carbon Black, Handlebar, Texture | Model-RT LTD

709401919

$206.49

Handlebar Central Cover | Model-RT

709400579

$17.49

Thin Socket Screw M10 X 40, Scotch Grip | RS

250000456

$7.51

Stainless Flat Washer, 10 mm

250200105

$2.11

LH Steering Cover | Model-RT M-3

709400741

$17.49

RH Steering Cover | Model-RT

709400578

$17.49

Screw-Socket Hd.DIN.912 | RS

205041054

$1.90

Socket Screw M6 X 16, Scotch Grip

205561644

$1.25

RH HANDLEBARS - Call your local BRP dealership

709401150

Unavailable

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.11

LH Handlebars

709401152

$61.49

Handlebar Clamp

709400631

$60.49

Lower Steering Column | Model-RT

709401411

$154.99

Steering Column Support | Model-RT, Include Cushions

709401214

$109.99

Not Available As Spare Part - Friction Washer

Unavailable

O-Ring

709000089

$15.89

Steering Colum, Black

709401682

$159.99

Bellows

709400790

$13.49

Tie-Rap 180 mm

414115200

$0.11

Hex. Forming Screw M5 X 16

210251650

$1.15

Heating Handle Grip

709400625

$195.99

Torx Cutting Screw, M4 X 10

250000453

$3.89

Heated Throttle Grip

709402720

$289.99

Spring

709401937

$19.99

Bushing End Piece Kit

219800381

$39.99

Socket Screw, M4 X 25

205042594

$2.11

Flat Washer 4 mm

234040600

$0.55

Bushing End Piece Kit

219800381

$39.99

Handlebar End Piece LH

709400793

$27.99

Screw-Socket Hd.Din.912

205061054

$1.90

CRYSTAL SILVER CAP - Call your local BRP dealership | RS STD

709400680

Unavailable

Deep Black Cap | Model-RS S

709400923

$14.49

Torx Truss Screw M8 X 16

250000746

$3.38

POWER STEERING MODULE - Call your local BRP dealership

709401061

Unavailable

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

PITMAN ARM - Call your local BRP dealership

709401417

Unavailable

Flat Washer, 12 mm

250200113

$4.44

Hex. Elastic Hex. Nut M12

250100089

$0.46

Seal Ring

293200113

$4.59

SENSOR SUPPORT - Call your local BRP dealership

709400455

Unavailable

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Tie Rod Ass'y

709401821

$158.99

Hardened Washer

706200281

$2.85

RH Knuckle

709401864

$190.49

LH Knuckle

709401865

$195.99

Hex. Elastic Hex. Nut M12

250100089

$0.46

Hex. Flange Screw M8 X 35

250001021

$4.44

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw

207605534

$2.11

Hex. Flange Elastic Nut M10

233201436

$2.11
