Description

Price

1

Hex. Flange Screw S.Grip M12 X 30

207523036

$7.19

2

SCREW-SOCKET S. GRIP DIN.912 - Call your local BRP dealership

205583044

Unavailable

2a

Washer

506151245

$0.93

3

Hex. Flange Screw M6 X 12

210261250

$1.90

4

Hexagonal Head Screw

210262050

$2.11

5

Flat Washer

224061121

$0.53

6

Hex. Nut M8

232081414

$0.72

7

Torx Screw M6 X 16

250000755

$0.87

8

Hex. Flange Screw M10 X 25

250001054

$14.21

9

Pin

250400062

$4.54

10

HOSE 8MM 3000MM LONG - Call your local BRP dealership

219704417

Unavailable

11

Crimp Clamp, 15.3-706R

293650047

$3.29

12

Cotter Pin

371800700

$1.01

13

Banjo Bolt

414920500

$8.68

14

Washer

414920600

$1.90

15

Bracket

415052400

$4.39

16

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

20

Yoke

705600100

Unavailable

21

Tandem Cylinder Master

705600722

$369.99

25

Piston Rod

705600468

$23.49

29

Bellow

705600716

$12.10

32

Brake Fluid Reservoir Ass'y

705601366

$119.99

32a

Cap And Diaphragm Kit

219800058

$19.49

32b

Not Available As Spare Part - Friction Washer

Unavailable

32c

Oil Level Sensor

705601073

$54.99

38

Rear Caliper | Includes 90 to 90d

705600989

$497.99

38a

Brake Pad Kit

219800239

$79.49

38b

Spring/Pin/Clip Kit

219800240

$35.99

38c

Rear Cable Support Kit

219800241

$41.49

38d

Rear Dust Cover

219800242

$32.99

39

Rear Brake Disk

705601632

$244.99

40

Rear Caliper Support

705601262

$55.99

41

Banjo Bolt/ Bleeder

705601201

$19.99

41a

Bleeder Bolt Cap

705601190

$4.44

42

Anchorage Tube

705601987

$5.18

43

Tandem Rigid Tube | Includes 400 to 400a

705601157

$31.99

44

Tandem Rigid Tube | Includes 410 to 410a

705601158

$31.99

45

Rear Brake Rigid Tube

705601159

$31.99

47

Trim 1000Mm Long

219704354

$15.99

48

Connector Holder

710002033

$3.39

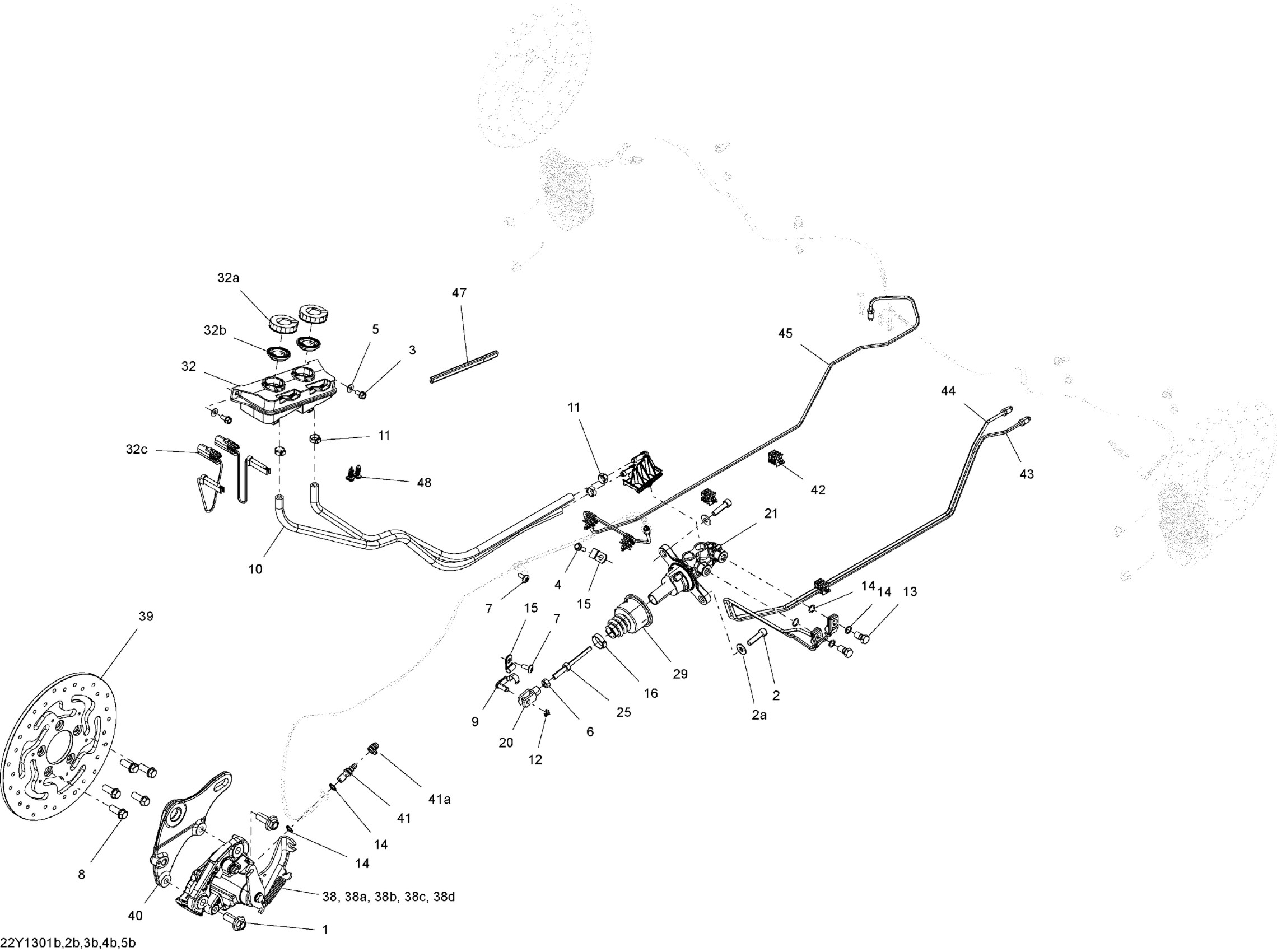

Can-Am Spyder RT_RTS SM5, 2013 06- Hydraulic Brake, Rear Diagram

Hex. Flange Screw S.Grip M12 X 30

SCREW-SOCKET S. GRIP DIN.912 - Call your local BRP dealership

Washer

Hex. Flange Screw M6 X 12

Hexagonal Head Screw

Flat Washer

Hex. Nut M8

Torx Screw M6 X 16

Hex. Flange Screw M10 X 25

Pin

HOSE 8MM 3000MM LONG - Call your local BRP dealership

Crimp Clamp, 15.3-706R

Cotter Pin

Banjo Bolt

Washer

Bracket

Oeticker Gear Clamp, 25.6-706R

Yoke

Tandem Cylinder Master

Piston Rod

Bellow

Brake Fluid Reservoir Ass'y

Cap And Diaphragm Kit

Not Available As Spare Part - Friction Washer

Oil Level Sensor

Rear Caliper | Includes 90 to 90d

Brake Pad Kit

Spring/Pin/Clip Kit

Rear Cable Support Kit

Rear Dust Cover

Rear Brake Disk

Rear Caliper Support

Banjo Bolt/ Bleeder

Bleeder Bolt Cap

Anchorage Tube

Tandem Rigid Tube | Includes 400 to 400a

Tandem Rigid Tube | Includes 410 to 410a

Rear Brake Rigid Tube

Trim 1000Mm Long

Connector Holder
