Description

Price

1

Domed Nut M6

232361493

$2.11

2

Domed Nut M6

232361493

$2.11

3

Torx Truss Screw M6 X 12

250000767

$2.00

4

Torx Truss Screw M6 X 12

250000767

$2.00

6

Check Valve

275500941

$25.99

7

Oetiker Gear Clamp

293650025

$3.09

8

Oetiker Clamp | Europe

293650030

$5.19

5

Oetiker Clamp | Europe

293650030

$5.19

9

Oetiker Clamp

293650140

$2.69

10

Oetiker Clamp

293650186

$3.99

12

Tubing 16 Mm 1000Mm Long

219704408

$7.49

13

Tubing 16 Mm 1000Mm Long

219704408

$7.49

14

Tubing 16 Mm 1000Mm Long

219704408

$7.49

15

Panel Fastener

518321954

$7.69

16

Vapor Canister

709000090

$90.99

11

Fuel Filter

513034047

$21.99

17

Fuel Filter

513034047

$21.99

18

Bleed Valve

709000443

$73.99

19

Air Filter

709000524

$45.99

20

Reflective Sheet

709000564

$11.99

22

Hose Support

709000612

Unavailable

25

FORMED HOSE - Call your local BRP dealership

709000614

Unavailable

26

FORMED HOSE - Call your local BRP dealership

709000616

Unavailable

27

FORMED HOSE - Call your local BRP dealership

709000619

Unavailable

28

FORMED HOSE - Call your local BRP dealership

709000621

Unavailable

29

FORMED HOSE - Call your local BRP dealership

709000670

Unavailable

21

FUEL PRESSURE REGULATOR - Call your local BRP dealership

709000678

Unavailable

23

Female Quick Fitting Ass'y

709000684

$15.49

24

Quick Connect Pipe Fitting

293710192

$12.49

30

Flow Reducer

709000705

$6.09

31

HOSE - Call your local BRP dealership

709000730

Unavailable

32

Formed Hose

709000731

$16.49

33

FORMED HOSE - Call your local BRP dealership

709000733

Unavailable

34

Hose Support

709000734

Unavailable

35

Hose 3000Mm Long

219704612

$84.99

36

Hose 6.35Mm 5000Mm Long

219704611

$194.99

37

CONNECTOR - Call your local BRP dealership

709000750

Unavailable

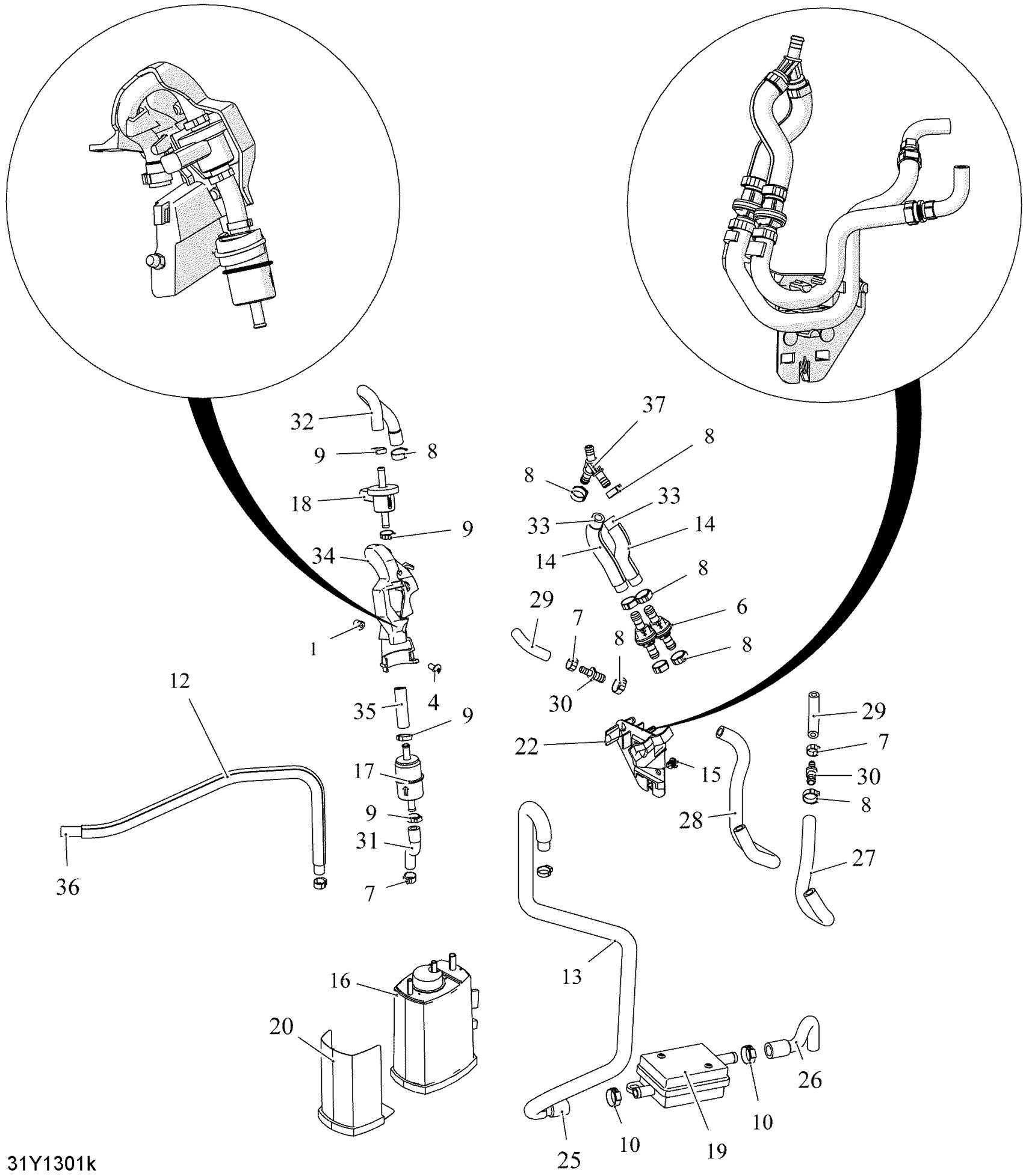

Can-Am Spyder RT_RTS SE5, 2013 02- EVAP System - CARB (Heat Management Kit) Diagram

Domed Nut M6

Domed Nut M6

Torx Truss Screw M6 X 12

Torx Truss Screw M6 X 12

Check Valve

Oetiker Gear Clamp

Oetiker Clamp | Europe

Oetiker Clamp | Europe

Oetiker Clamp

Oetiker Clamp

Tubing 16 Mm 1000Mm Long

Tubing 16 Mm 1000Mm Long

Tubing 16 Mm 1000Mm Long

Panel Fastener

Vapor Canister

Fuel Filter

Fuel Filter

Bleed Valve

Air Filter

Reflective Sheet

Hose Support

FORMED HOSE - Call your local BRP dealership

FORMED HOSE - Call your local BRP dealership

FORMED HOSE - Call your local BRP dealership

FORMED HOSE - Call your local BRP dealership

FORMED HOSE - Call your local BRP dealership

FUEL PRESSURE REGULATOR - Call your local BRP dealership

Female Quick Fitting Ass'y

Quick Connect Pipe Fitting

Flow Reducer

HOSE - Call your local BRP dealership

Formed Hose

FORMED HOSE - Call your local BRP dealership

Hose Support

Hose 3000Mm Long

Hose 6.35Mm 5000Mm Long

CONNECTOR - Call your local BRP dealership
