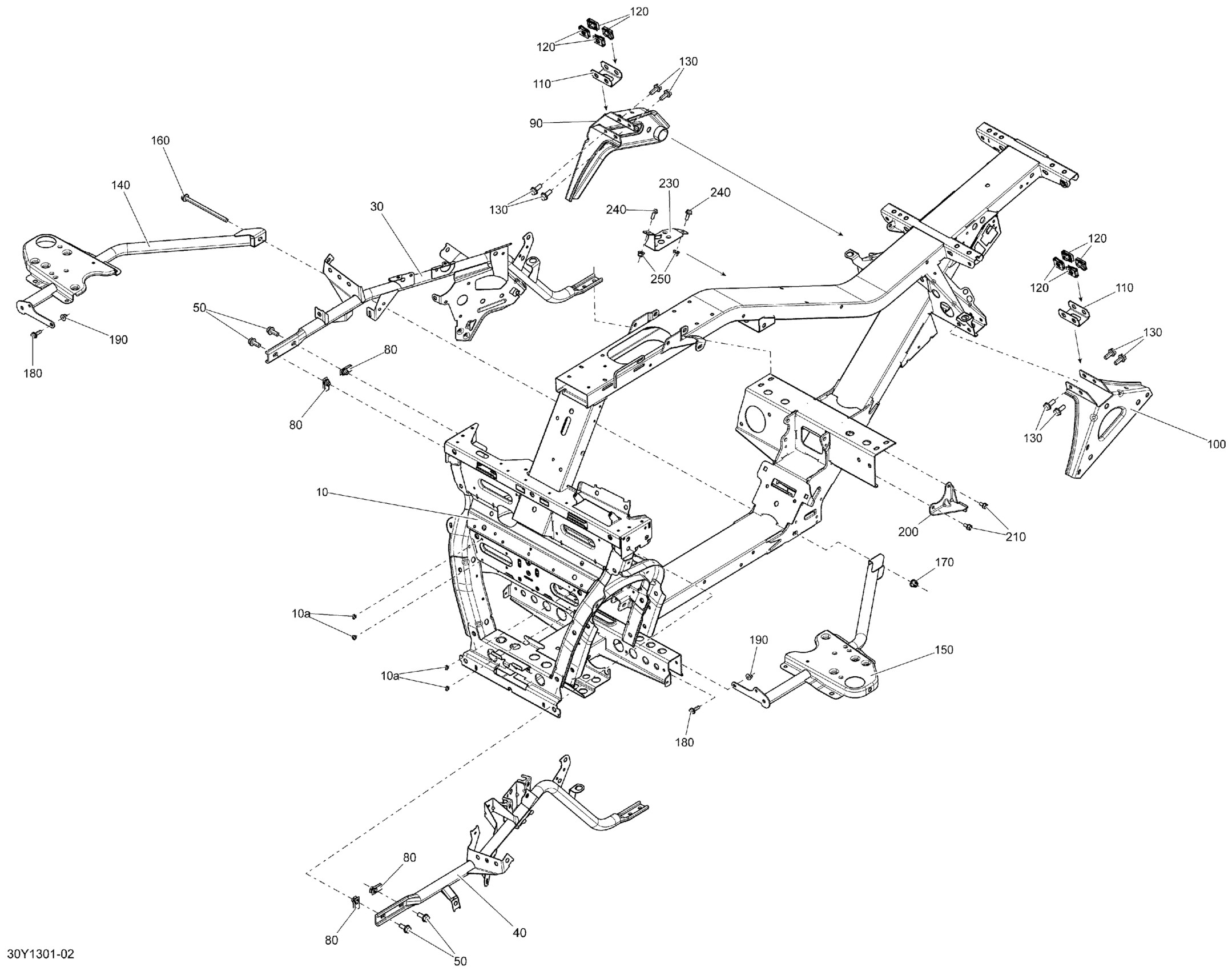

Can-Am Spyder RT Limited SE5, 2013 09- Frame Diagram

#

Description
Price

10

Frame

705204866

$1,389.99

10a

Pop Rivet 3/16"

390402200

$0.35

30

RH UPPER SIDE SUPPORT - Call your local BRP dealership

705202334

Unavailable

40

LH UPPER SIDE SUPPORT - Call your local BRP dealership

705202335

Unavailable

50

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

80

Panel Nut M8 X 1.25

250100118

$2.09

90

RH REAR SUPPORT - Call your local BRP dealership

705201873

Unavailable

100

Rear Support LH

705203969

$49.99

110

U-Bracket

705202484

$19.49

120

Panel Nut M8 X 1.25

250100069

$4.29

130

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

140

RH LOWER SIDE SUPPORT - Call your local BRP dealership

705202680

Unavailable

150

LH Painted Lower Lateral Support

705202626

$85.99

160

Hex. Flange Screw M8 X 130

230683034

$7.51

170

Hex. Flange Elastic Nut M8

233281414

$1.47

180

Hex. Flange Screw M6 X 20

207662044

$2.00

190

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

200

Stopper Swing Arm

705202587

$28.99

210

Hex. Flange Screw M6 X 12

210261250

$1.90

230

Latch Support

705205078

$15.49

240

Hex. Flange Screw M6 X 16

207661646

$1.36

250

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
