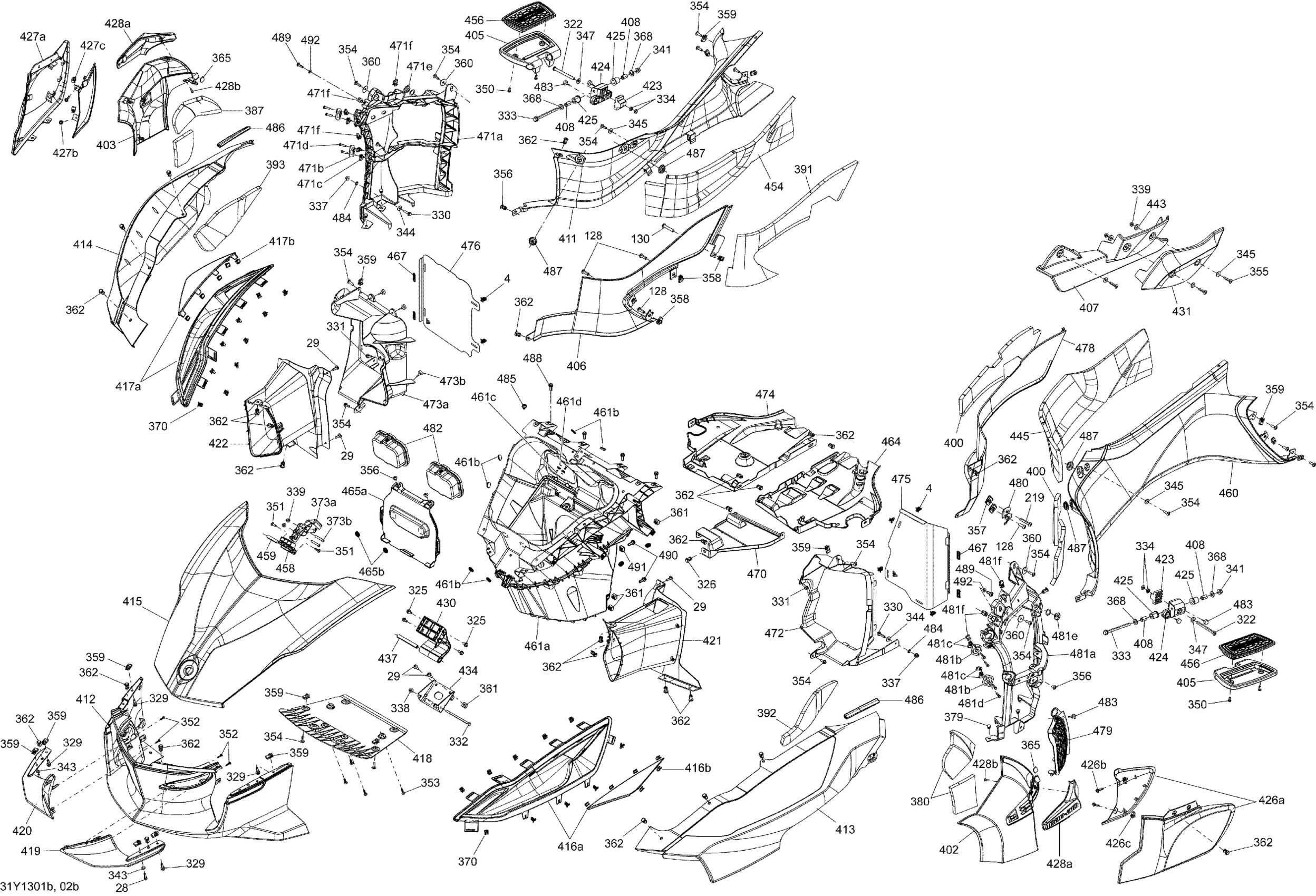

Can-Am Spyder RT Limited SE5, 2013 09- Body And Accessories Front Diagram

Edge Clip

517302785

$0.88

Socket Head Screw M6 X 20

205062044

$1.26

Torx Truss Screw M6 X 20

250000488

$2.11

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.22

Socket Screw M8 X 45

205484560

$2.11

Socket Screw M8 X 45

205484560

$2.11

Hex. Screw M8 x 90

207189060

$3.49

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Tuflok Plastic Rivet

293150230

$1.47

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Screw M6 X 16

210261650

$1.67

Hex. Screw M6 X 110

230061034

$2.11

Hex. Flange Screw M8 X 110

230681034

$4.44

Hex. Jam Nut M8

232180600

$0.67

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flange Elastic Nut M6

233261434

$4.44

Hex. Flange Elastic Nut M6

233261494

$1.58

Hex. Flange Elastic Nut M8

233281434

$2.11

Flat Washer 6 mm

234061410

$1.36

Flat Washer 6 mm

234062410

$0.77

Stainless Steel Flat Washer

234062670

$2.11

Spring Washer M8

234281704

$2.11

Allen Plastite Screw #12

250000099

$2.19

Torx Screw K50 X 16

250000720

$1.69

Torx-Truss Pt K40 X 16

250000759

$2.11

Truss Head Torx Screw K50 X 20

250000297

$2.11

Torx Truss Screw M6 X 20

250000350

$5.29

Stainless, Torx Screw M6 X 30

250000842

$2.11

Torx Screw M6 X 12

250000454

$4.44

Panel Nut M8 X 1.25

250100069

$4.29

Panel Nut M8

250100111

$4.29

Panel Nut M6 X 1.0

250100198

$2.11

Washer M6

250200029

$2.50

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

Tuflok Plastic Rivet

293150230

$1.47

Rubber Pad

293830143

$18.49

Washer

503183800

$3.28

Not Available As Spare Parts

XXX

Unavailable

Latch Ass'Y

705009310

$104.99

TORX SCREW M6 X 35 - Call your local BRP dealership

235563594

Unavailable

Panel Fastener

518321954

$7.69

Side Foam LH

705009311

$20.99

Side Foam RH

705009312

$20.99

RH LOWER PANEL FOAM - Call your local BRP dealership

518324756

Unavailable

LH FRONT PANEL FOAM - Call your local BRP dealership

518325855

Unavailable

RH FRONT PANEL FOAM - Call your local BRP dealership

518325854

Unavailable

LH Lower Panel Foam

518327490

$28.99

Vegas White Pearl, LH Side Panel | Model-White

705008999

$249.99

Bare, LH Side Panel | Model-Intense Red Pearl

705008991

$114.99

Panel_Body Lh B-342 | Model-Black Current Met

705009005

$249.99

Bare, RH Side Panel | Model-White

705008992

$114.99

Panel_Body Rh B-330 | Bronze Model

705009002

$249.99

PANEL_BODY RH B-342 - Call your local BRP dealership | Model-Black Current Met

705009006

Unavailable

Chrome, Rear Footboard | Model-RT LTD SE6

705011154

$224.99

RH LOWER PANEL - Call your local BRP dealership

705006187

Unavailable

Lower Belt Guard

705002092

$48.99

Bushing

705002153

$11.99

White RH Upper Lateral Panel | Model-White

705006177

$359.99

RH UPPER LATERAL PANEL, BRONZE - Call your local BRP dealership | Bronze Model

705006174

Unavailable

BLACK CURRENT RH UPPER LATERAL PANEL - Call your local BRP dealership | Model-Black Current Met

705006338

Unavailable

Bumper Cover, White

705006184

$359.99

BUMPER COVER, BRONZE - Call your local BRP dealership | Bronze Model

705006182

Unavailable

BUMPER COVER, CASSIS - Call your local BRP dealership | Black Model

705006343

Unavailable

LH FRONR PANNEL, WHITE - Call your local BRP dealership

705006195

Unavailable

LH FRONR PANNEL, BRONZE - Call your local BRP dealership | Bronze Model

705006192

Unavailable

LH FRONR PANNEL, CASSIS - Call your local BRP dealership | Black Model

705006352

Unavailable

RH Fronr Pannel, White

705006196

$259.99

PANEL_BODY FR B-330 - Call your local BRP dealership | Bronze Model

705006191

Unavailable

PANEL_BODY FR B-342 - Call your local BRP dealership | Black Model

705006353

Unavailable

Vegas White Pearl, Hood | Model-White

705006149

$629.99

HOOD , BRONZE - Call your local BRP dealership | Bronze Model

705006147

Unavailable

HOOD B-342 - Call your local BRP dealership | Model-Black Current Met

705006301

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Skid Plate

705002837

$68.99

LH FRONT WING, CHROME - Call your local BRP dealership

705007393

Unavailable

RH Front Wing, Chrome

705007394

$129.99

LH LOWER AIR DUCT - Call your local BRP dealership

705007446

Unavailable

RH LOWER AIR DUCT - Call your local BRP dealership

705007447

Unavailable

Adjuster Block

705003013

$43.99

Chrome Sliding Block | Model-RT LTD SE6

705008515

$154.99

Rubber Bushing

705003018

$10.49

LH Water Deflector Ass'y

705003759

$45.99

Hex.Flange Screw M5 X 20

207652044

$1.90

Panel Nut M5 X 0.8

250000958

$4.23

RH Water Deflector Ass'y

705003760

$45.99

Hex.Flange Screw M5 X 20

207652044

$1.90

Panel Nut M5 X 0.8

250000958

$4.23

Chrome, Side Panel Cap Kit (LH&RH) | Model-RT LTD

219400195

$104.99

Torx-Truss Pt K40 X 16

250000759

$2.11

Hood Arm

705003248

$54.99

Belt Guard Moulding

705009446

$35.99

Hood Pivot

705005434

$17.49

Spacer

705003322

$27.99

Adhesive Spacer

705003696

$4.19

LH FOAM - Call your local BRP dealership

705009313

Unavailable

RH FOAM - Call your local BRP dealership

705009314

Unavailable

REAR FOOTREST PAD - Call your local BRP dealership

705004150

Unavailable

Hood Guide

705004468

$11.99

Bushing

705004513

$10.49

White LH Lateral Panel | Model-White

705006178

$359.99

LH UPPER LATERAL PANEL, BRONZE - Call your local BRP dealership | Bronze Model

705006173

Unavailable

PANEL_BODY LH B-342 - Call your local BRP dealership | Model-Black Current Met

705006339

Unavailable

Storage Box Ass'y

705007219

$489.99

Dual Lock Velcro Washer 3/4"

293740028

$4.19

Rivet

390401400

$0.53

Flat Washer 3 mm, Stainless Steel

234031600

$0.55

LH Deflector Pannel

705004610

$27.99

Battery Cover Ass'y | Includes 130 to 130c

705018040

$29.99

Dual Lock Velcro Washer 3/4"

293740028

$4.19

Flat Clip

705004838

$7.73

LH Skid Plate

705005447

$19.99

RH Support

705009064

$124.99

Grommet Ass'y

705005055

$13.49

Panel Nut M5 X 0.8

250000958

$4.23

Hex. Screw M5 X 20

207152060

$1.47

Grommet

705003264

$4.09

Panel Nut M6 X 1.0

250100198

$2.11

LH RADIATOR MOULDING - Call your local BRP dealership

705005892

Unavailable

RH RADIATOR MOULDING - Call your local BRP dealership | Includes 473a to 473b

705006697

Unavailable

Rubber Stopper

708000759

$4.19

RH DEFLECTOR PANNEL - Call your local BRP dealership

705005911

Unavailable

LH PAINTED RADIATOR GRILLE - Call your local BRP dealership

705006593

Unavailable

RH PAINTED RADIATOR GRILLE - Call your local BRP dealership

705006594

Unavailable

LH Lower Pannel

705006820

$78.99

LH Side Grille

705007307

$30.99

Panel Support

705007375

$39.99

LH Support

705009063

$119.99

Grommet Ass'y

705005055

$13.49

Panel Nut M5 X 0.8

250000958

$4.23

Hex. Screw M5 X 20

207152060

$1.47

Grommet

705003264

$4.09

Panel Nut M6 X 1.0

250100198

$2.11

Fuse Cover Ass'y | Includes 140 to 140b

705011444

$28.49

Rubber Stopper

708000759

$4.19

Pressure Nut

250100163

$0.98

Rubber Bumper

293830005

$8.09

Seal Tray 1000Mm Long

219704368

$13.99

Oval Washer

705000321

$5.61

Hexagonal Head Screw

210262050

$2.11

Torx Truss Screw M6 X 20

250000350

$5.29

Hex. Flange Screw M6 X 20

207662044

$2.00

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

Plastic Washer

705003207

$0.80
