Description

Price

1

Hex. Flange Screw M10 X 25

207602544

$1.69

2

Hex. Flange Screw M6 X 16

207661644

$0.74

3

Hex. Flange Screw M6 X 25

207662544

$0.64

4

Flat Washer

224060201

$1.26

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Cable Retainer

275500527

$2.68

7

Oetiker Gear Clamp

293650025

$3.09

8

Oetiker Gear Clamp

293650025

$3.09

9

Oetiker Gear Clamp

293650025

$3.09

10

Oetiker Clamp

293650046

$2.89

11

Crimp Clamp, 15.3-706R

293650047

$3.29

12

Oetiker Clamp

293650125

$3.29

13

Grommet

709000582

$4.69

15

Tie-Rap 173 mm

293750009

$1.04

17

Spring Clamp

414415200

$0.88

18

Tubing 16 Mm 1000Mm Long

219704408

$7.49

19

Open Clamp

513033047

$5.19

20

Tubing 16 Mm 1000Mm Long

219704408

$7.49

21

Tubing

513033412

$4.44

22

Tubing 16 Mm 1000Mm Long

219704408

$7.49

23

Tubing 16 Mm 1000Mm Long

219704408

$7.49

24

Y Connector | CARB

513033672

$1.35

25

Vapor Canister

709000090

$90.99

26

Fuel Filter

513034047

$21.99

29

Fuel Tank

709000314

Unavailable

32

Bleed Valve

709000443

$73.99

33

Female Quick Fitting Ass'y

709000125

$15.49

34

Carpet

709000130

$14.49

35

BANJO FITTING - Call your local BRP dealership

709000137

$19.99

36

Quick Connect Pipe Fitting

293710192

$12.49

37

Reflective Sheet

709000157

$20.99

38

REFLECTIVE SHEET - Call your local BRP dealership

709000158

Unavailable

39

REFLECTIVE SHEET - Call your local BRP dealership

709000159

Unavailable

40

Bushing

709000162

$13.76

41

Seal Kit

219800248

$38.99

42

HOSE - Call your local BRP dealership

709000253

Unavailable

43

Hose

513033565

$30.99

44

FUEL LINE 7.9 MM, METER - Call your local BRP dealership | Replaced by 709000264 + 709000265

415129502

Unavailable

45

FUEL LINE 6.4 MM, METER - Call your local BRP dealership

415129501

Unavailable

46

Formed Hose

709000277

$28.99

47

Hose

709000652

$17.49

48

FUEL FILTER SUPPORT - Call your local BRP dealership

709000384

Unavailable

49

Hose

513033565

$30.99

50

Hose

513033565

$30.99

51

HOSE - Call your local BRP dealership

709000253

Unavailable

52

Hose

513033565

$30.99

53

Rollover Valve

709000413

$55.99

54

Fuel Cap

709000660

$15.49

57

FITTING_PIPE FLOW RESTRICTOR - Call your local BRP dealership | CARB

709000430

Unavailable

58

HOSE - Call your local BRP dealership

709000253

Unavailable

59

FUEL LINE 6.4 MM, METER - Call your local BRP dealership

415129501

Unavailable

29a

Pump Module

709000088

$625.49

60

RH Air Duct

709000490

Unavailable

60

LH Air Duct

709000491

Unavailable

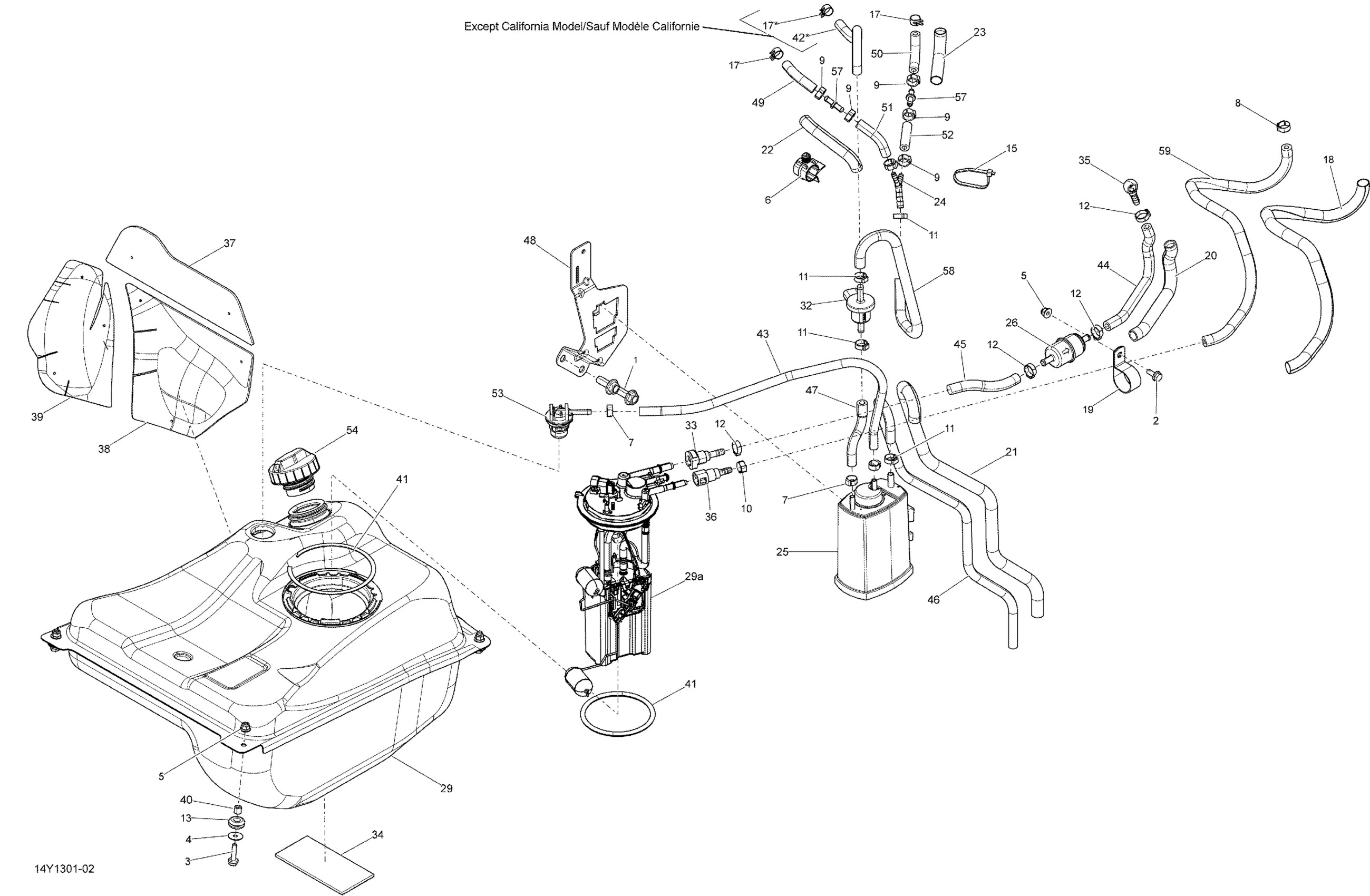

Can-Am Spyder RT Limited SE5, 2013 02- Fuel System Diagram

Hex. Flange Screw M10 X 25

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 25

Flat Washer

Hex. Flange Elastic Nut M6 x 1.0

Cable Retainer

Oetiker Gear Clamp

Oetiker Gear Clamp

Oetiker Gear Clamp

Oetiker Clamp

Crimp Clamp, 15.3-706R

Oetiker Clamp

Grommet

Tie-Rap 173 mm

Spring Clamp

Tubing 16 Mm 1000Mm Long

Open Clamp

Tubing 16 Mm 1000Mm Long

Tubing

Tubing 16 Mm 1000Mm Long

Tubing 16 Mm 1000Mm Long

Y Connector | CARB

Vapor Canister

Fuel Filter

Fuel Tank

Bleed Valve

Female Quick Fitting Ass'y

Carpet

BANJO FITTING - Call your local BRP dealership

Quick Connect Pipe Fitting

Reflective Sheet

REFLECTIVE SHEET - Call your local BRP dealership

REFLECTIVE SHEET - Call your local BRP dealership

Bushing

Seal Kit

HOSE - Call your local BRP dealership

Hose

FUEL LINE 7.9 MM, METER - Call your local BRP dealership | Replaced by 709000264 + 709000265

FUEL LINE 6.4 MM, METER - Call your local BRP dealership

Formed Hose

Hose

FUEL FILTER SUPPORT - Call your local BRP dealership

Hose

Hose

HOSE - Call your local BRP dealership

Hose

Rollover Valve

Fuel Cap

FITTING_PIPE FLOW RESTRICTOR - Call your local BRP dealership | CARB

HOSE - Call your local BRP dealership

FUEL LINE 6.4 MM, METER - Call your local BRP dealership

Pump Module

RH Air Duct

LH Air Duct
