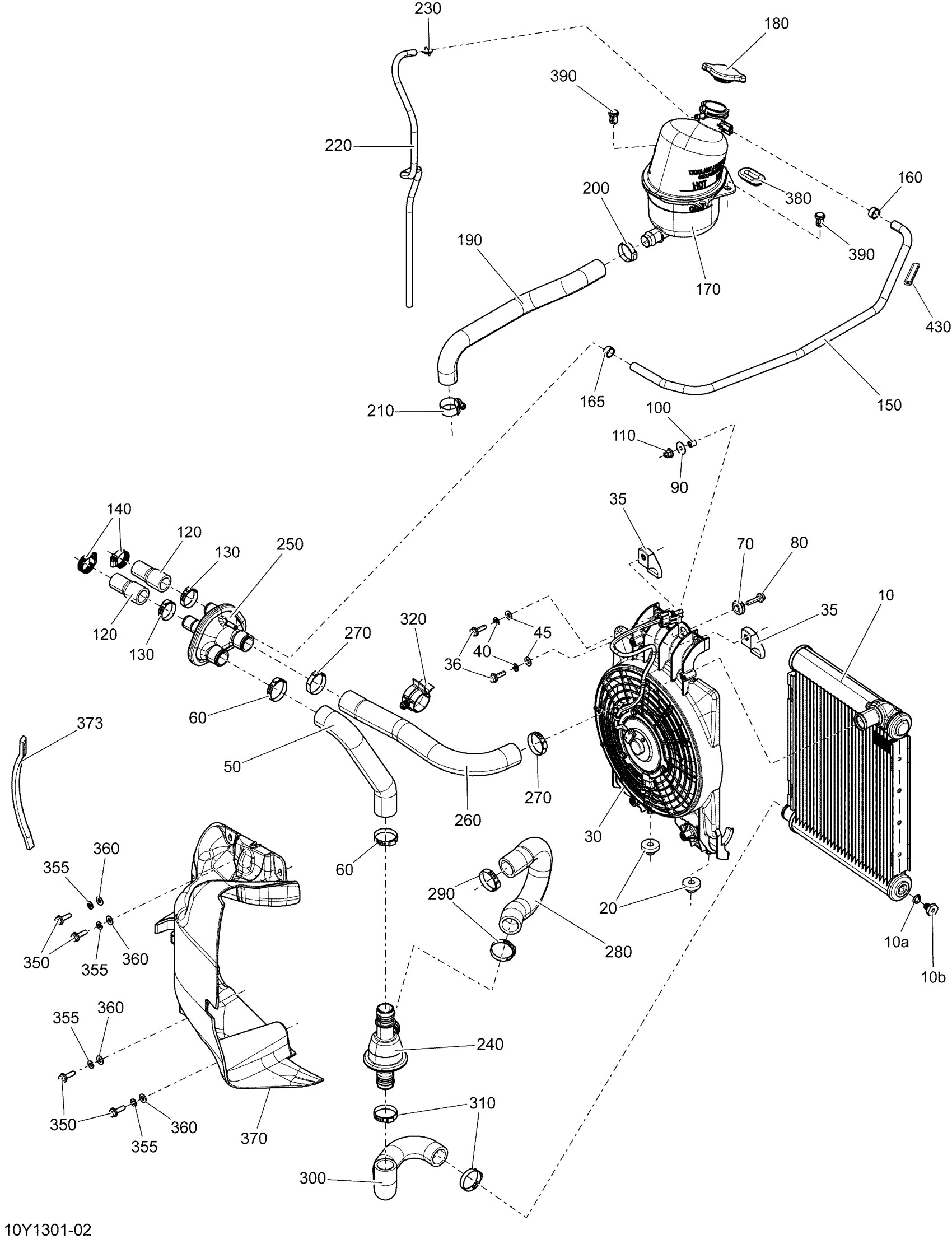

Can-Am Spyder RT Limited SE5, 2013 01- Cooling System Diagram

#

Description
Price

10

Radiator | Includes 37 to 37b

709200337

$433.99

10a

O-RING - Call your local BRP dealership

709200417

$6.29

10b

Drain Plug

709200418

$13.75

20

Grommet

709200285

$9.69

30

Fan Assembly

709200554

$154.99

35

CLAMP BRACKET - Call your local BRP dealership

709200372

Unavailable

36

Hex. Flange Screw M6 X 20

207662044

$2.00

40

Lock Washer Helical M6

234161601

$1.15

45

Flat Washer

224061121

$0.53

50

HOSE_THERMOSTAT UP FORMED - Call your local BRP dealership

709200419

Unavailable

60

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

70

Grommet

709000582

$4.69

80

Hex. Flange Screw M6 X 25

207662544

$0.64

90

Flat Washer

224060201

$1.26

100

Bushing

293900105

$7.65

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

120

HOSE_WATER PUMP UP FORMED - Call your local BRP dealership

709200144

Unavailable

130

Crimp Clamp

293650099

$4.29

140

Tridon Gear Clamp

293650173

$3.09

150

FORMED HOSE - Call your local BRP dealership

709200421

Unavailable

160

Oetiker Gear Clamp

293650025

$3.09

165

Oetiker Gear Clamp

293650025

$3.09

170

COOLANT TANK - Call your local BRP dealership

709200405

Unavailable

180

Pressure Cap

509000187

$29.49

190

FORMED HOSE - Call your local BRP dealership

709200399

Unavailable

200

Oetiker Clamp

293650141

$4.29

210

Tridon Gear Clamp

293650051

$4.19

220

Polyurethane Hose 10000Mm Long

219704410

$56.99

230

Spring Clamp

414554800

$0.88

240

Thermostat Housing

709200384

$88.99

250

Connector

709200151

$19.49

260

HOSE_RADIATOR UP FORMED - Call your local BRP dealership

709200420

Unavailable

270

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

280

HOSE_WATER PUMP LWR FORMED - Call your local BRP dealership

709200259

Unavailable

290

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

300

HOSE_RADIATOR LWR FORMED - Call your local BRP dealership

709200301

Unavailable

310

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

320

Retainer

275500590

$9.69

350

Hex. Flange Screw M6 X 20

207662044

$2.00

355

Lock Washer Helical M6

234161601

$1.15

360

Flat Washer

224061121

$0.53

370

DEFLECTOR - Call your local BRP dealership

709200466

Unavailable

373

Neoprene Seal (1PAC=3M)

219704364

$27.49

380

Oblong Grommet

705003668

$5.79

390

Tuflok Plastic Rivet

293150230

$1.47

430

Trim 1000Mm Long

219704354

$15.99
