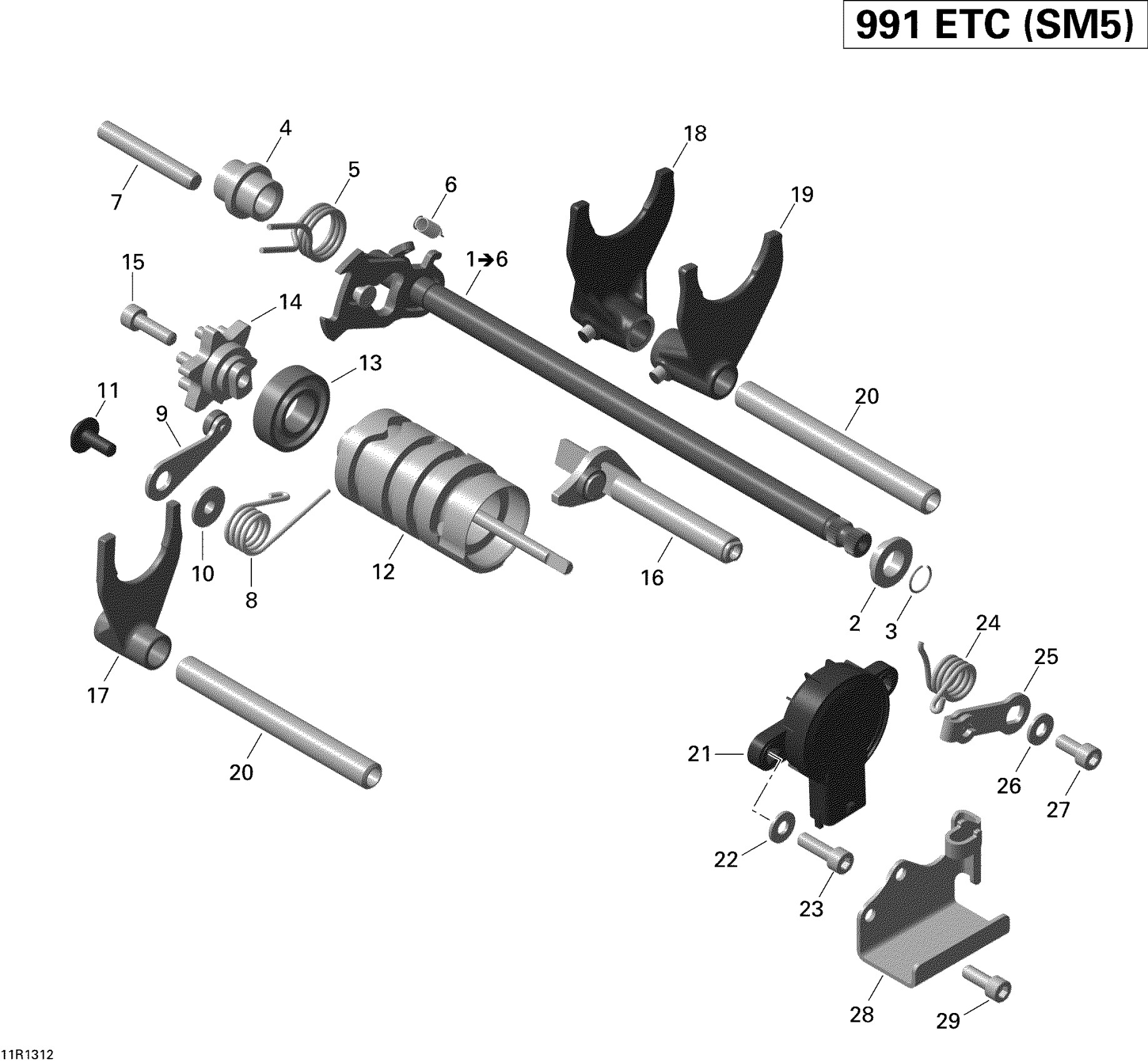

Can-Am Spyder RS_RSS SM5, 2013 05- Shifting System Diagram

#

Description
Price

1

Clutch Shaft Ass'y | Includes 1 to 6

420620595

$87.99

2

Step Ring

420227714

$11.59

3

Snap Ring

420245440

$2.74

4

Step Sleeve

420247940

$8.49

5

SPRING - Call your local BRP dealership

420239422

Unavailable

6

Spring

420239431

$7.79

7

PIN, M6 X 55 - Call your local BRP dealership

420229385

Unavailable

8

Return Spring

420239248

$7.19

9

INDEXATION LEVER - Call your local BRP dealership

420248376

$27.99

10

Step Ring

420227716

$11.59

11

Torx Screw M6 X 16

420241529

$2.11

12

SHIFT DRUM - Call your local BRP dealership

420657026

Unavailable

13

Ball Bearing

420232625

$20.99

14

Indexation Shim

420258310

$35.99

15

Allen Screw M6 X 20

420241939

$0.73

16

Locking Shaft

420620706

$44.49

17

SHIFT FORK SHAFT - Call your local BRP dealership

420257690

Unavailable

18

Shift Fork Shaft

420258355

$82.99

19

Shift Fork Shaft

420258365

$82.99

20

Fork Spindle

420258383

$21.99

21

Angle Rotation Sensor

420266168

$194.99

22

Flat Washer

224061121

$0.53

23

Allen Screw M6 X 20

420241939

$0.73

24

SPRING - Call your local BRP dealership

420838415

Unavailable

25

Control Lever

420248275

$15.81

26

Flat Washer

224061121

$0.53

27

Allen Screw M6 X 14

420840391

$1.69

28

REVERSE CABLE SUPPORT - Call your local BRP dealership

420251565

Unavailable

29

Socket Head Screw M6 x 16

420241237

$2.22
