Description

Price

10

Engine 991 | RS-STD

707001282

Unavailable

15

DEFLECTOR - Call your local BRP dealership

707000845

Unavailable

20

Hex. Flange Screw M6 X 12

207661244

$2.11

22

Flat Washer

224061121

$0.53

25

Hex. Flange Screw M10 X 25

207602544

$1.69

30

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

40

Hex. Flange Elastic Nut M10

233201436

$2.11

60

Hex. Flange Elastic Nut M10

233201436

$2.11

70

Hex. Flange Screw M6 X 20

207662044

$2.00

80

Panel Nut M6 X 1.0

250100198

$2.11

320

HOSE - Call your local BRP dealership

707000484

Unavailable

330

Oetiker Clamp

293650186

$3.99

370

LH ENGINE SUPPORT - Call your local BRP dealership

707001238

Unavailable

380

RH ENGINE SUPPORT - Call your local BRP dealership

707001239

Unavailable

390

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

400

RUBBER MOUNT - Call your local BRP dealership

707000814

Unavailable

410

EXTENTION - Call your local BRP dealership

707001233

Unavailable

420

Hex. Flange Screw M8 X 20

207682046

$1.90

425

Carriage Bolt M8 X 20

207782046

$1.90

430

Hex. Flange Nut M8

233081416

$1.15

435

Hex. Flange Nut M8

233081416

$1.15

440

FRONT ENGINE SUPPORT - Call your local BRP dealership

707001055

Unavailable

450

Front Rubber Mount

707001056

$104.99

460

Hex. Flange Screw M10 X 25

207602544

$1.69

480

Hex. Flange Screw M10 X 200

250000583

$10.59

490

Hex. Flange Elastic Nut M10

233201436

$2.11

495

Hex. Flange Screw M8 X 20

207682046

$1.90

500

Hex. Elastic Flange Nut M8

233281416

$1.48

510

Pressure And Temperature Sensor

707000995

$88.99

520

Hex. Flange Screw M6 X 20

207662084

$1.69

530

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

530a

Hex. Elastic Stop Nut M6

232561600

$1.15

540

Foam Filter

707000586

$5.50

560

Rubber Stopper

708000758

$12.99

570

Hex. Flange Screw M8 X 20

207682046

$1.90

580

Hex. Flange Nut M8

233081416

$1.15

640

Connecting Rod

707001358

$68.99

650

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$6.77

660

Hex. Flange Elastic Nut M10

233201436

$2.11

670

CONNECTING ROD - Call your local BRP dealership

707001357

Unavailable

680

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$6.77

690

Hex. Flange Elastic Nut M10

233201436

$2.11

700

Intake Support

707000756

$11.07

710

Hex. Flange Screw M6 X 12

207661244

$2.11

715

Bracket

415052400

$4.39

720a

Solenoid Valve

707001596

$78.99

720b

Hose

513033565

$30.99

720c

Hose

513033565

$30.99

720d

Check Valve

513033469

$31.99

720e

Oetiker Clamp

293650042

$3.09

730

Torx Screw M5 X 20

250000724

$1.69

740

Hex. Flange Elastic Nut M5

233251414

$1.04

750

Oetiker Clamp

293650042

$3.09

800

BRACKET - Call your local BRP dealership

707800469

Unavailable

810

Hex. Flange Screw M6 X 20

207662044

$2.00

820

Panel Nut M6 X 1.0

250100198

$2.11

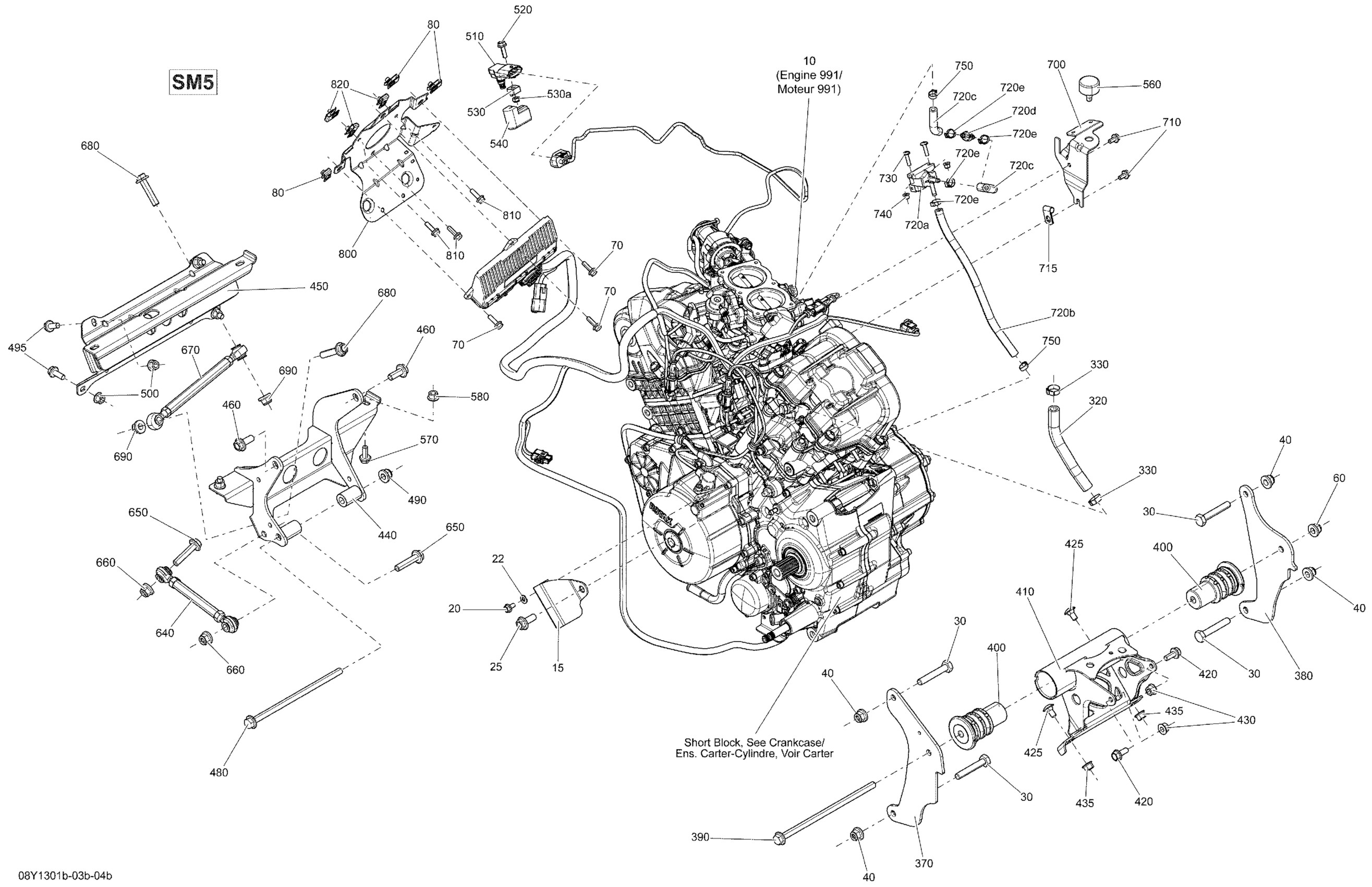

Can-Am Spyder RS_RSS SM5, 2013 01- Engine SM5_1 Diagram

Engine 991 | RS-STD

DEFLECTOR - Call your local BRP dealership

Hex. Flange Screw M6 X 12

Flat Washer

Hex. Flange Screw M10 X 25

HEX. SCREW M10 X 60 - Call your local BRP dealership

Hex. Flange Elastic Nut M10

Hex. Flange Elastic Nut M10

Hex. Flange Screw M6 X 20

Panel Nut M6 X 1.0

HOSE - Call your local BRP dealership

Oetiker Clamp

LH ENGINE SUPPORT - Call your local BRP dealership

RH ENGINE SUPPORT - Call your local BRP dealership

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

RUBBER MOUNT - Call your local BRP dealership

EXTENTION - Call your local BRP dealership

Hex. Flange Screw M8 X 20

Carriage Bolt M8 X 20

Hex. Flange Nut M8

Hex. Flange Nut M8

FRONT ENGINE SUPPORT - Call your local BRP dealership

Front Rubber Mount

Hex. Flange Screw M10 X 25

Hex. Flange Screw M10 X 200

Hex. Flange Elastic Nut M10

Hex. Flange Screw M8 X 20

Hex. Elastic Flange Nut M8

Pressure And Temperature Sensor

Hex. Flange Screw M6 X 20

M6 Nut Housing Ass'y | Includes 7r to 7r2

Hex. Elastic Stop Nut M6

Foam Filter

Rubber Stopper

Hex. Flange Screw M8 X 20

Hex. Flange Nut M8

Connecting Rod

Hex. Flange Screw M10 X 45 Scotch Grip

Hex. Flange Elastic Nut M10

CONNECTING ROD - Call your local BRP dealership

Hex. Flange Screw M10 X 45 Scotch Grip

Hex. Flange Elastic Nut M10

Intake Support

Hex. Flange Screw M6 X 12

Bracket

Solenoid Valve

Hose

Hose

Check Valve

Oetiker Clamp

Torx Screw M5 X 20

Hex. Flange Elastic Nut M5

Oetiker Clamp

BRACKET - Call your local BRP dealership

Hex. Flange Screw M6 X 20

Panel Nut M6 X 1.0
