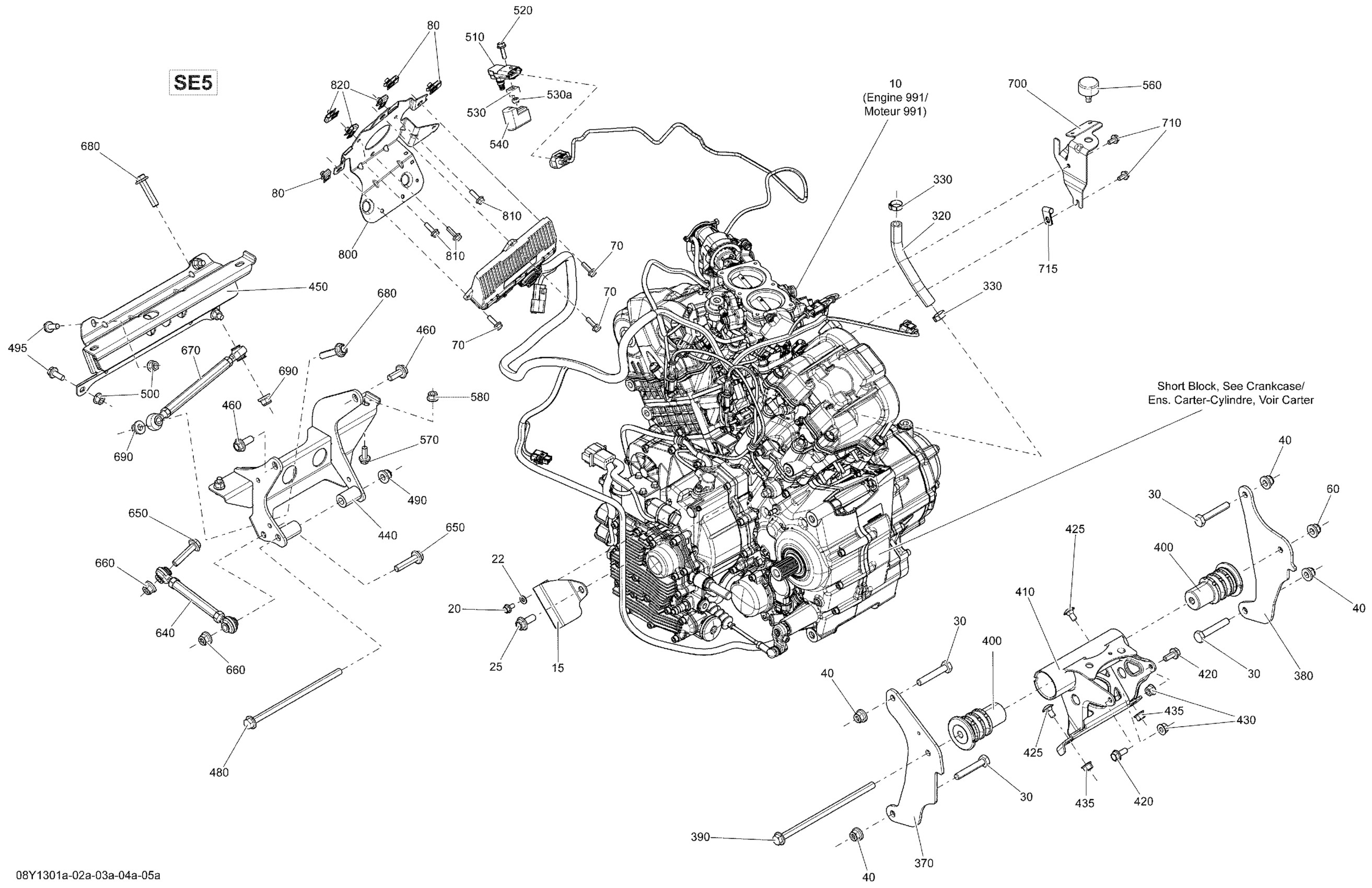

Can-Am Spyder RS_RSS SE5, 2013 01- Engine SE5 Diagram

#

Description
Price

10

Engine 991 | RS-STD

707001281

Unavailable

15

DEFLECTOR - Call your local BRP dealership

707000845

Unavailable

20

Hex. Flange Screw M6 X 12

207661244

$2.11

22

Flat Washer

224061121

$0.53

25

Hex. Flange Screw M10 X 25

207602544

$1.69

30

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

40

Hex. Flange Elastic Nut M10

233201436

$2.11

60

Hex. Flange Elastic Nut M10

233201436

$2.11

70

Hex. Flange Screw M6 X 20

207662044

$2.00

80

Panel Nut M6 X 1.0

250100198

$2.11

320

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

330

Oetiker Clamp

293650186

$3.99

370

LH ENGINE SUPPORT - Call your local BRP dealership

707001238

Unavailable

380

RH ENGINE SUPPORT - Call your local BRP dealership

707001239

Unavailable

390

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

400

RUBBER MOUNT - Call your local BRP dealership

707000814

Unavailable

410

EXTENTION - Call your local BRP dealership

707001233

Unavailable

420

Hex. Flange Screw M8 X 20

207682046

$1.90

425

Carriage Bolt M8 X 20

207782046

$1.90

430

Hex. Flange Nut M8

233081416

$1.15

435

Hex. Flange Nut M8

233081416

$1.15

440

FRONT ENGINE SUPPORT - Call your local BRP dealership

707001055

Unavailable

450

Front Rubber Mount

707001056

$104.99

460

Hex. Flange Screw M10 X 25

207602544

$1.69

480

Hex. Flange Screw M10 X 200

250000583

$10.59

490

Hex. Flange Elastic Nut M10

233201436

$2.11

495

Hex. Flange Screw M8 X 20

207682046

$1.90

500

Hex. Elastic Flange Nut M8

233281416

$1.48

510

Pressure And Temperature Sensor

707000995

$88.99

520

Hex. Flange Screw M6 X 20

207662084

$1.69

530

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

530a

Hex. Elastic Stop Nut M6

232561600

$1.15

540

Foam Filter

707000586

$5.50

560

Rubber Stopper

708000758

$12.99

570

Hex. Flange Screw M8 X 20

207682046

$1.90

580

Hex. Flange Nut M8

233081416

$1.15

640

Connecting Rod

707001358

$68.99

650

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$6.77

660

Hex. Flange Elastic Nut M10

233201436

$2.11

670

CONNECTING ROD - Call your local BRP dealership

707001357

Unavailable

680

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$6.77

690

Hex. Flange Elastic Nut M10

233201436

$2.11

700

Intake Support

707000756

$11.07

710

Hex. Flange Screw M6 X 12

207661244

$2.11

715

Bracket

415052400

$4.39

800

BRACKET - Call your local BRP dealership

707800469

Unavailable

810

Hex. Flange Screw M6 X 20

207662044

$2.00

820

Panel Nut M6 X 1.0

250100198

$2.11
