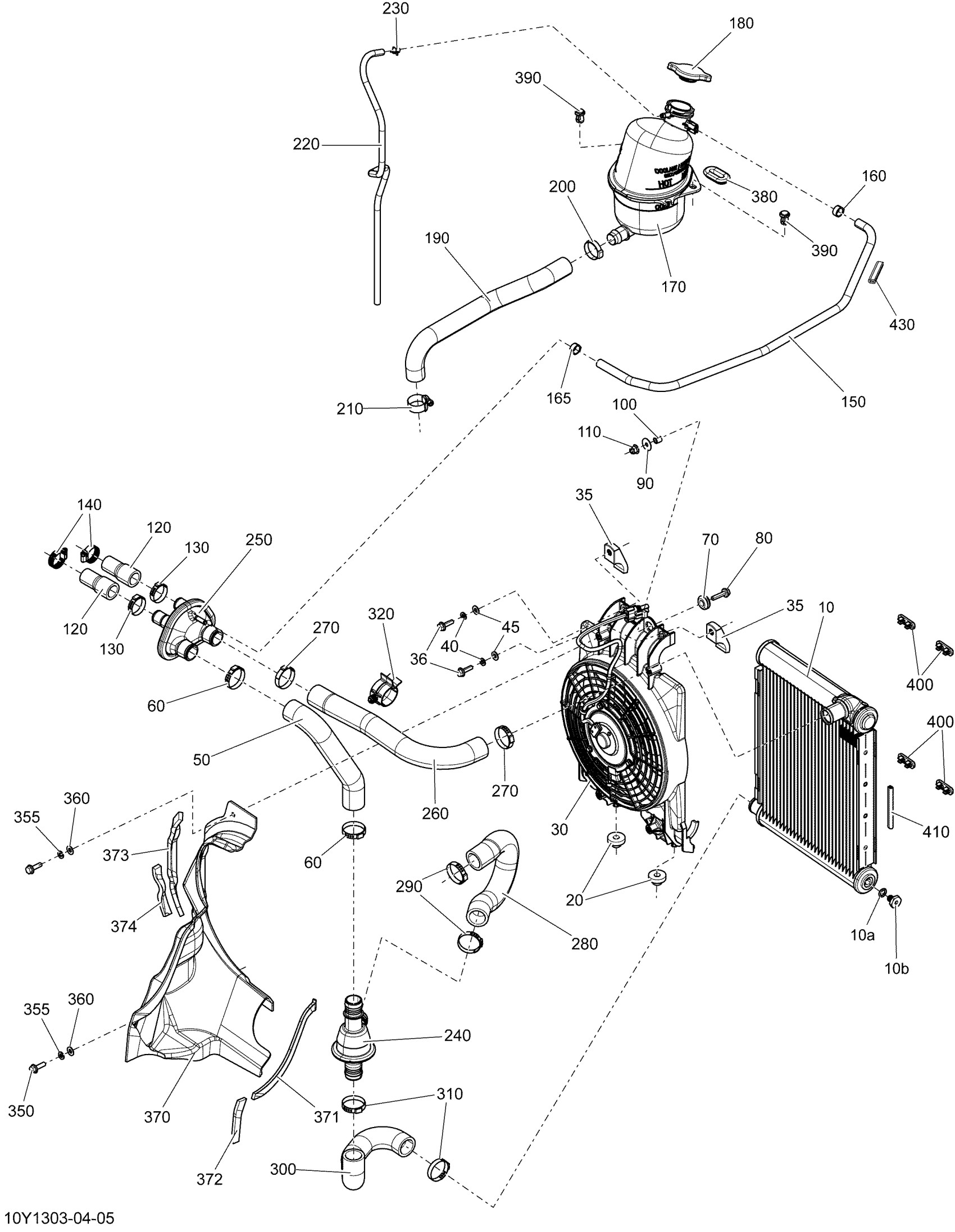

Can-Am Spyder RS_RSS SE5, 2013 01- Cooling System Diagram

#

Description
Price

10

Radiator | Includes 37 to 37b

709200337

$433.99

10a

O-RING - Call your local BRP dealership

709200417

$6.29

10b

Drain Plug

709200418

$13.75

20

Grommet

709200285

$9.69

30

Fan Assembly

709200554

$154.99

35

CLAMP BRACKET - Call your local BRP dealership

709200372

Unavailable

36

Hex. Flange Screw M6 X 20

207662044

$2.00

40

Lock Washer Helical M6

234161601

$1.15

45

Flat Washer

224061121

$0.53

50

HOSE_THERMOSTAT UP FORMED - Call your local BRP dealership

709200419

Unavailable

60

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

70

Grommet

709000582

$4.69

80

Hex. Flange Screw M6 X 25

207662544

$0.64

90

Flat Washer

224060201

$1.26

100

Bushing

293900105

$7.65

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

120

HOSE_WATER PUMP UP FORMED - Call your local BRP dealership

709200144

Unavailable

130

Crimp Clamp

293650099

$4.29

140

Tridon Gear Clamp

293650173

$3.09

150

FORMED HOSE - Call your local BRP dealership

709200421

Unavailable

160

Oetiker Gear Clamp

293650025

$3.09

165

Oetiker Gear Clamp

293650025

$3.09

170

COOLANT TANK - Call your local BRP dealership

709200405

Unavailable

180

Pressure Cap

509000187

$29.49

190

FORMED HOSE - Call your local BRP dealership

709200399

Unavailable

200

Oetiker Clamp

293650141

$4.29

210

Tridon Gear Clamp

293650051

$4.19

220

Polyurethane Hose 10000Mm Long

219704410

$56.99

230

Spring Clamp

414554800

$0.88

240

Thermostat Housing

709200384

$88.99

250

Connector

709200151

$19.49

260

HOSE_RADIATOR UP FORMED - Call your local BRP dealership

709200420

Unavailable

270

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

280

HOSE_WATER PUMP LWR FORMED - Call your local BRP dealership

709200259

Unavailable

290

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

300

HOSE_RADIATOR LWR FORMED - Call your local BRP dealership

709200301

Unavailable

310

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

320

Retainer

275500590

$9.69

350

Not Available As Spare Parts

XXX

Unavailable

355

Not Available As Spare Parts

XXX

Unavailable

360

Not Available As Spare Parts

XXX

Unavailable

370

Not Available As Spare Parts

XXX

Unavailable

371

Not Available As Spare Parts

XXX

Unavailable

372

Not Available As Spare Parts

XXX

Unavailable

373

Not Available As Spare Parts

XXX

Unavailable

374

Not Available As Spare Parts

XXX

Unavailable

380

Oblong Grommet

705003668

$5.79

390

Tuflok Plastic Rivet

293150230

$1.47

400

Rubber Stopper

709200502

$5.71

410

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

430

Trim 1000Mm Long

219704354

$15.99
