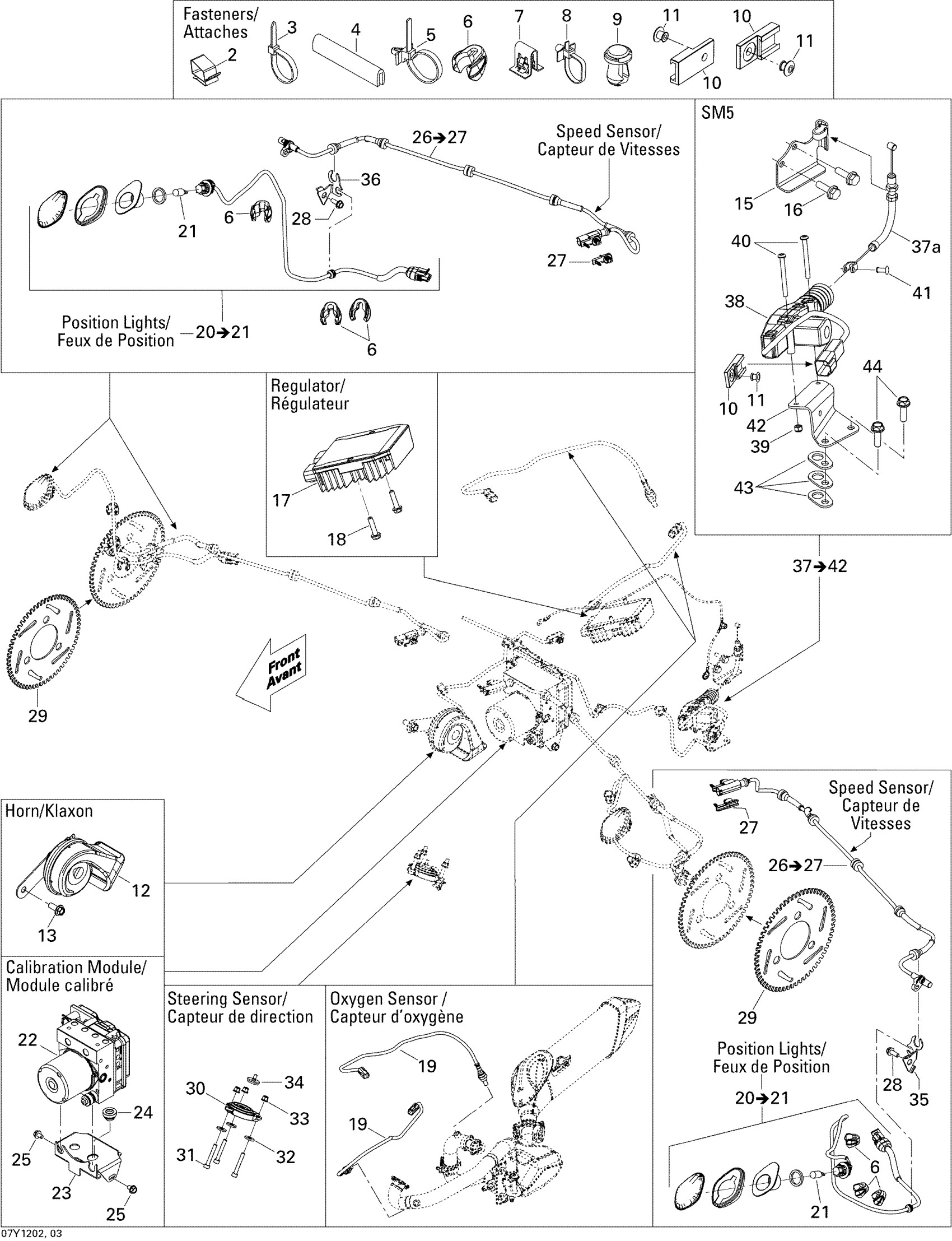

Can-Am Spyder RT SM5, 2012 10- Electrical Accessories, Front Diagram

#

Description
Price

2

Clip

414227300

$1.67

3

Tie-Rap 180 mm

414115200

$0.11

3

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

3

Tie Wrap 142 mm

293750002

$1.25

4

Trim 1000Mm Long

219704354

$15.99

5

Tie-Rap 173 mm

293750009

$1.04

6

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

7

Edge Clip

517302785

$0.88

8

UNLOCKING CLIP - Call your local BRP dealership

710002197

Unavailable

9

Tuflok Plastic Rivet

293150230

$1.47

10

Clip

270000141

$11.49

11

Pop Rivet 3/16"

390402400

$0.35

12

HORN - Call your local BRP dealership

710004229

$28.99

13

Hex. Flange Screw M8 X 20

207682044

$1.15

15

REVERSE CABLE SUPPORT - Call your local BRP dealership

420251565

Unavailable

16

Hex. Flange Screw M6 X 20

207662044

$2.00

17

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

18

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

19

Oxygen Sensor

707600872

$144.99

20

Position Light | Includes 22 to 23

710001478

$59.49

21

BULB 5W. - Call your local BRP dealership

410922994

Unavailable

22

VSS Hydraulic Unit

219800097

$1,519.99

23

MODULE BRACKET - Call your local BRP dealership

705600602

Unavailable

24

STOPPER - Call your local BRP dealership

710000938

Unavailable

25

Hex. Flange Screw M6 X 12

210261250

$1.90

26

SPEED SENSOR - Call your local BRP dealership | Includes 25a to 25b

706200495

Unavailable

27

Speed Sensor Clip

219800059

$9.69

28

Hex. Flange Screw M6 X 16

210261650

$1.67

29

TONE WHEEL - Call your local BRP dealership

705600436

Unavailable

30

Steering Position Sensor

709400363

$609.99

31

Socket Head Screw M5 X 35

205053588

$1.90

32

Flat Washer M5

234051410

$0.53

33

Hex. Flange Elastic Nut M5

233251414

$1.04

34

ENCODER MAGNET - Call your local BRP dealership

709400362

Unavailable

35

LH WIRE SUPPORT - Call your local BRP dealership

710002019

Unavailable

36

RH WIRE SUPPORT - Call your local BRP dealership

710002018

Unavailable

37

Reverse Actuator Ass'y | Includes 37 to 42, SM5

710001954

$124.99

37a

REVERSE CABLE - Call your local BRP dealership | SM5

707000636

Unavailable

38

Actuator

710011269

$64.99

39

Elastic Stop Nut M4

232541414

$0.58

40

Socket Head Screw M4 X 40 | X

205444086

$1.69

41

Pop Rivet 1/8" | SM5

390401600

$5.69

42

ACTUATOR SUPPORT - Call your local BRP dealership | SM5

710001599

Unavailable

43

Shim

710002024

$5.66

44

Hexagonal Head Screw

210262050

$2.11
