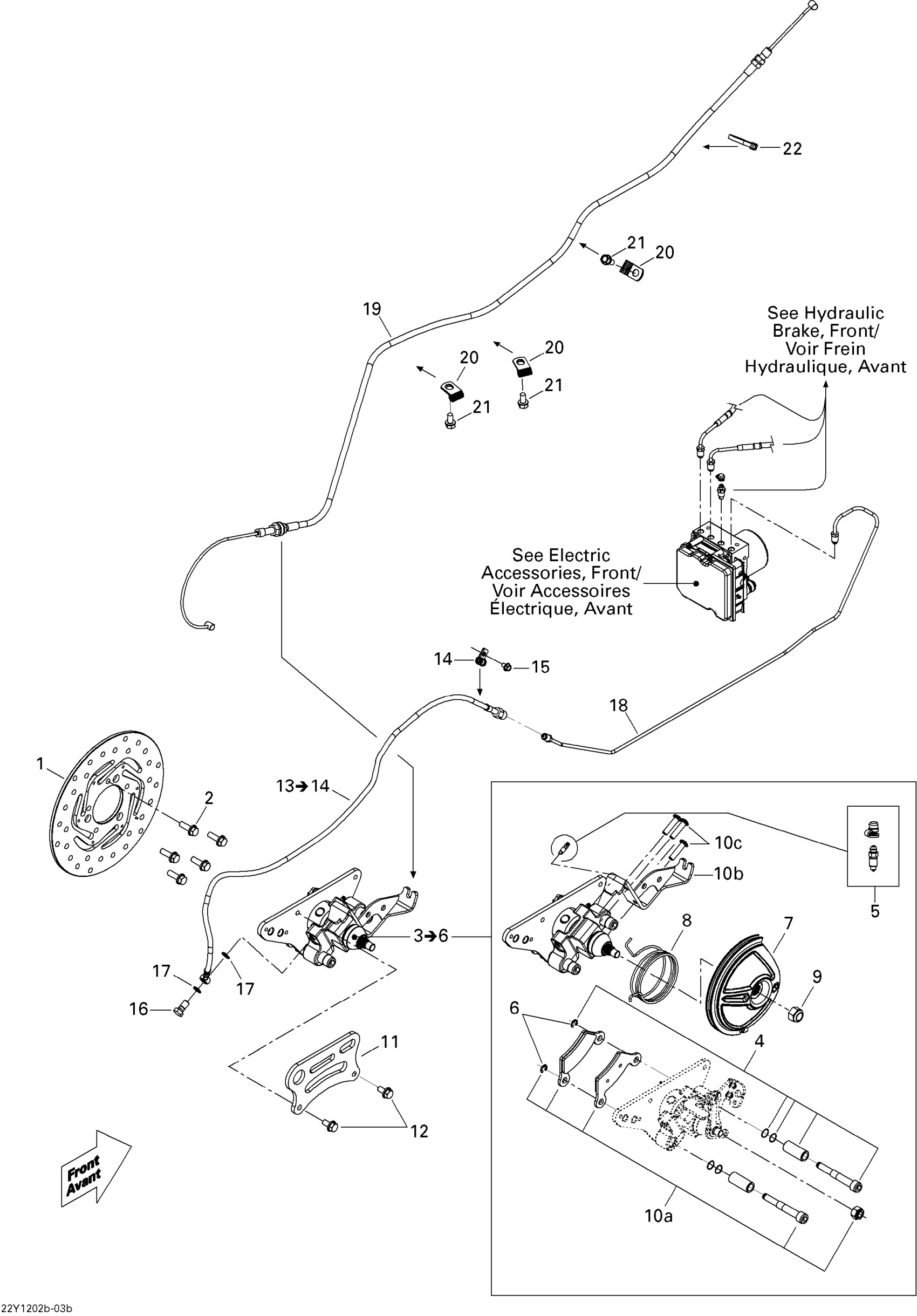

Can-Am Spyder RT SM5, 2012 06- Hydraulic Brake, Rear Diagram

#

Description
Price

1

REAR BRAKE DISC - Call your local BRP dealership

705600591

$229.99

2

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

3

Rear Caliper | Includes 3 to 6

705600921

$719.99

4

BUSHING KIT - Call your local BRP dealership

219800032

Unavailable

5

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

6

RETAINING RING - Call your local BRP dealership

219800050

Unavailable

7

REAR PULLEY CABLE - Call your local BRP dealership

705600772

Unavailable

8

Spring

705601065

$8.75

9

NUT 7/16'' - Call your local BRP dealership

250100128

Unavailable

10a

Rear Pad Kit

219800165

$77.99

10b

CABLE SUPPORT - Call your local BRP dealership

705600974

Unavailable

10c

THREAD FORMING SCREW 1/4-20 X 1 - Call your local BRP dealership

250000413

Unavailable

11

REAR CALIPER SUPPORT - Call your local BRP dealership

705600430

Unavailable

12

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

13

REAR BRAKE LINE - Call your local BRP dealership | Includes 8 to 9

705600813

Unavailable

14

Clamp

293650256

$5.49

15

Hex. Flange Screw M6 X 12

210261250

$1.90

16

Banjo Bolt

414920500

$8.68

17

Washer

414920600

$1.90

18

REAR RIGID TUBE - Call your local BRP dealership

705600834

Unavailable

19

Parking Brake Cable

707000927

$76.99

20

Bracket

415052400

$4.39

21

Hex. Flange Screw M6 X 12

210261250

$1.90

22

Tie-Rap 180 mm

414115200

$0.11
