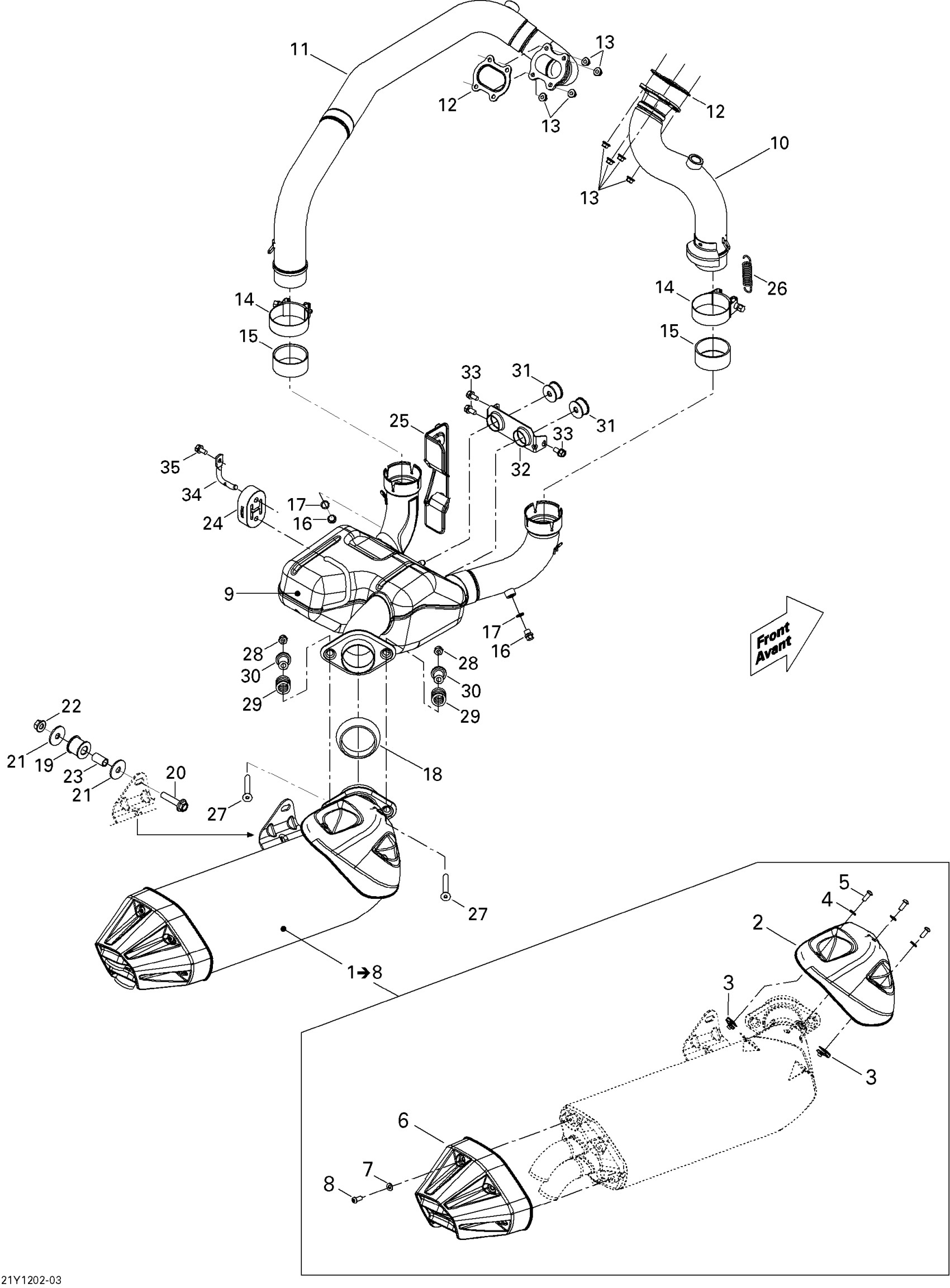

Can-Am Spyder RT SM5, 2012 01- Exhaust System Diagram

#

Description
Price

1

Muffler Ass'y

707601704

$953.99

2

EXHAUST HEAT SHIELD - Call your local BRP dealership

707600866

Unavailable

3

Panel Nut M6 X 1.0

250100198

$2.11

4

Stainless Flat Washer M6

234061600

$0.33

5

Stainless, Socket Screw, M6X16 S.Grip

250000437

$1.90

6

Crystal Silver Muffler End Cap

707600867

$82.49

7

Stainless Flat Washer M6

234061600

$0.33

8

Stainless, Socket Screw, M6X16 S.Grip

250000437

$1.90

9

PRIMARY EXHAUST MUFFLER - Call your local BRP dealership

707800499

Unavailable

10

REAR EXHAUST TUNED PIPE - Call your local BRP dealership

707601367

Unavailable

11

PIPE_EXHAUST IN WELD - Call your local BRP dealership

707600634

Unavailable

12

Seal

707600296

$19.49

13

Hex. Flange Nut M6

233061414

$1.68

14

COLLAR - Call your local BRP dealership

707601249

$19.49

15

Pipe Slip Joint

707600650

$21.99

16

HEX HEAD PIPE PLUG M10 DIN910 - Call your local BRP dealership

250100122

Unavailable

17

Washer

414920600

$1.90

18

Exhaust Gasket

514053677

$24.99

19

ANTI-VIBRATION RUBBER - Call your local BRP dealership

707600683

Unavailable

20

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$6.77

21

Washer 10 mm

506150000

$2.74

22

Hex. Flange Nut M10

233101600

$5.29

23

BUSHING - Call your local BRP dealership

705003206

Unavailable

24

Rubber Bumper

707600638

$15.81

25

DEFLECTOR - Call your local BRP dealership

707600653

Unavailable

26

Spring

514054226

$6.35

27

SOCKET SCREW, M8 X 75 S. GRIP - Call your local BRP dealership

250000404

Unavailable

28

Hex. Elastic Nut M8

232581600

$1.48

29

Spring

707600682

$6.35

30

Bushing

707600750

$18.54

31

Anti-Vibration Rubber

707600702

$8.57

32

Front Bracket | Includes 360 to 360b1a

707600661

$13.22

33

Hexagonal Head Screw

210262050

$2.11

34

RETAINING ROD - Call your local BRP dealership

707600666

Unavailable

35

Hexagonal Head Screw

210262050

$2.11
