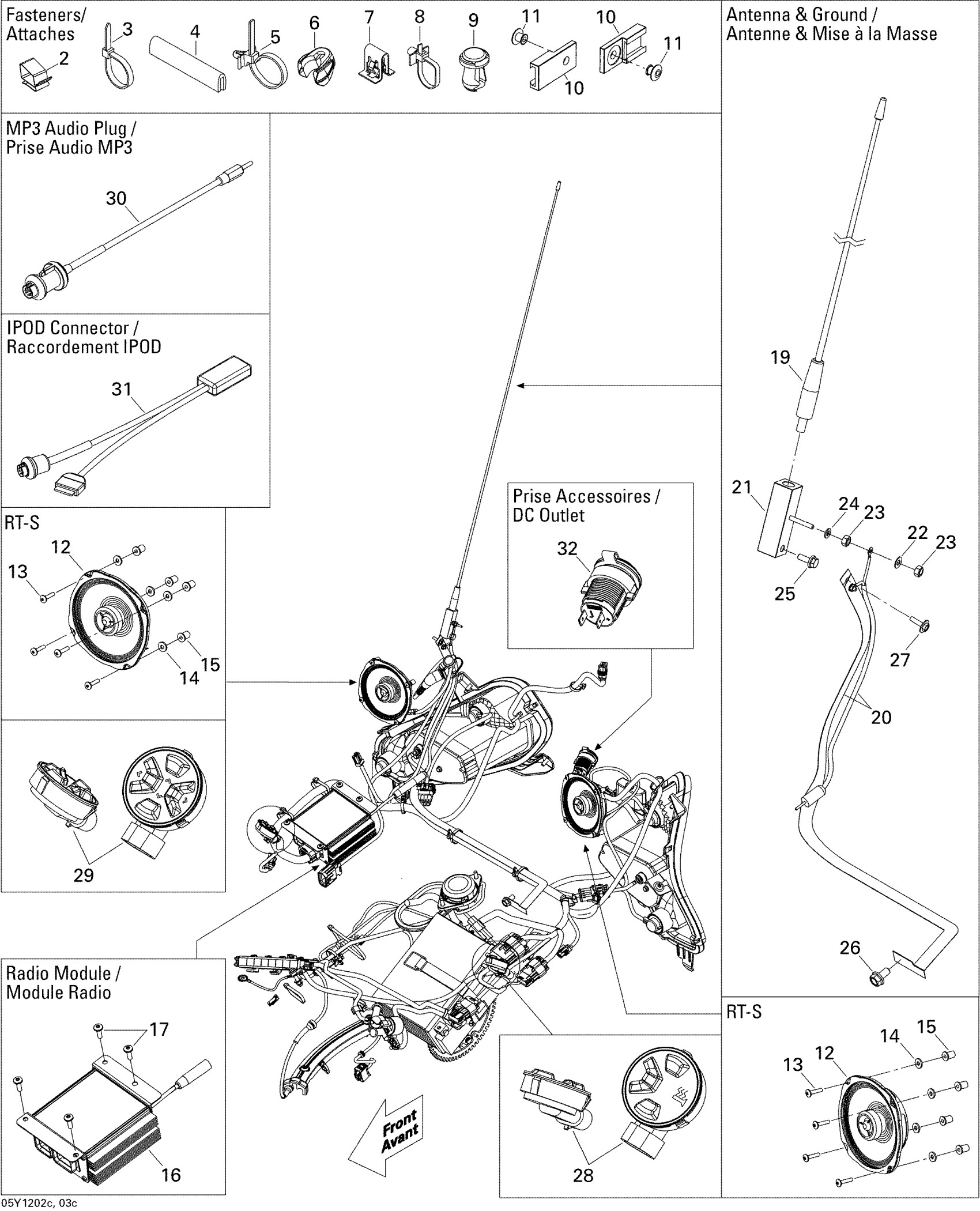

Can-Am Spyder RT SE5, 2012 10- Electrical Accessories 3 Diagram

#

Description
Price

2

Clip

414227300

$1.67

3

Tie-Rap 180 mm

414115200

$0.11

3

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

3

Tie Wrap 142 mm

293750002

$1.25

4

Trim 1000Mm Long

219704354

$15.99

5

Tie-Rap 173 mm

293750009

$1.04

6

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

7

Edge Clip

517302785

$0.88

8

UNLOCKING CLIP - Call your local BRP dealership

710002197

Unavailable

9

Tuflok Plastic Rivet

293150230

$1.47

10

Clip

270000141

$11.49

11

Pop Rivet 3/16"

390402400

$0.35

12

Rear Speaker

710003232

$139.99

13

TORX SCREW M4 X 20 - Call your local BRP dealership

250000405

Unavailable

14

Flat Washer

517225900

$0.18

15

Well Rubber Nut M4 X 0.7

705003635

$6.14

16

Rebuilt Radio Module 5V Ipod

219800399

$709.99

17

Torx Screw K50 X 16

250000720

$1.69

19

Antenna

710002740

$78.49

20

ANTENNA CABLE ASS'Y - Call your local BRP dealership

710003249

Unavailable

21

Antenna Support

710001532

$58.99

22

Brass Flat Washer DIN.433 M4

234040200

$2.96

23

Brass Hex Nut M4 DIN.934

232041200

$2.00

24

Curved Stainless Lock Washer DIN.128A

234140602

$2.11

25

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

26

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

27

Screw M4 X 16

250000725

$3.49

28

LH Housing

710002349

$169.99

29

RH Housing Passenger Switch

710002464

$100.49

30

MP3 Audio Plug

710001406

$44.99

31

IPOD INLET - Call your local BRP dealership

710002676

Unavailable

32

DC Outlet

710001248

$37.99
