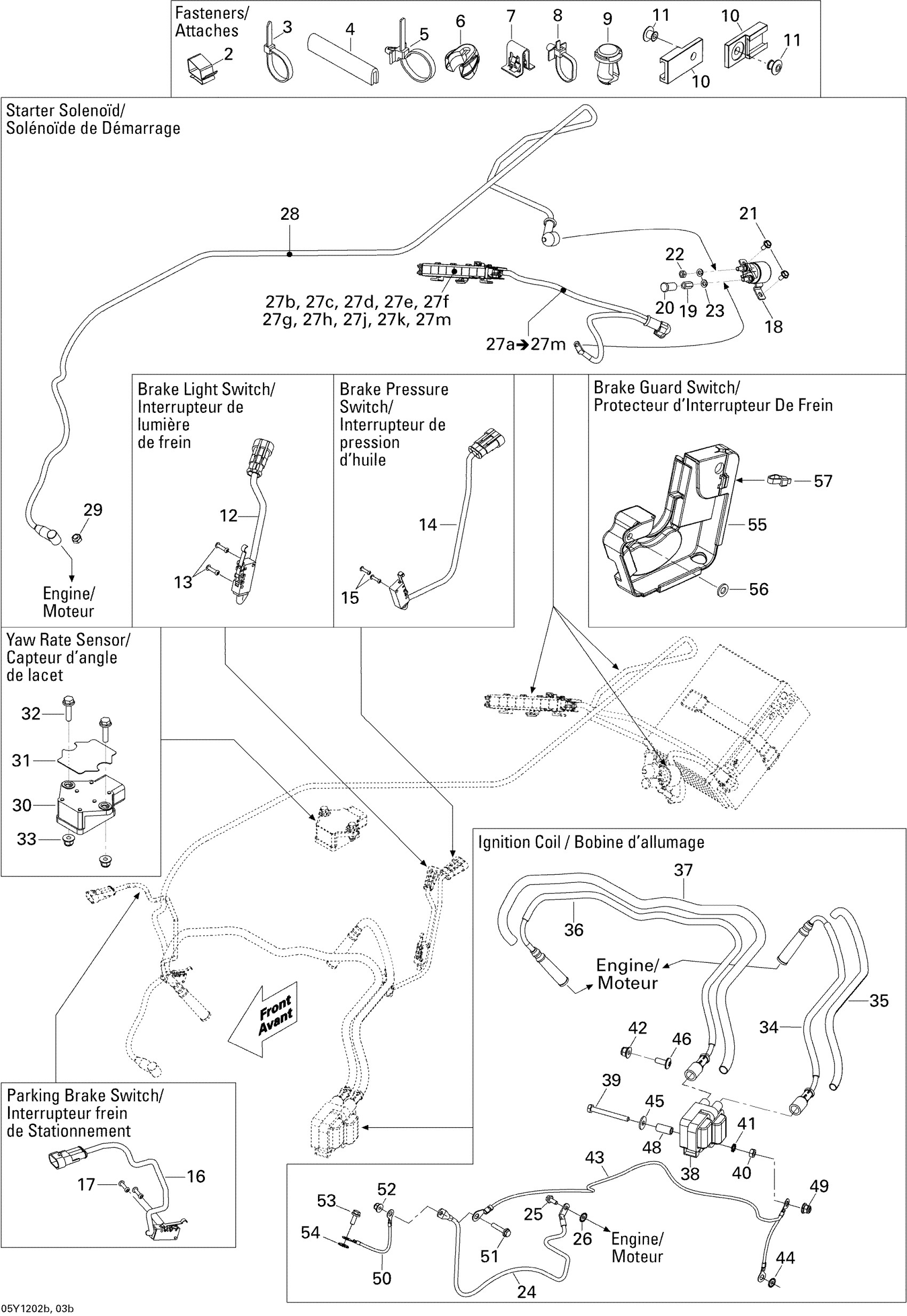

Can-Am Spyder RT SE5, 2012 10- Electrical Accessories 2 Diagram

#

Description
Price

2

Clip

414227300

$1.67

3

Tie-Rap 180 mm

414115200

$0.11

3

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4

Trim 1000Mm Long

219704354

$15.99

5

Tie-Rap 173 mm

293750009

$1.04

6

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

7

Edge Clip

517302785

$0.88

8

UNLOCKING CLIP - Call your local BRP dealership

710002197

Unavailable

9

Tuflok Plastic Rivet

293150230

$1.47

10

Clip

270000141

$11.49

11

Pop Rivet 3/16"

390402400

$0.35

12

Brake Light Switch Ass'y

710001357

$46.49

13

Pop Rivet

293150150

$2.40

14

Brake Pressure Switch Ass'y

710001379

$43.49

15

Pop Rivet

293150150

$2.40

16

Brake Pressure Switch Ass'y

710001379

$43.49

17

Pop Rivet

293150150

$2.40

18

Starter Relay

710007777

$48.49

19

HEX. COUPLING NUT M6 X 1.0 X 18 - Call your local BRP dealership

250100117

Unavailable

20

BOOT - Call your local BRP dealership

710001610

Unavailable

21

Hex. Flange Screw M6 X 12

210261250

$1.90

22

Hex. Nut M6

232061600

$1.15

23

Lock Washer Helical M6

234161601

$1.15

24

ENGINE GROUND CABLE - Call your local BRP dealership

710000177

Unavailable

25

Hex. Flange Screw M6 X 16

207661644

$0.74

26

Lock Washer Serrated M6

250200041

$1.15

27a

POSITIVE CABLE (BAT/SOL/FUS) - Call your local BRP dealership | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

710002079

Unavailable

27b

Was 710000483 Heat Shrink Tubing

219704447

$78.99

27c

Shrink Tubing | XT Models

275500578

Unavailable

27d

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

27e

Protector Cap

710000495

$10.99

27f

Open Barrel

710000539

Unavailable

27g

Fuse, 25 AMP

710001046

$3.91

27h

Fuse, 40 AMP

710001047

$11.80

27j

Fuse, 20 AMP

710001078

$1.90

27k

Fuse 30 amp.

710001200

$7.20

27m

Fuse, 60 AMP

710002054

$22.49

28

POSITIVE CABLE - Call your local BRP dealership

710000794

Unavailable

29

Elastic Stop Nut M6

232561414

$0.55

30

YAW ANGLE SENSOR - Call your local BRP dealership

710002051

Unavailable

31

RUBBER BUMPER - Call your local BRP dealership

293830127

Unavailable

32

Hex. Flange Screw M6 X 25

207662544

$0.64

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Cable Ass'y

707000399

$71.99

35

Tubing 10 MM 1000MM Long

219704407

$2.79

36

Cable Ass'y

707000518

$65.99

37

Tubing 10 MM 1000MM Long

219704407

$2.79

38

Ignition Coil

278001546

$158.99

39

Hex. Screw M6 X 55

207065544

$2.11

40

Hex. Nut M6

232061414

$0.53

41

External Serrated Lock Washer 6 mm

234461608

$1.15

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

43

GROUND CABLE - Call your local BRP dealership

710002091

Unavailable

44

Lock Washer Serrated M6

250200041

$1.15

45

Flat Washer 6 mm

234062410

$0.77

46

Hex. Flange Screw M6 X 20

207662044

$2.00

48

SPACER - Call your local BRP dealership

512059812

Unavailable

49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

50

GROUND HARNESS - Call your local BRP dealership

710001165

Unavailable

51

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

53

Hex. Flange Screw M6 X 16

207661644

$0.74

54

Lock Washer Serrated M6

250200041

$1.15

55

BOOT GUARD BRAKE SWITCH - Call your local BRP dealership

710002322

Unavailable

56

Flat Washer 6 mm

234061410

$1.36

57

Tie-Rap 180 mm

414115200

$0.11
