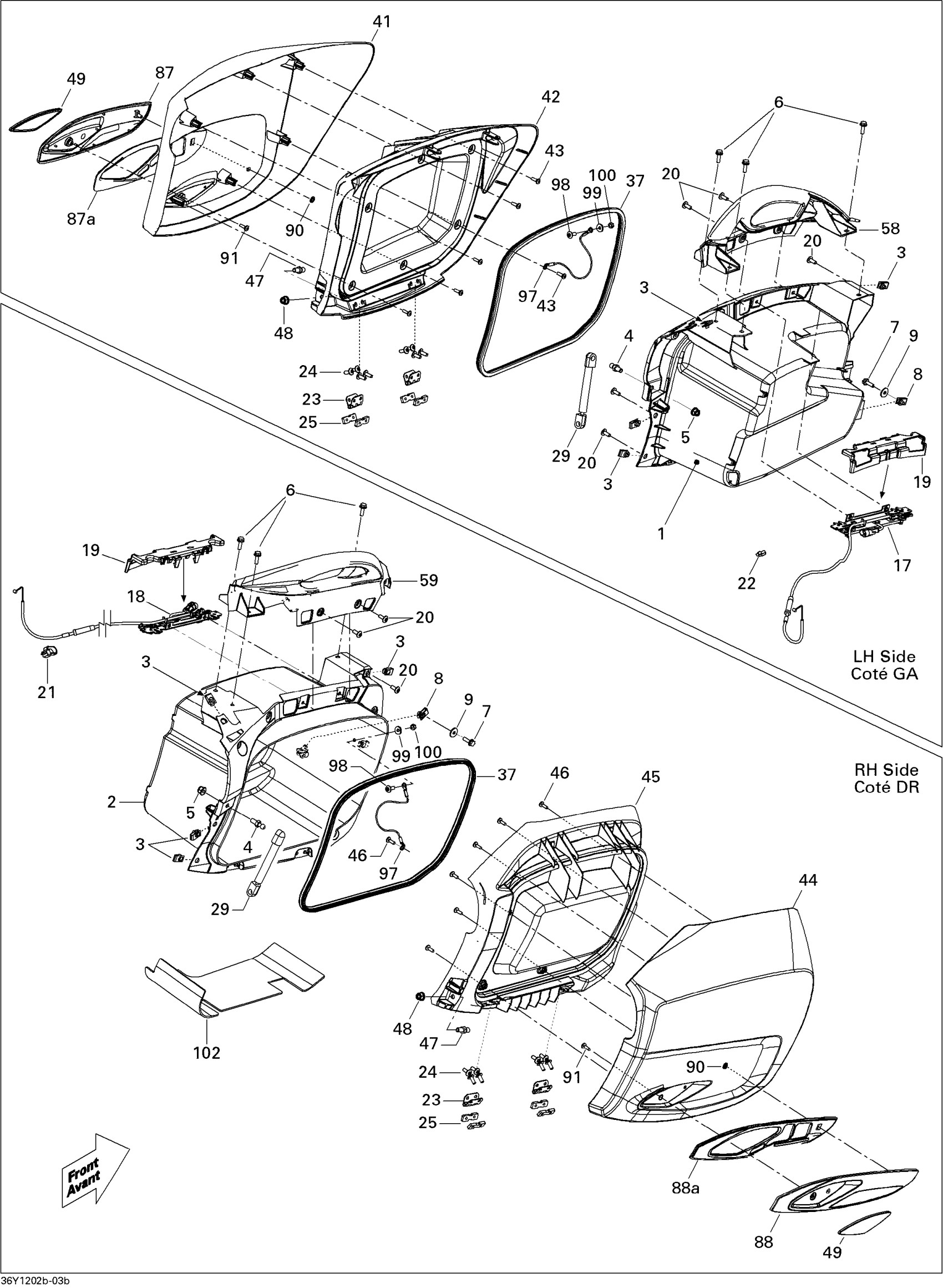

Can-Am Spyder RT SE5, 2012 09- Luggages Lateral Diagram

#

Description
Price

1

LH CARGO COMPARTMENT - Call your local BRP dealership

708300885

Unavailable

2

RH CARGO COMPARTMENT - Call your local BRP dealership

708300886

Unavailable

3

Panel Nut M6 X 1.0

250100198

$2.11

4

Ball Head Stud

250300016

$14.81

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Hex. Flange Screw M6 X 20

207662044

$2.00

7

Hex. Flange Screw M6 X 20

207662044

$2.00

8

Panel Nut M6 X 1.0

250100198

$2.11

9

Flat Washer

224061201

$1.37

17

Latch Ass'y LH

708301640

$154.99

18

Latch Ass'y RH

708301641

$154.99

19

Latch Protector

708300514

$15.99

20

Torx Truss Screw M6 X 16

250000348

$2.11

21

Tie-Rap 180 mm

414115200

$0.11

22

Tie-Rap 180 mm

414115200

$0.11

23

Hinge

708300006

$25.99

24

Torx Truss Screw M6 X 16

250000348

$2.11

25

Back Plate Support

708300129

$11.49

29

Gaz Shock

708300011

$79.99

37

Seal, 1PC = 3M

293830188

$39.99

41

COVER TRUNK LH B-308 - Call your local BRP dealership | Blue Model

708300681

Unavailable

41

COVER TRUNK LH B-176 - Call your local BRP dealership | Viper Red Model

708300695

Unavailable

41

COVER TRUNK LH B-321 - Call your local BRP dealership | RT (STD), RT-S, Pure Magnesium Model

708300687

Unavailable

41

COVER TRUNK LH B-321 - Call your local BRP dealership | RT-S, Magnesium Model

708300690

Unavailable

42

Cover Interior LH

708301023

$83.99

43

Torx Screw K50 X 16

250000720

$1.69

44

COVER TRUNK RH B-308 - Call your local BRP dealership | Except RT-S, Blue Model

708300682

Unavailable

44

COVER TRUNK RH B-176 - Call your local BRP dealership | Viper Red Model

708300694

Unavailable

44

COVER TRUNK RH B-321 - Call your local BRP dealership | RT (STD), RT-S, Pure Magnesium Model

708300688

Unavailable

44

COVER TRUNK RH B-321 - Call your local BRP dealership | RT-S, Magnesium Model

708300691

Unavailable

45

Cover Interior RH

708301022

$83.99

46

Torx Screw K50 X 16

250000720

$1.69

47

Ball Head Stud

250300016

$14.81

48

Hex. Flange Elastic Nut M8

233281414

$1.47

49

Amber, Lateral Reflector

705002423

$15.49

49

Red, Lateral Reflector

705003412

$15.49

58

LH Passenger Handle

708300022

$105.99

58

LH Passenger Handle Heat Ass'y | Includes 152 to 153

708300496

$142.99

59

RH Passenger Handle

708300024

$105.99

59

RH Passenger Handle Heat Ass'y | Includes 155 to 157

708300498

$142.99

87

TRIM TRUNK LH CHROME - Call your local BRP dealership | RTS

708300062

Unavailable

87a

Moulding Trim LH | Model-Japan

708300650

$22.99

88

TRIM TRUNK RH CHROME - Call your local BRP dealership | RTS

708300063

Unavailable

88a

RH Moulding Trim | Model-Japan

708300651

$22.99

90

Push Nut

732610072

$2.19

91

Torx Screw K50 X 16

250000720

$1.69

97

Retainer Cable

708300385

$38.99

98

Torx Truss Screw M6 X 16

250000348

$2.11

99

Flat Washer, Stainless/Neoprene

211200055

$0.73

100

Hex. Nut M6

232061414

$0.53

102

Heat Shield

705004173

$47.99
