Description

Price

1

Knob

705003842

$5.82

2

Angled Knob

705003746

$5.69

3

LH RADIATOR BEZEL - Call your local BRP dealership

705005008

Unavailable

4

LH RADIATOR GUARD - Call your local BRP dealership

705005009

Unavailable

3

RH RADIATOR BEZEL - Call your local BRP dealership

705002758

Unavailable

4

RH RADIATOR GUARD - Call your local BRP dealership

705003793

Unavailable

5a

Edge Clip

517302785

$0.88

5b

Flat Clip

705004838

$7.73

6a

Hex. Flange Screw M6 X 16

210261650

$1.67

6b

Stainless Steel Flat Washer

234062670

$2.11

7

Torx Truss Screw M6 X 20

250000350

$5.29

8a

Hex. Flange Screw M6 X 25

207662544

$0.64

8b

Flat Washer 6 mm

234062410

$0.77

8c

Push Nut

732610072

$2.19

9a

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9b

Panel Nut M6 X 1.0

250100198

$2.11

10

Panel_Body Lh B-308 | Blue Model

705009003

$249.99

10

Bare, LH Side Panel | Model-Intense Red Pearl

705008991

$114.99

10

Vegas White Pearl, LH Side Panel | Model-White

705008999

$249.99

11

Side Foam LH

705009311

$20.99

12

Chrome, Side Panel Cap Kit (LH&RH) | Model-RT LTD

219400195

$104.99

12a

Rubber Pad

293830143

$18.49

13

Panel_Body Rh B-308 | Blue Model

705009004

$249.99

13

Panel_Body Rh B-330 | Bronze Model

705009002

$249.99

13

Panel_Body Rh B-321 | Pure Magnesium Model

705008994

$264.99

13

Bare, RH Side Panel | Model-White

705008992

$114.99

13

PANEL_BODY RH B-176 - Call your local BRP dealership | Viper Red Model

705008998

Unavailable

14

Side Foam RH

705009312

$20.99

15

Chrome, Side Panel Cap Kit (LH&RH) | Model-RT LTD

219400195

$104.99

16

Torx-Truss Pt K40 X 16

250000759

$2.11

15a

Rubber Pad

293830143

$18.49

17

LH Support

705009063

$119.99

18

Tuflok Plastic Rivet

293150230

$1.47

19a

Grommet Ass'y

705005055

$13.49

19b

Panel Nut M5 X 0.8

250000958

$4.23

19c

Hex. Screw M5 X 20

207152060

$1.47

20

Grommet

705003264

$4.09

21

Panel Nut M6 X 1.0

250100198

$2.11

22

RH Support

705009064

$124.99

23a

Grommet Ass'y

705005055

$13.49

23b

Panel Nut M5 X 0.8

250000958

$4.23

23c

Hex. Screw M5 X 20

207152060

$1.47

24

Grommet

705003264

$4.09

25

Panel Nut M6 X 1.0

250100198

$2.11

26

Panel Nut M6 X 1.0

250100198

$2.11

27

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

28

Washer M6

250200029

$2.50

29

LH Lower Pannel

705006820

$78.99

30

LH ROCKER PANEL FOAM - Call your local BRP dealership

518324755

Unavailable

31

RH LOWER PANEL - Call your local BRP dealership

705006187

Unavailable

32

RH LOWER PANEL FOAM - Call your local BRP dealership

518324756

Unavailable

33

Tuflok Plastic Rivet

293150230

$1.47

34

Panel Nut M8

250100111

$4.29

35

LH Water Deflector Ass'y

705003759

$45.99

36

Hex.Flange Screw M5 X 20

207652044

$1.90

37

Panel Nut M5 X 0.8

250000958

$4.23

38

RH Water Deflector Ass'y

705003760

$45.99

39

Hex.Flange Screw M5 X 20

207652044

$1.90

40

Panel Nut M5 X 0.8

250000958

$4.23

41

Tuflok Plastic Rivet

293150230

$1.47

42

Panel Fastener

518321954

$7.69

43

LH DEFLECTOR PANEL - Call your local BRP dealership

705002755

Unavailable

44

RH DEFLECTOR PANEL - Call your local BRP dealership

705002756

Unavailable

45

Hex. Flange Screw M6 X 16

210261650

$1.67

46

LH UPPER LATERAL PANEL, BLUE - Call your local BRP dealership | Blue Model

705006172

Unavailable

46

LH UPPER LATERAL PANEL, BRONZE - Call your local BRP dealership | Bronze Model

705006173

Unavailable

46

Magnesium LH Lateral Panel | Pure Magnesium Model

705006175

$359.99

46

White LH Lateral Panel | Model-White

705006178

$359.99

46

LH UPPER LATERAL PANEL, RED - Call your local BRP dealership | Viper Red Model

705006180

Unavailable

47

LH FOAM - Call your local BRP dealership

705009313

Unavailable

48

RH UPPER LATERAL PANEL, BLUE - Call your local BRP dealership | Blue Model

705005515

Unavailable

48

RH UPPER LATERAL PANEL, BRONZE - Call your local BRP dealership | Bronze Model

705006174

Unavailable

48

RH UPPER LATERAL PANEL, MAGNESIUM - Call your local BRP dealership | Pure Magnesium Model

705006176

Unavailable

48

White RH Upper Lateral Panel | Model-White

705006177

$359.99

48

RH UPPER LATERAL PANEL, RED - Call your local BRP dealership | Viper Red Model

705006179

Unavailable

49

RH FOAM - Call your local BRP dealership

705009314

Unavailable

50

Oval Washer

705000321

$5.61

51

Panel Nut M6 X 1.0

250100198

$2.11

52

Torx Truss Screw M6 X 20

250000350

$5.29

53

Stainless Steel Flat Washer

234062670

$2.11

54

Tuflok Plastic Rivet

293150230

$1.47

55

Torx Screw M6 X 12

250000454

$4.44

56

Torx Screw, K50X16

250000459

$4.29

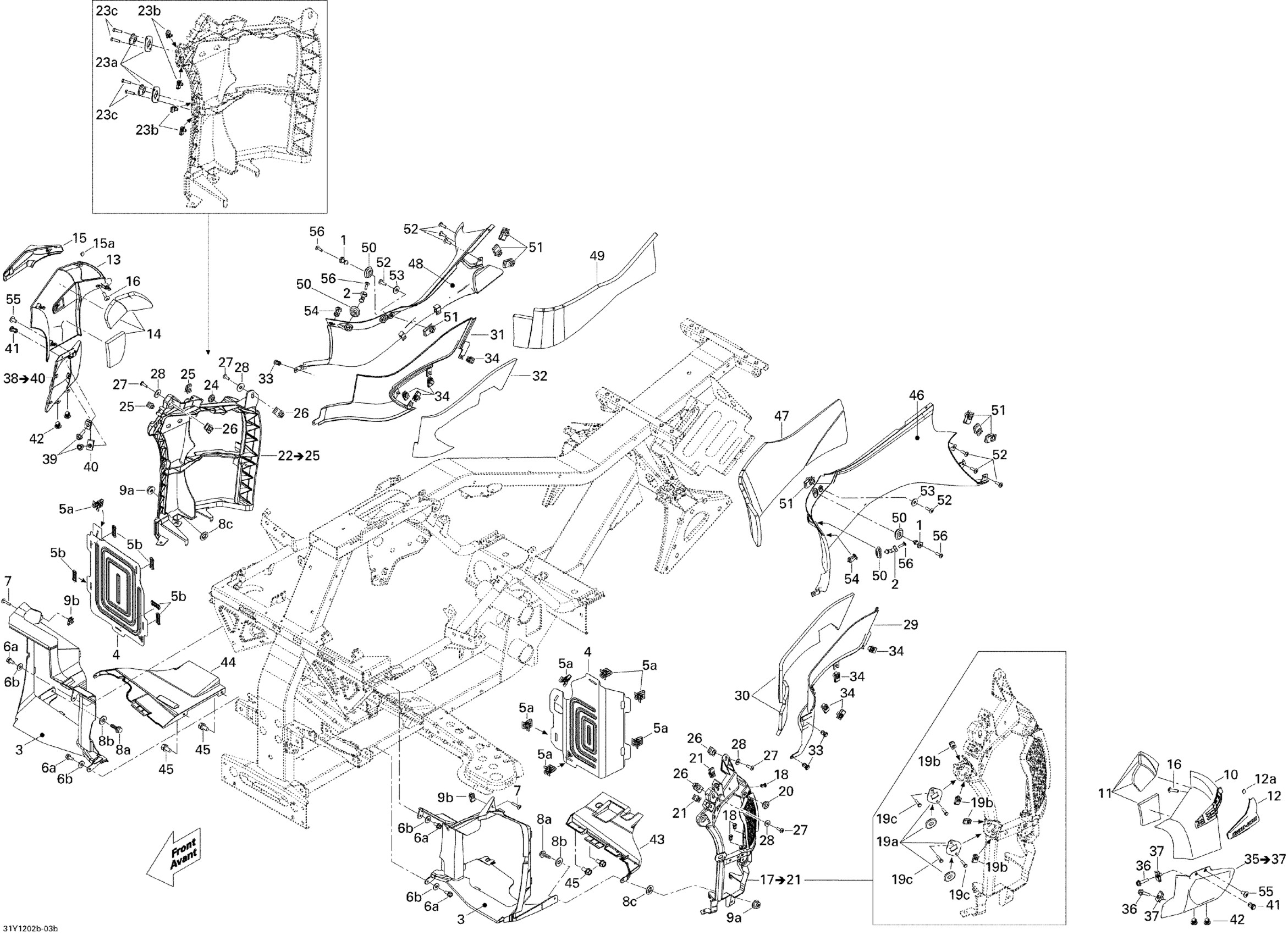

Can-Am Spyder RT SE5, 2012 09- Body And Accessories Side Diagram
