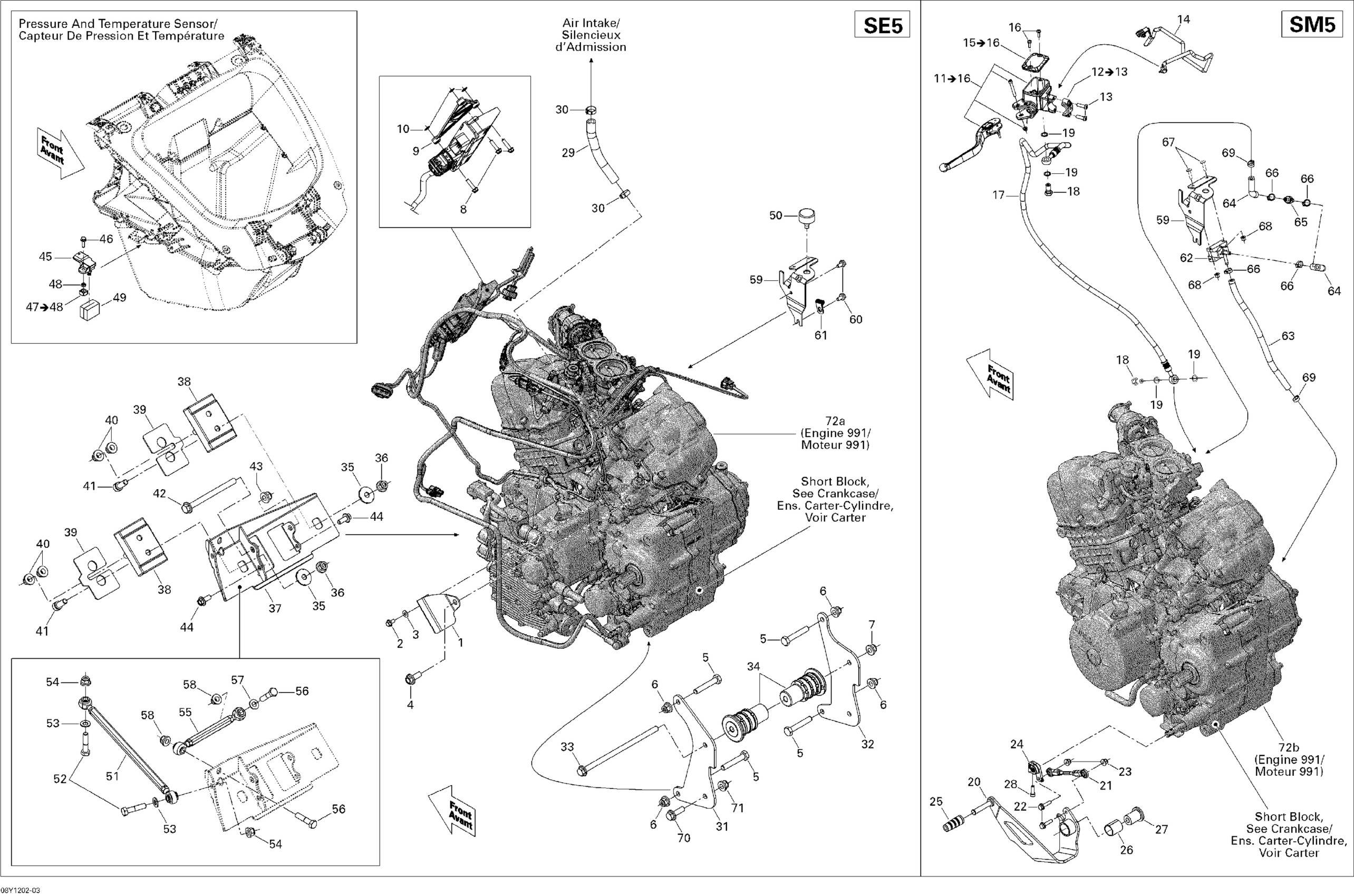

Can-Am Spyder RT SE5, 2012 01- Engine SE5 Diagram

#

Description
Price

1

DEFLECTOR - Call your local BRP dealership

707000845

Unavailable

2

Hex. Flange Screw M6 X 12

207661244

$2.11

3

Flat Washer

224061121

$0.53

4

Hex. Flange Screw M10 X 25

207602544

$1.69

5

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

6

Hex. Flange Elastic Nut M10

233201436

$2.11

7

Hex. Flange Elastic Nut M10

233201436

$2.11

8

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

9

Spacer

710001886

Unavailable

10

Push Nut

732610072

$2.19

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Not Available As Spare Parts

XXX

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

30

Oetiker Clamp

293650186

$3.99

31

LH SUPPORT - Call your local BRP dealership

707000510

Unavailable

32

RH SUPPORT - Call your local BRP dealership

707000512

Unavailable

33

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

34

RUBBER MOUNT - Call your local BRP dealership

707000814

Unavailable

35

Lock Washer

512056700

$3.17

36

Hex. Flange Elastic Nut M10

233201436

$2.11

37

FRONT ENGINE SUPORT - Call your local BRP dealership

707001072

Unavailable

38

RUBBER MOUNT - Call your local BRP dealership

707000815

Unavailable

39

Shim

707001074

Unavailable

40

Hex. Flange Elastic Nut M10

233201436

$2.11

41

Socket Head Screw M10 X 25

205002544

$1.48

42

Hex. Flange Screw M10 X 125

230602546

$7.41

43

Hex. Flange Elastic Nut M10

233201436

$2.11

44

Hex. Flange Screw M8 X 20

207682044

$1.15

45

Pressure And Temperature Sensor

707000995

$88.99

46

Hex. Flange Screw M6 X 20

207662084

$1.69

47

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

48

Hex. Elastic Stop Nut M6

232561600

$1.15

49

Foam Filter

707000586

$5.50

50

Rubber Stopper

708000758

$12.99

51

TIE ROD ASS'Y - Call your local BRP dealership

707000816

Unavailable

52

Hex. Screw M10 X 45

207004544

$1.69

53

Flat Washer 10 mm

234001410

$1.26

54

Hex. Flange Elastic Nut M10

233201436

$2.11

55

TIE ROD ASS'Y - Call your local BRP dealership

707001001

Unavailable

56

Hex. Screw M10 X 45

207004544

$1.69

57

Flat Washer 10 mm

234001410

$1.26

58

Hex. Flange Elastic Nut M10

233201436

$2.11

59

Intake Support

707000756

$11.07

60

Hex. Flange Screw M6 X 12

207661244

$2.11

61

Bracket

415052400

$4.39

62

Not Available As Spare Parts

XXX

Unavailable

63

Not Available As Spare Parts

XXX

Unavailable

64

Not Available As Spare Parts

XXX

Unavailable

65

Not Available As Spare Parts

XXX

Unavailable

66

Not Available As Spare Parts

XXX

Unavailable

67

Not Available As Spare Parts

XXX

Unavailable

68

Not Available As Spare Parts

XXX

Unavailable

69

Not Available As Spare Parts

XXX

Unavailable

70

Hex. Flange Screw M10 X 25

207602544

$1.69

71

Hex. Flange Elastic Nut M10

233201436

$2.11

72a

Engine 991

707001125

Unavailable

72b

Not Available As Spare Parts

XXX

Unavailable
