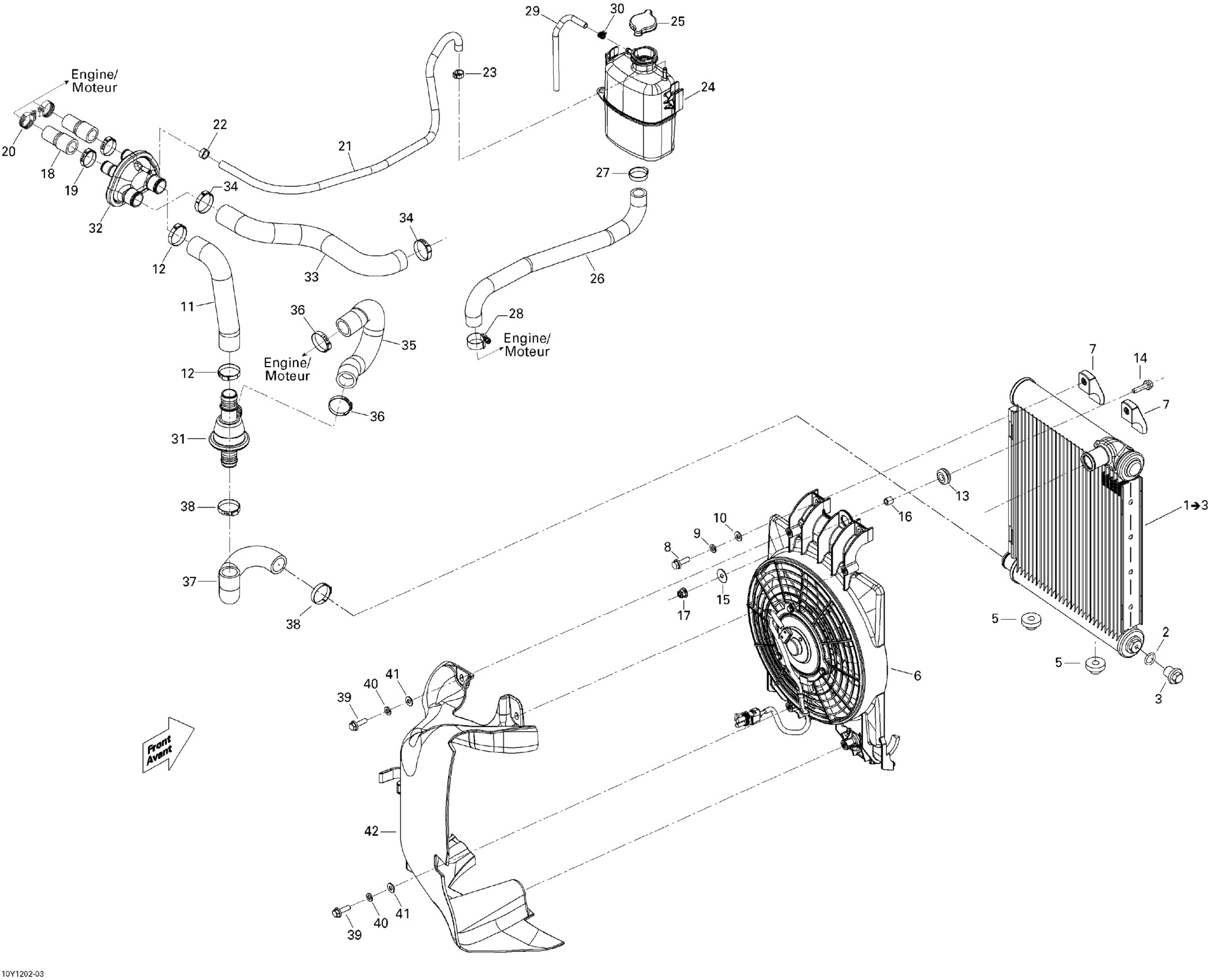

Can-Am Spyder RT SE5, 2012 01- Cooling System Diagram

#

Description
Price

1

Radiator | Includes 37 to 37b

709200337

$433.99

2

O-RING - Call your local BRP dealership

709200417

$6.29

3

Drain Plug

709200418

$13.75

5

Grommet

709200285

$9.69

6

FAN ASS'Y - Call your local BRP dealership

709200338

Unavailable

7

CLAMP BRACKET - Call your local BRP dealership

709200372

Unavailable

8

Hex. Flange Screw M6 X 20

207662044

$2.00

9

Lock Washer Helical M6

234161601

$1.15

10

Flat Washer

224061121

$0.53

11

HOSE - Call your local BRP dealership

709200215

Unavailable

12

Oetiker Gear Clamp 36.1MM

509000045

$8.29

13

Grommet

709000582

$4.69

14

Hex. Flange Screw M6 X 25

207662544

$0.64

15

Flat Washer

224060201

$1.26

16

Bushing

293900105

$7.65

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

HOSE_WATER PUMP UP FORMED - Call your local BRP dealership

709200144

Unavailable

19

Crimp Clamp

293650099

$4.29

20

Tridon Gear Clamp

293650173

$3.09

21

FORMED HOSE - Call your local BRP dealership

709200415

Unavailable

22

Oetiker Gear Clamp

293650025

$3.09

23

Oetiker Gear Clamp

293650025

$3.09

24

Coolant Tank

709201323

$80.99

25

Pressure Cap

509000187

$29.49

26

HOSE - Call your local BRP dealership

709200139

Unavailable

27

Oetiker Clamp

293650141

$4.29

28

Tridon Gear Clamp

293650051

$4.19

29

Polyurethane Hose 10000Mm Long

219704410

$56.99

30

Spring Clamp

414554800

$0.88

31

Thermostat Housing

709200384

$88.99

32

Connector

709200151

$19.49

33

COOLANT FORMED HOSE - Call your local BRP dealership

709200272

Unavailable

34

Oetiker Gear Clamp 36.1MM

509000045

$8.29

35

HOSE_WATER PUMP LWR FORMED - Call your local BRP dealership

709200259

Unavailable

36

Oetiker Gear Clamp 36.1MM

509000045

$8.29

37

HOSE_RADIATOR LWR FORMED - Call your local BRP dealership

709200301

Unavailable

38

Oetiker Gear Clamp 36.1MM

509000045

$8.29

39

Hex. Flange Screw M6 X 20

207662044

$2.00

40

Lock Washer Helical M6

234161601

$1.15

41

Flat Washer

224061121

$0.53

42

DEFLECTOR - Call your local BRP dealership

709200466

Unavailable
