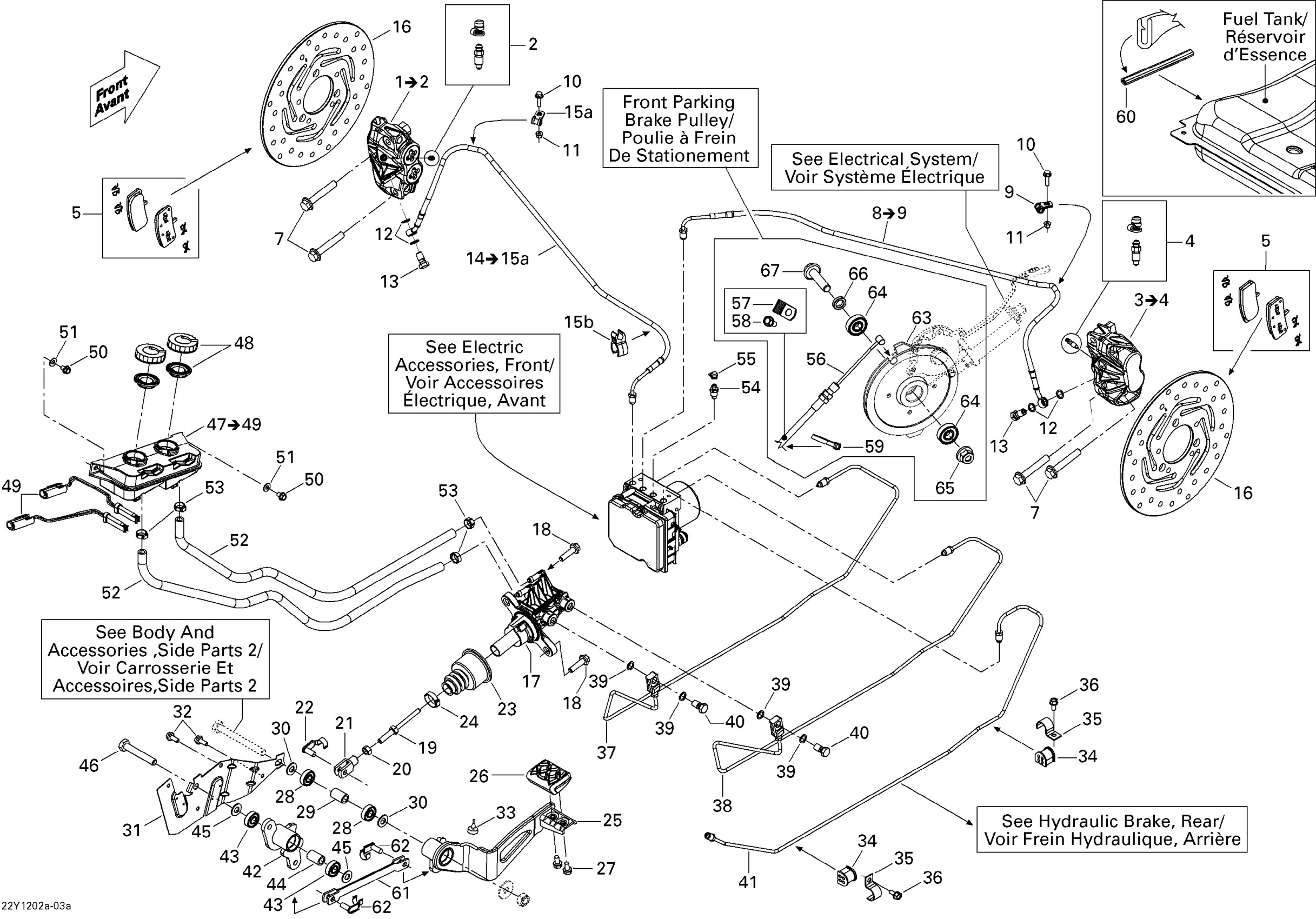

Can-Am Spyder RT Limited, 2012 06- Hydraulic Brake, Front Diagram

#

Description
Price

1

LH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 1 to 2

219800125

Unavailable

2

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

3

RH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 3 to 4

219800126

Unavailable

4

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

5

Pad Kit (4 Pads)

219800164

$154.99

7

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership

207506034

Unavailable

8

RH FRONT FLEXIBLE BRAKE LINE - Call your local BRP dealership | Includes 7 to 8

705600852

Unavailable

9

Clamp

293650256

$5.49

10

HEX. FLANGED SCREW M5 X 20 - Call your local BRP dealership

207652034

$1.99

11

Flange Elastic Nut M5

233251434

$2.00

12

Washer

414920600

$1.90

13

Banjo Bolt

414920500

$8.68

14

LH FRONT FLEXIBLE BRAKE LINE - Call your local BRP dealership | Includes 11 to 12

705600853

Unavailable

15a

Clamp

293650256

$5.49

15b

Hose Clip

705600854

Unavailable

16

FRONT BRAKE DISC - Call your local BRP dealership

705600435

Unavailable

17

Tandem Cylinder Master

705600722

$369.99

18

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

19

Piston Rod

705600468

$23.49

20

Hex. Nut M8

232081414

$0.72

21

Yoke

705600100

Unavailable

22

Pin

250400062

$4.54

23

Bellow

705600716

$12.10

24

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

25

BRAKE PEDAL - Call your local BRP dealership

705600920

Unavailable

26

Rubber Pad

705004933

$20.99

27

Hex. Flange Screw M6 X 12

210261250

$1.90

28

Bearing

705600458

$19.99

29

Bushing

705600541

$15.36

30

Washer

503183800

$3.28

31

TAB LOCK - Call your local BRP dealership

705601163

Unavailable

32

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

33

Rubber Stopper

708000759

$4.19

34

TUBE SUPPORT - Call your local BRP dealership

705600843

Unavailable

35

Clip

705600507

Unavailable

36

Hex. Flange Screw M6 X 12

210261250

$1.90

37

FRONT TANDEM RIGID TUBE - Call your local BRP dealership

705600721

Unavailable

38

REAR TANDEM RIGID TUBE - Call your local BRP dealership

705600742

Unavailable

39

Washer

414920600

$1.90

40

Banjo Bolt

414920500

$8.68

41

REAR RIGID TUBE - Call your local BRP dealership

705600834

Unavailable

42

Rocker Arm | RT

705600855

$49.99

43

Bearing

705600458

$19.99

44

Bushing

705600541

$15.36

45

Washer

503183800

$3.28

46

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

47

OIL RESERVOIR - Call your local BRP dealership | Includes 40 to 41

219800324

Unavailable

48

Cap And Diaphragm Kit

219800058

$19.49

49

Oil Level Sensor

515176508

$31.99

50

Hex. Flange Screw M6 X 12

210261250

$1.90

51

Flat Washer

224061121

$0.53

52

HOSE 8MM 3000MM LONG - Call your local BRP dealership

219704417

Unavailable

53

Crimp Clamp, 15.3-706R

293650047

$3.29

54

Bleeder Screw

705600502

$11.11

55

BLEEDER CAP - Call your local BRP dealership

705600554

Unavailable

56

Parking Brake Cable

707000927

$76.99

57a

Bracket

415052400

$4.39

57b

Hex. Flange Screw M6 X 20

207662034

$2.11

58

Hexagonal Head Screw

210262050

$2.11

59

Tie-Rap 180 mm

414115200

$0.11

60

Trim 1000Mm Long

219704354

$15.99

61

Connecting Rod | RT

705600959

$54.99

62

Pin

250400062

$4.54

63

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$89.99

64

Bearing

705600458

$19.99

65

Hex. Flange Elastic Nut M10

233201436

$2.11

66

Bushing

293900087

$7.90

67

Hex. Flange Screw M10 X 40

207604044

$2.11
