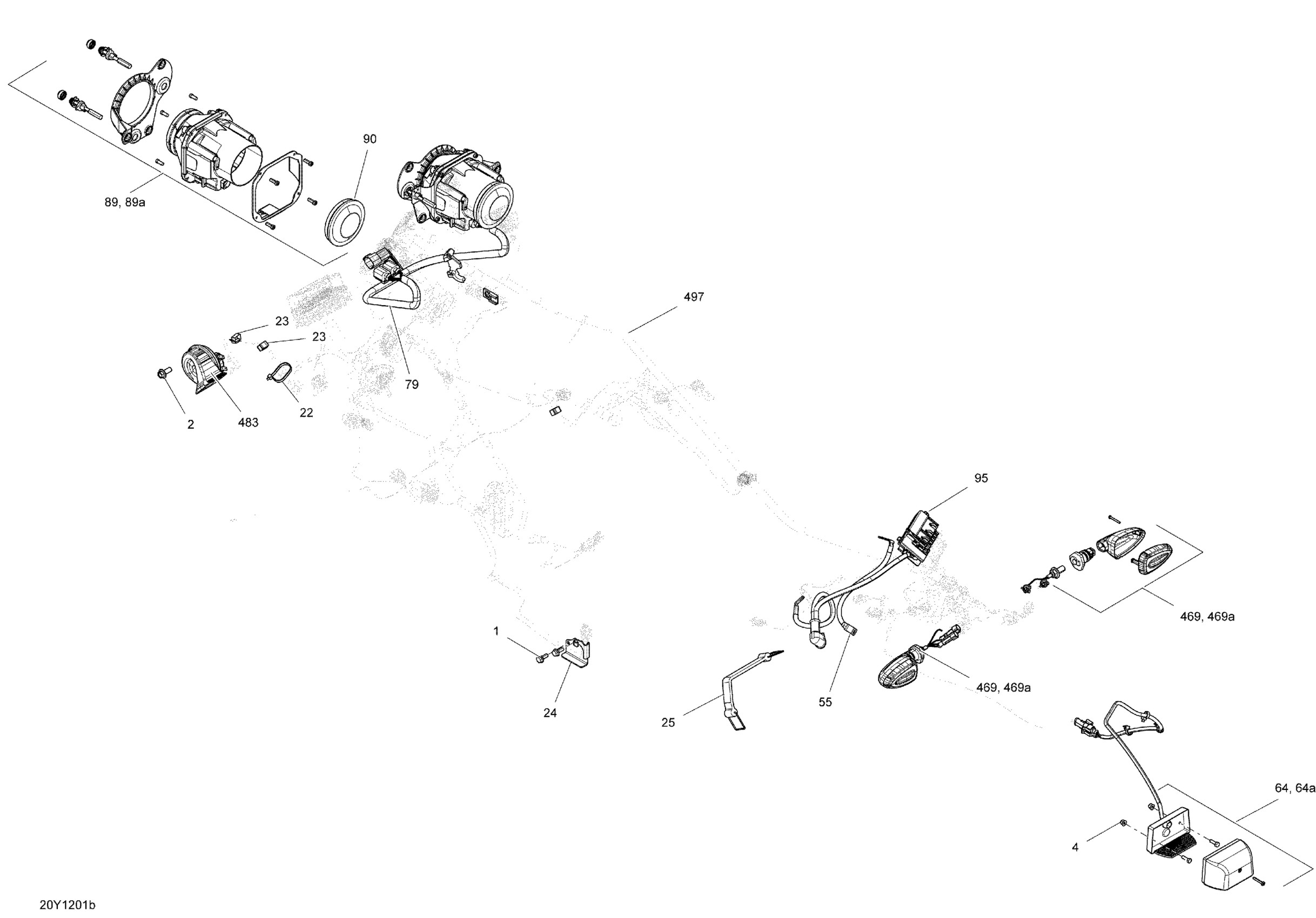

Can-Am Spyder RS SM5, 2012 10- Electrical System Lighting North America (SM5) Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Screw M8 X 20

207682044

$1.15

4

Elastic Flange Nut M5

233251494

$2.11

22

Tie-Rap 180 mm

414115200

$0.11

23

Clip

414227300

$1.67

24

REVERSE CABLE SUPPORT - Call your local BRP dealership

420251565

Unavailable

25

Battery Strap

515176044

$18.49

55

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.49

64

Licence Light | Includes 24 to 25

710001994

$74.99

79

BEAM HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 908

710000792

Unavailable

89

LH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710004952

Unavailable

89

RH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710004951

Unavailable

90

Cap

219400070

$18.49

95

POSITIVE CABLE (BAT/SOL/FUS) - Call your local BRP dealership | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

710002079

Unavailable

469

LH Rear Turn Signal Ass'y

710001290

$68.99

469

RH Rear Turn Signal Ass'y

710001337

$68.99

483

HORN - Call your local BRP dealership

710004229

$28.99

497

WIRING HARNESS_CHASSIS - Call your local BRP dealership | Includes 1 to YRS

710001730

Unavailable

469a

Bulb 12V/10W, Amber

219800039

$5.29

64a

Bulb 12V 10W | Not Shown

415129261

$2.46

89a

Halogen Bulb

219400069

$19.99
