Description

Price

1

Steel Black Bumper Cover | Model-RS STD

705006270

$294.99

1

Bumper Cover, Green | RS-S Green Model

705006267

$349.99

1

Red Dragon Bumper Cover | Model-Red Dragon

705006268

$349.99

1

Bumper Cover, Magnesium | RS-S Magnesium-Black Model

705006269

$349.99

2

Panel Nut M6 X 1.0

250100198

$2.11

3

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

4

Tuflok Plastic Rivet

293150230

$1.47

5

Pearl White Front Fascia | Model-Vegas White Pearl

705003875

$104.99

5

Front Fascia, Metallic Black | GS Black A19N Model

705004573

$119.99

5

Steel Black Front Fascia | Model-Steel Black Met.

705004572

$119.99

6

Vegas White Pearl, Hood | Model-Vegas White Pearl

705007988

$579.99

6

Hood | GS Black A19N Model

705008055

$609.99

6

Steel Black Hood | Model-Steel Black Met.

705007992

$659.99

7

Was 293250240 Neoprene Seal

219704451

$60.49

8

FRONT ARM - Call your local BRP dealership

269501482

$19.99

9

Hex. Screw M6 X 100

230060060

$7.41

11

REAR ARM - Call your local BRP dealership

269501481

Unavailable

12

Hex. Screw M6 X 150

230065060

$10.16

13

Hex. Screw M6 X 55

207065544

$2.11

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

16

Sleeve

269500706

$4.65

17

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

18

Lug

705002223

$25.99

19

Hex. Jam Nut M8

232180600

$0.67

20

Flat Washer 8 mm

234081410

$0.83

21a

Latch

705007379

$28.99

21b

Spring

705003911

$3.99

22

Hex. Flange Screw M6 X 35

207663544

$0.90

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

24

Hood Cable

517303484

$45.99

25

Front Storage Compartment

705005908

$429.99

26

Dual Lock Velcro Washer 3/4"

293740028

$4.19

27

Rubber Bumper

293830005

$8.09

28

Hexagonal Head Screw

210262050

$2.11

29

Oval Washer

705000321

$5.61

31

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

32

BLACK LH FRONT PANNEL - Call your local BRP dealership | Model-Steel Black Met. Brezil

705007323

Unavailable

32

PANEL_BODY FL B-313 - Call your local BRP dealership | Pearl White

705006882

$319.99

32

LH FRONT PANNEL, GREEN - Call your local BRP dealership | RS-S Green Model

705006880

Unavailable

32

LH FRONT PANEL, RED - Call your local BRP dealership | RS-S Red Model

705006235

Unavailable

32

LH Front Pannel, Magnesium | RS, Magnesium Model

705005557

$319.99

33

LH Air Duct | Model-North America

705001541

$89.99

34

LH HEADLAMP BEZEL - Call your local BRP dealership | Model-Australie, Brezil, Europe

705001469

Unavailable

35

BLACK LH HEADLAMP SUPPORT - Call your local BRP dealership | Model-Australie, Brezil, Europe

705004796

Unavailable

36

LH FRONT PANEL FOAM - Call your local BRP dealership

518325515

Unavailable

37

Black RH Front Pannel | Model-Steel Black Met. Brezil

705007324

$329.99

37

RH Front Bare Panel | Model-Cognac Brezil

705005591

$88.99

38

Panel Nut M6 X 1.0

250100198

$2.11

39

Torx Truss Screw M6 X 20

250000350

$5.29

40

Plastic Washer

705003207

$0.80

41

Tuflok Plastic Rivet

293150230

$1.47

42

RH Air Duct | Model-North America

705001543

$89.99

43

RH Headlamp Bezel | Model-Australie, Brezil, Europe

705001470

$33.99

44

BLACK RH HEADLAMP SUPPORT - Call your local BRP dealership | Model-Australie, Brezil, Europe

705004797

Unavailable

45

Clip

414479100

$1.90

45a

Hex. Flange Screw M8 X 25

207682544

$1.35

46

RH FRONT PANEL FOAM - Call your local BRP dealership

518325516

Unavailable

47

Skid Plate

705002837

$68.99

48

Torx Screw M6 X 25 | XT Models

250000728

$4.44

49

Panel Nut M6 X 1.0

250100198

$2.11

50

LH Painted Fender Front Support | Model-RS STD

705010102

$86.99

50

RH Painted Fender Front Support | Model-RS STD

705010103

$86.99

51

LH Rear Fender Support | Model-RS STD

705010740

$83.99

51

Right Fender Rear Support | Model-RS STD

705010741

$83.99

52

Central Front Fender Support | Model-RS STD

705002389

$62.99

53

Pearl White LH Front Fender | Model-RS STD Vegas White Pearl

705003904

$204.99

53

Pearl White RH Front Fender | Model-RS STD Vegas White Pearl

705003903

$309.99

53

LH Front Fender, Matte Black | GS Black A19N Model

705004617

$204.99

53

RH FRONT FENDER, MATTE BLACK - Call your local BRP dealership | RS-S Alloy Orange-Black Model

705004618

Unavailable

53

Bare, LH Front Fender | Model-RS STD Steel Black Met.

705003413

$194.99

53

RH Front Fender, Steel Black | Model-RS STD Steel Black Met.

705004616

$309.99

54

LH Mudguard | Model-RS STD

705001767

$51.99

54

RH Mudguard | Model-RS STD

705001768

$51.99

55

HEX. FLANGED SCREW S.GRIP M8 X 35 - Call your local BRP dealership

207583534

Unavailable

55a

BUSHING - Call your local BRP dealership

705600837

Unavailable

56

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

57

Hex. Flange Screw M6 X 20

207662084

$1.69

58

Panel Nut M6 X 1.0

250100198

$2.11

59

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

60

SERVICE CENTER - Call your local BRP dealership

705003025

Unavailable

61

Amber, Lateral Reflector

705002423

$15.49

62

Plastic Washer

705003207

$0.80

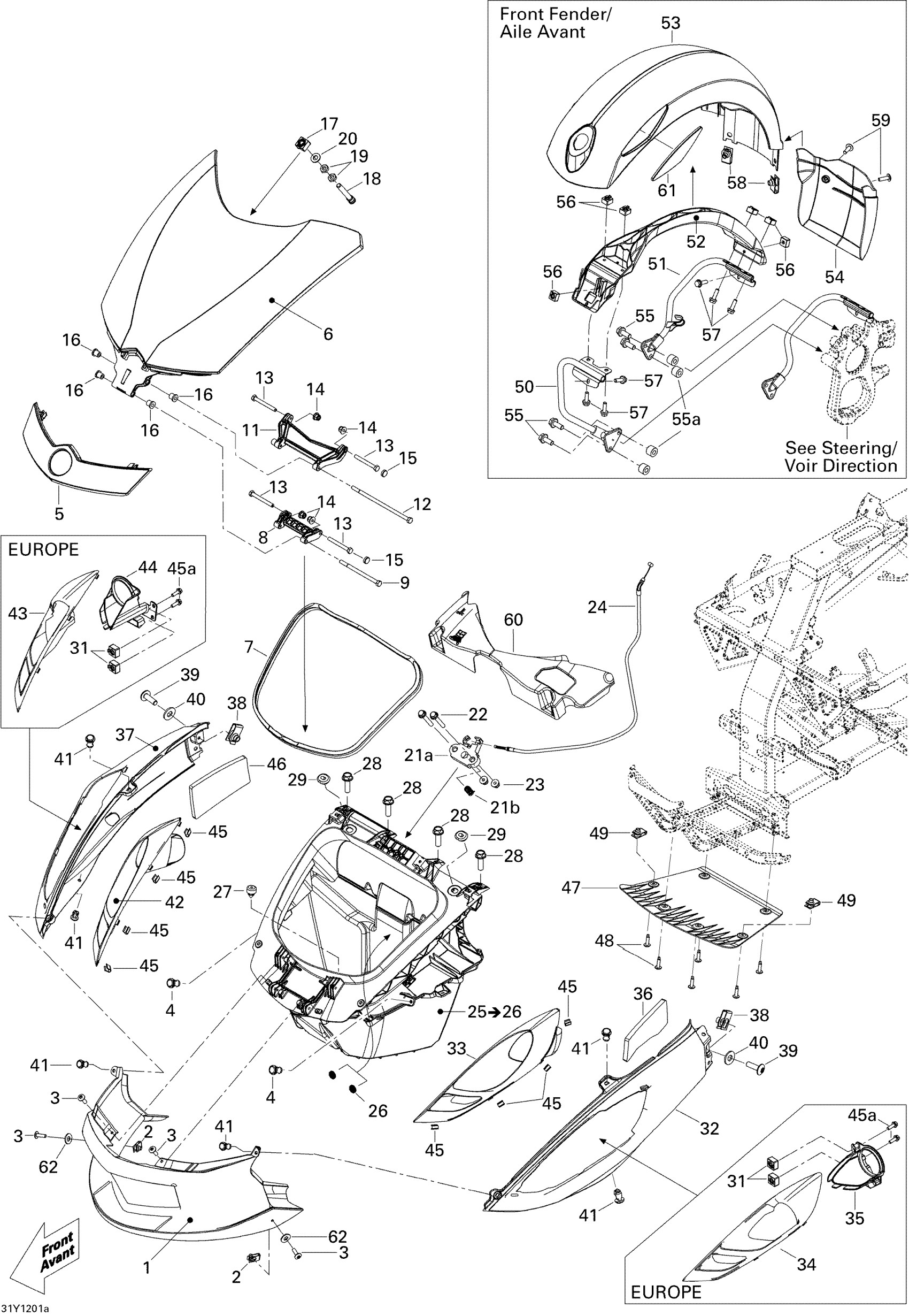

Can-Am Spyder RS SM5, 2012 09- Body And Accessories Front Diagram
