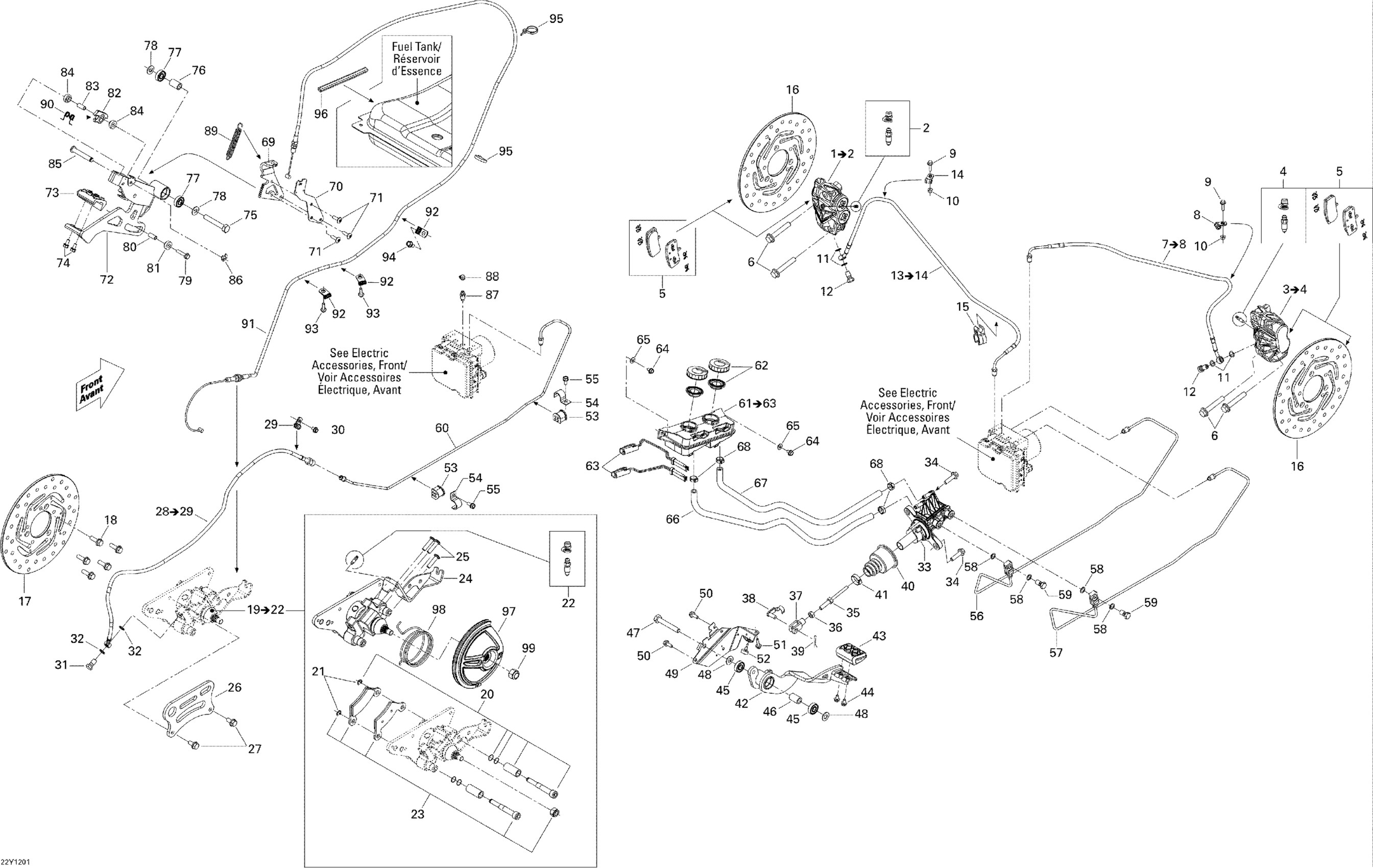

Can-Am Spyder RS SM5, 2012 06- Hydraulic Brake Diagram

#

Description
Price

1

LH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 1 to 2

219800125

Unavailable

2

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

3

RH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 3 to 4

219800126

Unavailable

4

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

5

Pad Kit (4 Pads)

219800164

$154.99

6

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership

207506034

Unavailable

7

RH FRONT FLEXIBLE BRAKE LINE - Call your local BRP dealership | Includes 7 to 8

705600852

Unavailable

8

Clamp

293650256

$5.49

9

HEX. FLANGED SCREW M5 X 20 - Call your local BRP dealership

207652034

$1.99

10

Flange Elastic Nut M5

233251434

$2.00

11

Washer

414920600

$1.90

12

Banjo Bolt

414920500

$8.68

13

LH FRONT FLEXIBLE BRAKE LINE - Call your local BRP dealership | Includes 11 to 12

705600853

Unavailable

14

Clamp

293650256

$5.49

15

Hose Clip

705600854

Unavailable

16

FRONT BRAKE DISC - Call your local BRP dealership

705600435

Unavailable

17

REAR BRAKE DISC - Call your local BRP dealership

705600591

$229.99

18

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

19

Rear Caliper | Includes 3 to 6

705600921

$719.99

20

BUSHING KIT - Call your local BRP dealership

219800032

Unavailable

21

RETAINING RING - Call your local BRP dealership

219800050

Unavailable

22

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

23

Rear Pad Kit

219800165

$77.99

24

CABLE SUPPORT - Call your local BRP dealership

705600974

Unavailable

25

THREAD FORMING SCREW 1/4-20 X 1 - Call your local BRP dealership

250000413

Unavailable

26

REAR CALIPER SUPPORT - Call your local BRP dealership

705600430

Unavailable

27

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

28

REAR BRAKE LINE - Call your local BRP dealership | Includes 8 to 9

705600813

Unavailable

29

Clamp

293650256

$5.49

30

Hex. Flange Screw M6 X 12

210261250

$1.90

31

Banjo Bolt

414920500

$8.68

32

Washer

414920600

$1.90

33

Tandem Cylinder Master

705600722

$369.99

34

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

35

Piston Rod

705600468

$23.49

36

Hex. Nut M8

232081414

$0.72

37

Yoke

705600100

Unavailable

38

Pin

250400062

$4.54

39

Cotter Pin

371800700

$1.01

40

Bellow

705600716

$12.10

41

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

42

BRAKE PEDAL - Call your local BRP dealership | Model-RS

705600633

Unavailable

43

Rubber Pad

705004933

$20.99

44

Hex. Flange Screw M6 X 12

210261250

$1.90

45

Bearing

705600458

$19.99

46

Bushing

705600541

$15.36

47

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

48

Washer

503183800

$3.28

49

TAB LOCK - Call your local BRP dealership

705600823

Unavailable

50

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

51

Hex. Forming Screw M6 X 10

210261050

$1.69

52

Rubber Stopper

708000759

$4.19

53

TUBE SUPPORT - Call your local BRP dealership

705600843

Unavailable

54

Clip

705600507

Unavailable

55

Hex. Flange Screw M6 X 12

210261250

$1.90

56

FRONT TANDEM RIGID TUBE - Call your local BRP dealership

705600721

Unavailable

57

REAR TANDEM RIGID TUBE - Call your local BRP dealership

705600742

Unavailable

58

Washer

414920600

$1.90

59

Banjo Bolt

414920500

$8.68

60

REAR RIGID TUBE - Call your local BRP dealership

705600834

Unavailable

61

OIL RESERVOIR - Call your local BRP dealership | Includes 40 to 41

219800324

Unavailable

62

Cap And Diaphragm Kit

219800058

$19.49

63

Oil Level Sensor

515176508

$31.99

64

Hex. Flange Screw M6 X 12

210261250

$1.90

65

Flat Washer

224061121

$0.53

66

HOSE 8MM 3000MM LONG - Call your local BRP dealership

219704417

Unavailable

67

HOSE 8MM 3000MM LONG - Call your local BRP dealership

219704417

Unavailable

68

Crimp Clamp, 15.3-706R

293650047

$3.29

69

PEDAL PLATE - Call your local BRP dealership

705600776

Unavailable

70

SWITCH PLATE - Call your local BRP dealership

705600584

Unavailable

71

Torx Truss Screw M6 X 20

250000350

$5.29

72

BRAKE PEDAL - Call your local BRP dealership

705600838

Unavailable

73

Rubber Pad

705004933

$20.99

74

Hex. Flange Screw M6 X 12

210261250

$1.90

75

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

76

Bushing

705600541

$15.36

77

Bearing

705600458

$19.99

78

Washer

503183800

$3.28

79

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

80

Bushing | Model-RS

705600588

$14.81

81

Bushing | Model-RS

705600587

$9.95

82

Key | Model-RS

705600524

$16.99

83

Bushing | Model-RS

705600588

$14.81

84

Bushing | Model-RS

705600587

$9.95

85

Pin | Model-RS

293370064

$17.99

86

Circlip | Model-RS

414439000

$4.23

87

Bleeder Screw

705600502

$11.11

88

BLEEDER CAP - Call your local BRP dealership

705600554

Unavailable

89

SPRING - Call your local BRP dealership | Model-RS

707000543

Unavailable

90

Spring | Model-RS

705600525

$15.36

91

BRAKE CABLE - Call your local BRP dealership

707000812

Unavailable

92

Bracket

415052400

$4.39

93

Hex. Flange Screw M6 X 20

207662034

$2.11

94

Hex. Flange Screw M6 X 12

210261250

$1.90

95

Tie-Rap 180 mm

414115200

$0.11

96

Trim 1000Mm Long

219704354

$15.99

97

REAR PULLEY CABLE - Call your local BRP dealership

705600772

Unavailable

98

Spring

705601065

$8.75

99

NUT 7/16'' - Call your local BRP dealership

250100128

Unavailable
