Description

Price

1

Fuel Tank

709000314

Unavailable

2

Pump Module

709000088

$625.49

3

Rollover Valve

709000413

$55.99

4

Fuel Cap

709000660

$15.49

5

Seal Kit

219800248

$38.99

6

Grommet

709000582

$4.69

7

Carpet

709000130

$14.49

8

BANJO FITTING - Call your local BRP dealership

709000137

$19.99

9

Fuel Line 7.9 mm, Meter

709000264

$15.99

10

Oetiker Clamp

293650125

$3.29

11

Fuel Filter

513034047

$21.99

12

Fuel Line 7.9 mm, Meter

709000265

$12.99

13

Female Quick Fitting Ass'y

709000125

$15.49

14

Tubing 16 Mm 1000Mm Long

219704408

$7.49

15

HOSE 6,35MM ID - 620MM - Call your local BRP dealership

709000266

Unavailable

16

Oetiker Clamp

293650046

$2.89

17

Quick Connect Pipe Fitting

293710192

$12.49

18

Tubing

513033412

$4.44

19

Bleed Valve

709000443

$73.99

20

HOSE - Call your local BRP dealership

709000254

Unavailable

21

Crimp Clamp, 15.3-706R

293650047

$3.29

22

Vapor Canister

709000090

$90.99

23

Formed Hose

709000277

$28.99

24

Hose

513033565

$30.99

25

Crimp Clamp, 15.3-706R

293650047

$3.29

26

Oetiker Gear Clamp

293650025

$3.09

27

Crimp Clamp, 15.3-706R

293650047

$3.29

28

Crimp Clamp, 15.3-706R

293650047

$3.29

29

Hose 3000Mm Long

219704612

$84.99

30

Tubing

513033412

$4.44

31

Oetiker Gear Clamp

293650025

$3.09

32

Hex. Flange Screw M6 X 25

207662544

$0.64

33

Flat Washer

224060201

$1.26

34

Flat Washer

224060201

$1.26

35

Bushing

709000162

$13.76

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Flow Reducer | California

709000416

Unavailable

38

Crimp Clamp, 15.3-706R

293650047

$3.29

39

Tie Wrap 368 mm

293750008

$1.04

40

Hose 3000Mm Long

219704612

$84.99

41

Hose 3000Mm Long

219704612

$84.99

42

Support

709000150

Unavailable

43

Hex. Flange Screw M10 X 25

207602544

$1.69

44

Open Clamp

513033047

$5.19

45

Hex. Flange Screw M6 X 16

207661644

$0.74

46

Reflective Sheet

709000157

$20.99

47

REFLECTIVE SHEET - Call your local BRP dealership

709000158

Unavailable

48

REFLECTIVE SHEET - Call your local BRP dealership

709000159

Unavailable

49

Grommet

293720087

$7.39

50

Tie-Rap 180 mm

414115200

$0.11

51

Tubing 16 Mm 1000Mm Long

219704408

$7.49

52

Tubing 16 Mm 1000Mm Long

219704408

$7.49

53

Tie-Rap 180 mm

414115200

$0.11

54

Tie-Rap 180 mm

414115200

$0.11

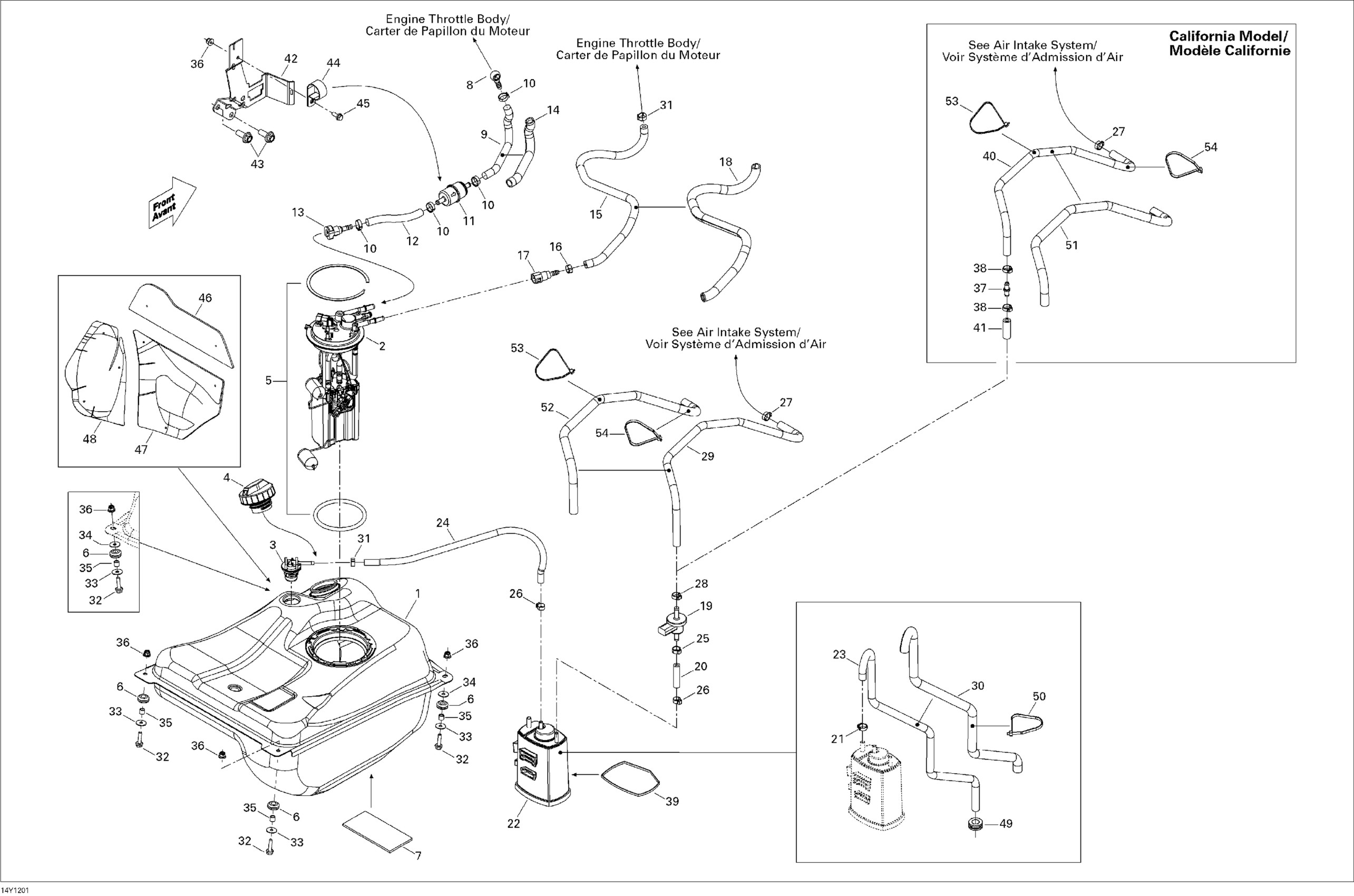

Can-Am Spyder RS SM5, 2012 02- Fuel System Diagram

Fuel Tank

Pump Module

Rollover Valve

Fuel Cap

Seal Kit

Grommet

Carpet

BANJO FITTING - Call your local BRP dealership

Fuel Line 7.9 mm, Meter

Oetiker Clamp

Fuel Filter

Fuel Line 7.9 mm, Meter

Female Quick Fitting Ass'y

Tubing 16 Mm 1000Mm Long

HOSE 6,35MM ID - 620MM - Call your local BRP dealership

Oetiker Clamp

Quick Connect Pipe Fitting

Tubing

Bleed Valve

HOSE - Call your local BRP dealership

Crimp Clamp, 15.3-706R

Vapor Canister

Formed Hose

Hose

Crimp Clamp, 15.3-706R

Oetiker Gear Clamp

Crimp Clamp, 15.3-706R

Crimp Clamp, 15.3-706R

Hose 3000Mm Long

Tubing

Oetiker Gear Clamp

Hex. Flange Screw M6 X 25

Flat Washer

Flat Washer

Bushing

Hex. Flange Elastic Nut M6 x 1.0

Flow Reducer | California

Crimp Clamp, 15.3-706R

Tie Wrap 368 mm

Hose 3000Mm Long

Hose 3000Mm Long

Support

Hex. Flange Screw M10 X 25

Open Clamp

Hex. Flange Screw M6 X 16

Reflective Sheet

REFLECTIVE SHEET - Call your local BRP dealership

REFLECTIVE SHEET - Call your local BRP dealership

Grommet

Tie-Rap 180 mm

Tubing 16 Mm 1000Mm Long

Tubing 16 Mm 1000Mm Long

Tie-Rap 180 mm

Tie-Rap 180 mm
