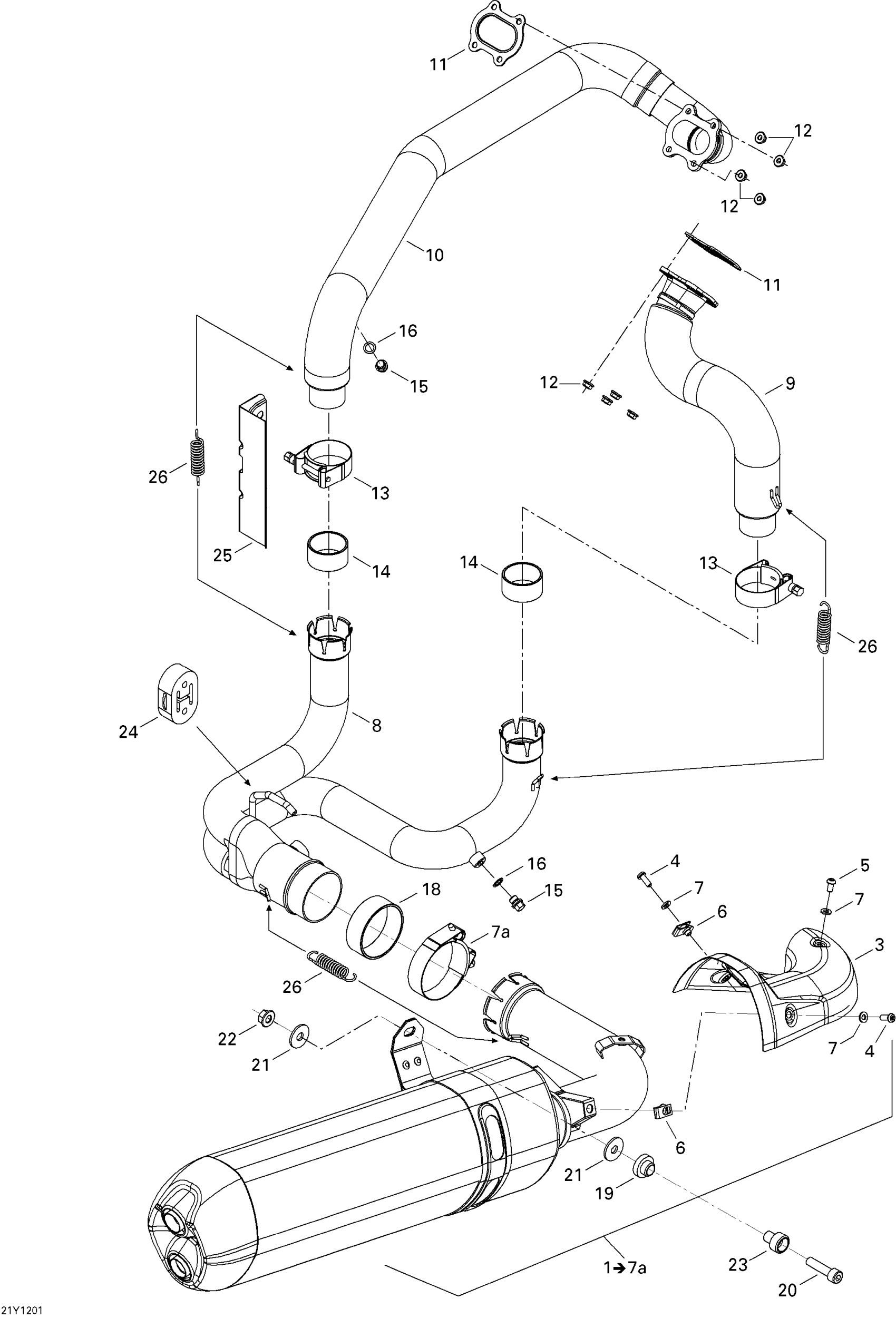

Can-Am Spyder RS SM5, 2012 01- Exhaust System Diagram

#

Description
Price

1

MUFFLER_EXHAUST ASSY - Call your local BRP dealership | Includes 1 to 7

707601030

Unavailable

3

HEAT SHIELD - Call your local BRP dealership

705001570

Unavailable

4

Stainless, Socket Screw, M6X16 S.Grip

250000437

$1.90

5

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11

6

Panel Nut M6 X 1.0

250100198

$2.11

7

Stainless Flat Washer M6

234061600

$0.33

7a

Collar

707600351

$20.49

8

EXHAUST MANIFOLD - Call your local BRP dealership

707600623

Unavailable

9

REAR EXHAUST PIPE - Call your local BRP dealership | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

707600635

Unavailable

10

FRONT TUNE PIPE - Call your local BRP dealership

707600289

Unavailable

11

Seal

707600296

$19.49

12

Hex. Flange Nut M6

233061414

$1.68

13

COLLAR - Call your local BRP dealership

707600336

Unavailable

14

Slip Joint

707600977

$19.99

15

HEX HEAD PIPE PLUG M10 DIN910 - Call your local BRP dealership

250100122

Unavailable

16

Washer

414920600

$1.90

18

Joint De Tuyau *Slip Joint

707601026

$23.99

19

Grommet | Europe

707800347

$10.49

20

Hex. Screw M10 X 40, Scotch Grip

244004060

$4.86

21

Flat Washer 10 mm, Stainless

234002600

$2.22

22

Hex. Flange Nut M10

233101600

$5.29

23

BUSHING - Call your local BRP dealership

707600390

Unavailable

24

Rubber Bumper

707600638

$15.81

25

DEFLECTOR - Call your local BRP dealership

707600653

Unavailable

26

Spring

514054226

$6.35
