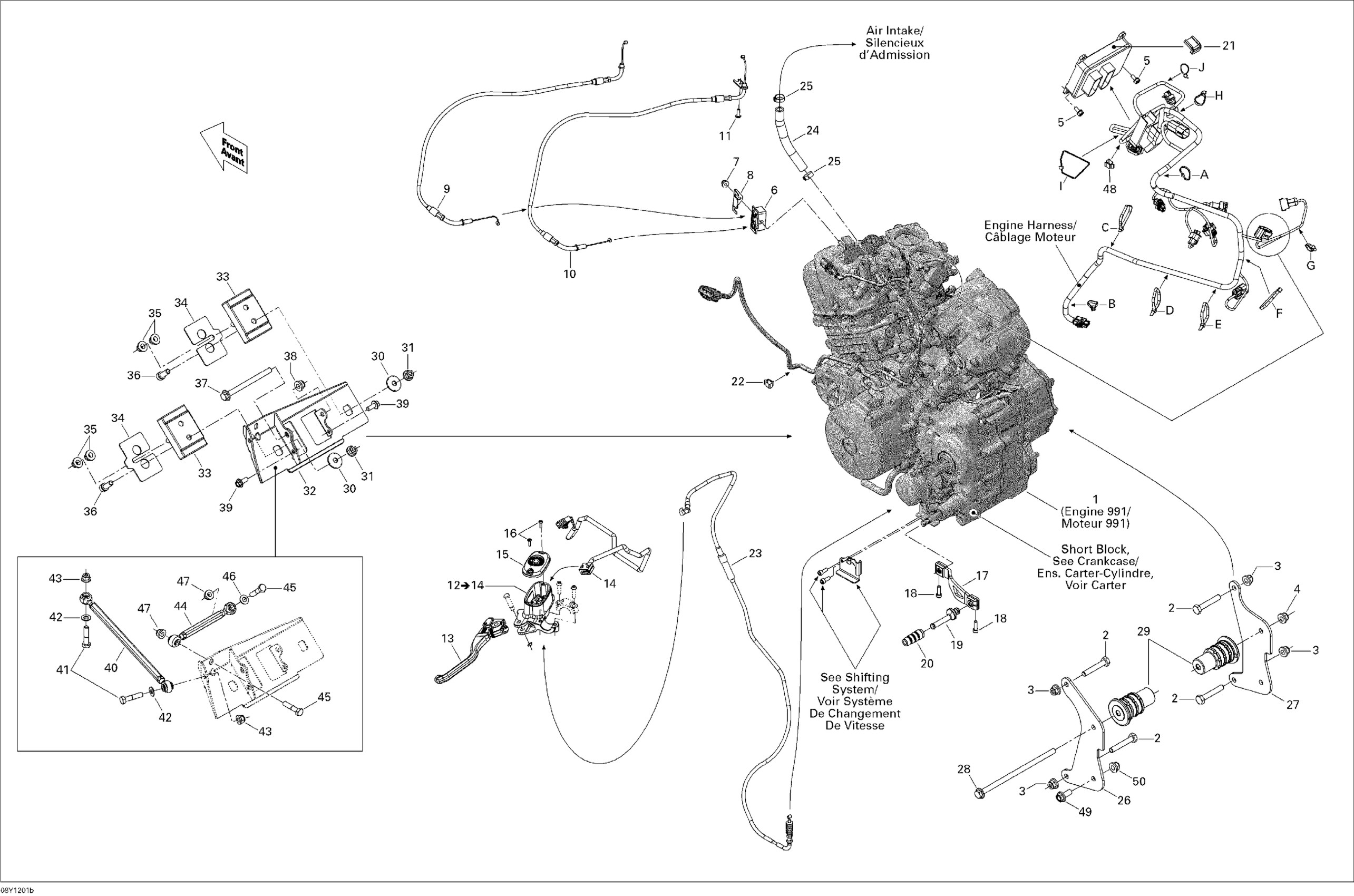

Can-Am Spyder RS SM5, 2012 01- Engine 1_SM5 Diagram

#

Description
Price

1

ENGINE 991 - Call your local BRP dealership | Long Block 421000708

707000963

Unavailable

2

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

3

Hex. Flange Elastic Nut M10

233201436

$2.11

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Hex. Flange Screw M6 X 12

210261250

$1.90

6

INDEXING BLOCK - Call your local BRP dealership

707000609

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

FIXATION PLATE - Call your local BRP dealership

707000610

Unavailable

9

THROTTLE CABLE - Call your local BRP dealership

707001208

Unavailable

10

THROTTLE CABLE - Call your local BRP dealership

707001209

Unavailable

11

Torx Screw M5 X 14

250000742

$1.47

12

CLUTCH LEVER ASS'Y - Call your local BRP dealership | Includes 12 to 16

707000849

Unavailable

13

CLUTCH LEVER - Call your local BRP dealership

707000623

Unavailable

14

SWITCH - Call your local BRP dealership

710002086

$93.99

15

COVER RESERVOIR - Call your local BRP dealership

707000616

Unavailable

16

Screw 8-32

250000342

$3.19

17

LEVER - Call your local BRP dealership

707000386

Unavailable

18

Socket Head Screw M6 X 22, Scotch Grip

514054626

$4.44

19

Adjustment Rod

707000455

$29.99

20

End Clutch Pedal

707000456

$8.89

21

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

22

Clip

414227300

$1.67

23

CABLE REVERSE - Call your local BRP dealership

707000811

Unavailable

24

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

25

Oetiker Clamp

293650186

$3.99

26

LH SUPPORT - Call your local BRP dealership

707000510

Unavailable

27

RH SUPPORT - Call your local BRP dealership

707000512

Unavailable

28

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

29

RUBBER MOUNT - Call your local BRP dealership

707000814

Unavailable

30

Lock Washer

512056700

$3.17

31

Hex. Flange Elastic Nut M10

233201436

$2.11

32

FRONT ENGINE SUPORT - Call your local BRP dealership

707001072

Unavailable

33

RUBBER MOUNT - Call your local BRP dealership

707000815

Unavailable

34

Shim

707001074

Unavailable

35

Hex. Flange Elastic Nut M10

233201436

$2.11

36

Socket Head Screw M10 X 25

205002544

$1.48

37

Hex. Flange Screw M10 X 125

230602546

$7.41

38

Hex. Flange Elastic Nut M10

233201436

$2.11

39

Hex. Flange Screw M8 X 20

207682044

$1.15

40

TIE ROD ASS'Y - Call your local BRP dealership

707000816

Unavailable

41

Hex. Screw M10 X 45

207004544

$1.69

42

Flat Washer 10 mm

234001410

$1.26

43

Hex. Flange Elastic Nut M10

233201436

$2.11

44

TIE ROD ASS'Y - Call your local BRP dealership

707001001

Unavailable

45

Hex. Screw M10 X 45

207004544

$1.69

46

Flat Washer 10 mm

234001410

$1.26

47

Hex. Flange Elastic Nut M10

233201436

$2.11

48

Clip

414227300

$1.67

49

Hex. Flange Screw M10 X 25

207602544

$1.69

50

Hex. Flange Elastic Nut M10

233201436

$2.11

A

Tie Wrap 142 mm

293750002

$1.25

B

Tie Wrap 368 mm

293750008

$1.04

C

Tie Wrap 368 mm

293750008

$1.04

D

Tie Wrap 368 mm

293750008

$1.04

E

Tie Wrap 368 mm

293750008

$1.04

F

Tie-Rap 180 mm

414115200

$0.11

G

Tie-Rap 180 mm

414115200

$0.11

H

Tie-Rap 180 mm

414115200

$0.11

I

Tie Wrap 368 mm

293750008

$1.04

J

Tie-Rap 180 mm

414115200

$0.11
