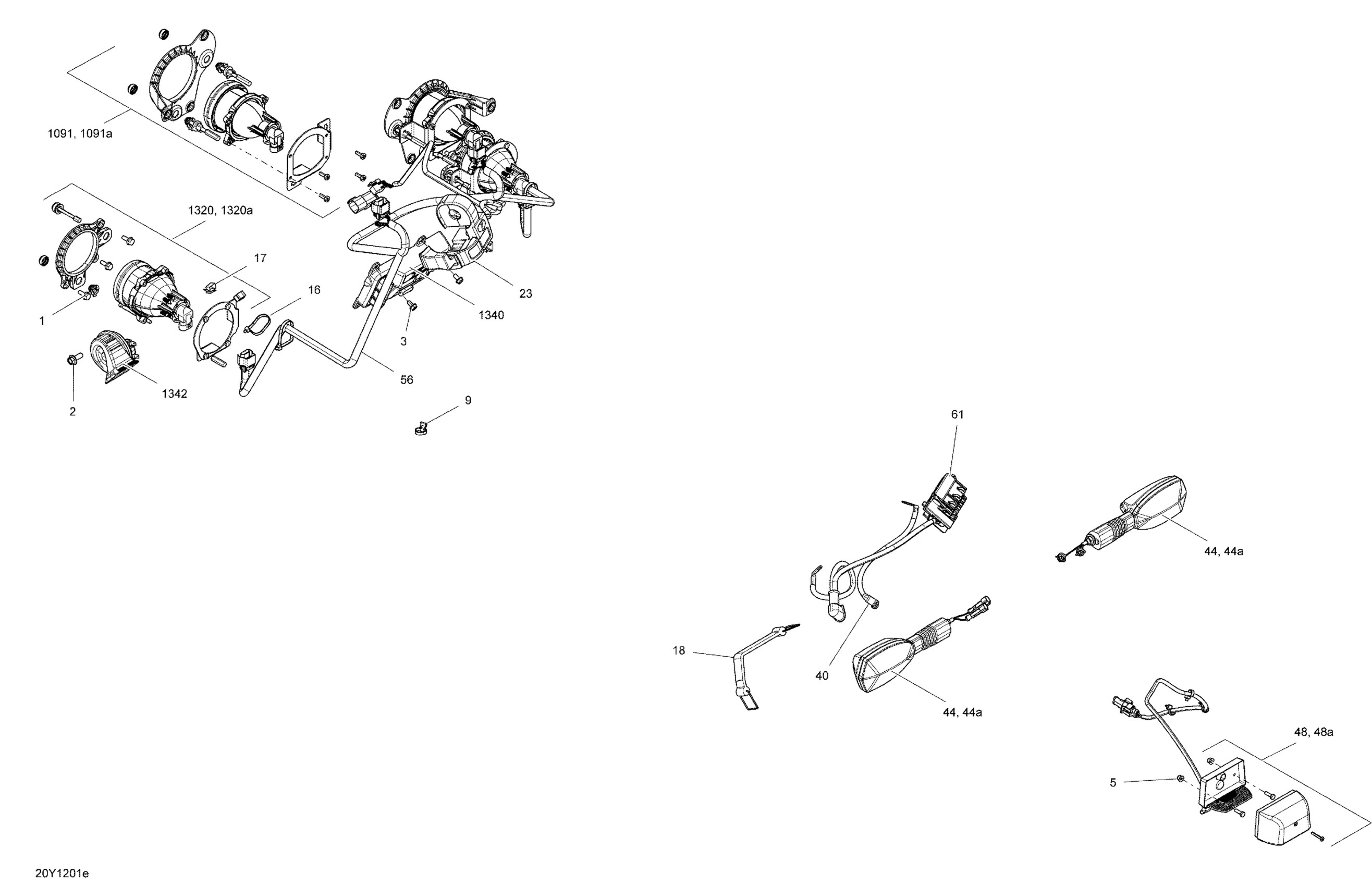

Can-Am Spyder RS SE5, 2012 10- Electrical System Lighting Europe (SE5) Diagram

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M6 X 12

210261250

$1.90

Elastic Flange Nut M5

233251494

$2.11

Tie-Rap 173 mm

293750009

$1.04

Tie-Rap 180 mm

414115200

$0.11

Clip

414227300

$1.67

Battery Strap

515176044

$18.49

SE5 Switch Housing | Semi-Automatic

515176198

$189.99

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.49

Amber, Rear Turn Signal | Includes 0u to 0u1

710007006

$83.49

LICENCE LIGHT - Call your local BRP dealership | Includes 24 to 25

710001993

Unavailable

BEAM HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 882

710000793

Unavailable

POSITIVE CABLE (BAT/SOL/FUS) - Call your local BRP dealership | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

710002079

Unavailable

LH HIGH BEAM ASS'Y - Call your local BRP dealership | Europe, Int'l

710002500

Unavailable

RH HIGH BEAM ASS'Y - Call your local BRP dealership | Europe, Int'l

710002499

Unavailable

LH LOW BEAM ASS'Y - Call your local BRP dealership | Includes 16 to 17

710002498

Unavailable

RH LOW BEAM ASS'Y - Call your local BRP dealership | Includes 19 to 20

710002497

Unavailable

TCM MODULE - Call your local BRP dealership | Semi-Automatic

710001946

Unavailable

HORN - Call your local BRP dealership

710004229

$28.99

Halogen Bulb

415129249

$41.49

Halogen Bulb

415129249

$41.49

Bulb 12V 21W | Not Shown

715900043

$16.65

Bulb 12V 10W | Not Shown

415129261

$2.46
