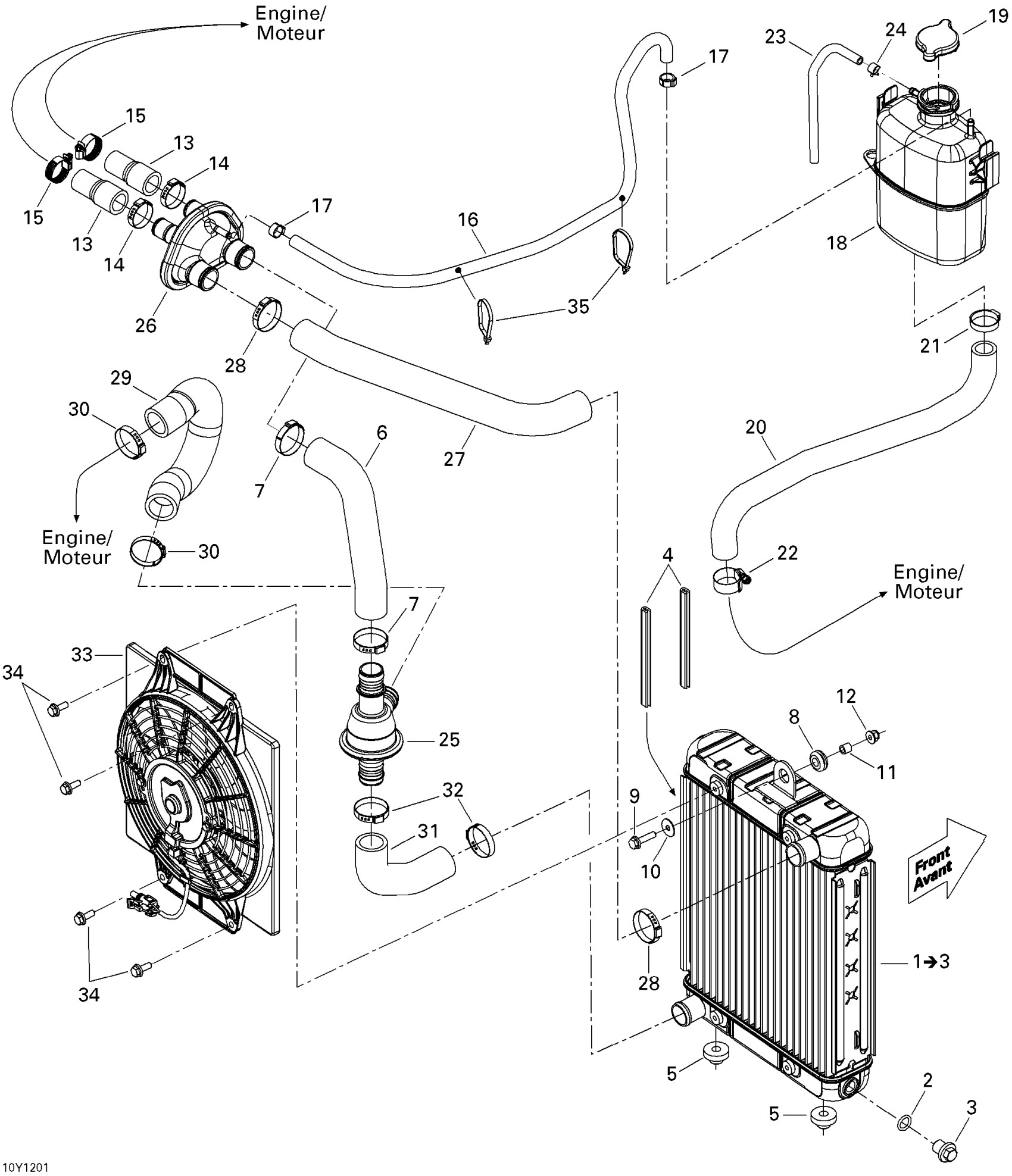

Can-Am Spyder RS SE5, 2012 01- Cooling System Diagram

#

Description
Price

1

RADIATOR - Call your local BRP dealership | Includes 1 to 3

709200128

Unavailable

2

O-RING - Call your local BRP dealership

709200217

Unavailable

3

DRAIN PLUG - Call your local BRP dealership

709200218

Unavailable

4

Trim 1000Mm Long

219704354

$15.99

5

Grommet

709200285

$9.69

6

HOSE - Call your local BRP dealership

709200215

Unavailable

7

Oetiker Gear Clamp 36.1MM

509000045

$8.29

8

Grommet

709000582

$4.69

9

Hex. Flange Screw M6 X 25

207662544

$0.64

10

Flat Washer

224060201

$1.26

11

Bushing

293900105

$7.65

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

HOSE_WATER PUMP UP FORMED - Call your local BRP dealership

709200144

Unavailable

14

Crimp Clamp

293650099

$4.29

15

Tridon Gear Clamp

293650173

$3.09

16

FORMED HOSE - Call your local BRP dealership

709200415

Unavailable

17a

Oetiker Gear Clamp

293650025

$3.09

17b

Oetiker Gear Clamp

293650025

$3.09

18

Coolant Tank

709201323

$80.99

19

Pressure Cap

509000187

$29.49

20

HOSE - Call your local BRP dealership

709200139

Unavailable

21

Oetiker Clamp

293650141

$4.29

22

Tridon Gear Clamp

293650051

$4.19

23

Polyurethane Hose 10000Mm Long

219704410

$56.99

24

Spring Clamp

414554800

$0.88

25

Thermostat Housing

709200384

$88.99

26

Connector

709200151

$19.49

27

COOLANT FORMED HOSE - Call your local BRP dealership

709200272

Unavailable

28

Oetiker Gear Clamp 36.1MM

509000045

$8.29

29

HOSE_WATER PUMP LWR FORMED - Call your local BRP dealership

709200259

Unavailable

30

Oetiker Gear Clamp 36.1MM

509000045

$8.29

31

HOSE - Call your local BRP dealership

709200185

Unavailable

32

Oetiker Gear Clamp 36.1MM

509000045

$8.29

33

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

509000692

$239.99

34

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

35

Tie-Rap 180 mm

414115200

$0.11
