Description

Price

1

Bumper Cover, Magnesium | Pure Magnesium Model

705006183

$359.99

1

Bumper Cover, Timeless Black | Timeless Black

705005050

$359.99

1

Bumper Cover, Orbital Blue | Orbital Blue

705005051

$359.99

1

Bumper Cover, Red | Viper Red Model

705006185

$359.99

2

Tuflok Plastic Rivet

293150230

$1.47

3

LH FRONT WING - Call your local BRP dealership | RT, RT Audio/Techno

705007389

Unavailable

3

LH FRONT WING, CHROME - Call your local BRP dealership

705007393

Unavailable

4

RH FRONT WING - Call your local BRP dealership | RT, RT Audio/Techno

705007390

Unavailable

4

RH Front Wing, Chrome

705007394

$129.99

5

Torx-Truss Pt K40 X 16

250000759

$2.11

6

Hood , Magnesium Met. | Pure Magnesium Model

219800224

$539.99

6

Hood Replacement Kit | Timeless Black, Produced After February 01 2010

219800220

$459.99

6

Orbital Blue Hood Replacement Kit | Model with Color Orbital Blue

219800221

$539.99

6

HOOD , RED - Call your local BRP dealership | Viper Red Model

705006150

Unavailable

7

Néoprene Pad

705006824

$7.39

8

Neoprene Seal ( 3 Meters per pack )

293250047

Unavailable

9

Hood Arm

705003248

$54.99

10

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

11

Hood Pivot

705005434

$17.49

12

Spacer

705003322

$27.99

13

Hex. Screw M6 X 110

230061034

$2.11

14

Flange Elastic Nut M6

233261434

$4.44

15

Torx Truss Screw M6 X 20

250000488

$2.11

16

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

17

LH LOWER AIR DUCT - Call your local BRP dealership

705007446

Unavailable

18

RH LOWER AIR DUCT - Call your local BRP dealership

705007447

Unavailable

19

Tuflok Plastic Rivet

293150230

$1.47

20

Torx Truss Screw M6 X 20

250000488

$2.11

21

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

22a

Latch Ass'Y

705009310

$104.99

22b

TORX SCREW M6 X 35 - Call your local BRP dealership

235563594

Unavailable

23a

Reverse Actuator Ass'y

710008369

$76.99

23b

Position Sensor | Model-RT LTD

710001861

$21.99

23c

Hex. Screw M4 X 40

207144060

$4.44

23d

Elastic Stop Nut M4

232541600

$1.15

23e

Hex Screw M3 X 20

207132044

$2.11

23f

Elastic Stop Nut M3

232531423

$0.55

24

Actuator Bracket | Model-RT LTD

705003691

$26.99

25

SPRING - Call your local BRP dealership | Model-RT LTD

705003692

Unavailable

26

Bushing

705004513

$10.49

27

Torx Screw K50 X 16

250000720

$1.69

28

Hood Guide

705004468

$11.99

29

Hood Cable

517305460

$44.99

30

Storage Bin

705007320

$459.99

31

FRONT TRUNK LINER KIT - Call your local BRP dealership | RTS

219400166

Unavailable

32

Dual Lock Velcro Washer 3/4"

293740028

$4.19

33a

Holding Strap

705004357

$27.99

33b

Hex. Flange Elastic Nut M6

233261494

$1.58

34

Rubber Bumper

293830005

$8.09

35

FUSE CAP ASS'Y - Call your local BRP dealership

705003626

Unavailable

36

Hexagonal Head Screw

210262050

$2.11

37

Hex. Flange Screw M6 X 20

207662044

$2.00

38a

Socket Head Screw M6 X 20

205062044

$1.26

38b

Flat Washer 6 mm

234061410

$1.36

38c

Hex. Flange Screw M6 X 20

207662044

$2.00

39

Tuflok Plastic Rivet

293150230

$1.47

40

Panel Nut M6 X 1.0

250100198

$2.11

41

LH Fronr Pannel, Magnesium | Pure Magnesium Model

705006193

$259.99

41

PANEL_BODY FL B-302 - Call your local BRP dealership | Timeless Black

705003593

Unavailable

41

PANEL_BODY FL B-306 - Call your local BRP dealership | Orbital Blue

705003592

Unavailable

41

LH Fronr Pannel, Red | Viper Red Model

705006197

$259.99

42

Air Duct Ass'y, LH | Model-RT STD North America

705003703

$89.99

43

Clip

414479100

$1.90

45

LH FRONT PANEL FOAM - Call your local BRP dealership

518325855

Unavailable

46

Bare, RH Front Panel | Pure Magnesium Model

705006218

$119.99

46

PANEL_BODY FR B-302 - Call your local BRP dealership | Timeless Black

705003596

Unavailable

46

PANEL_BODY FR B-306 - Call your local BRP dealership | Orbital Blue

705003595

Unavailable

46

RH FRONT PANEL, VIPER RED - Call your local BRP dealership | Viper Red Model

705005068

Unavailable

47

Tuflok Plastic Rivet

293150230

$1.47

48

Air Duct Ass'y RH | Model-RT STD North America

705003706

$89.99

49

Clip

414479100

$1.90

51

Edge Clip

517302785

$0.88

52

RH FRONT PANEL FOAM - Call your local BRP dealership

518325854

Unavailable

53

Skid Plate

705002837

$68.99

54

Truss Head Torx Screw K50 X 20

250000297

$2.11

55

Torx Truss Screw M6 X 20

250000350

$5.29

56

Panel Nut M6 X 1.0

250100198

$2.11

57

LH Painted Fender Front Support | Model-RS STD

705010102

$86.99

57

RH Painted Fender Front Support | Model-RS STD

705010103

$86.99

58

LH Rear Fender Support | Model-RS STD

705010740

$83.99

58

Right Fender Rear Support | Model-RS STD

705010741

$83.99

59

Central Front Fender Support | Model-RS STD

705002389

$62.99

60

LH Front Fender, Metallic Magnesium | RS, Magnesium Model

705004613

$204.99

60

LH FRONT FENDER, TIMELESS BLACK - Call your local BRP dealership | Timeless Black

705003971

Unavailable

60

LH FRONT FENDER, ORBITAL BLUE - Call your local BRP dealership | Orbital Blue

705003969

Unavailable

60

LH FRONT FENDER, VIPER RED - Call your local BRP dealership | Viper Red Model

705005070

Unavailable

60

RH Front Fender, Metallic Magnesium | RS, Magnesium Model

705004614

$309.99

60

Timeless Black Met RH Front Fender | Model-RT STD Timeless Black Met

705008034

$204.99

60

RH FRONT FENDER, ORBITAL BLUE - Call your local BRP dealership | Orbital Blue

705003970

Unavailable

60

RH FRONT FENDER, VIPER RED - Call your local BRP dealership | Viper Red Model

705005071

Unavailable

61

LH Mudguard | Model-RS STD

705001767

$51.99

61

RH Mudguard | Model-RS STD

705001768

$51.99

62

Hex. Flange Screw, Scotch Grip

207582034

$2.11

63

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

64

Hex. Flange Screw M6 X 20

207662084

$1.69

65

Panel Nut M6 X 1.0

250100198

$2.11

66

Torx Truss Screw M6 X 20

250000350

$5.29

67

Amber, Lateral Reflector

705002423

$15.49

68

Torx Truss Screw M6 X 20

250000350

$5.29

69

Plastic Washer

705003207

$0.80

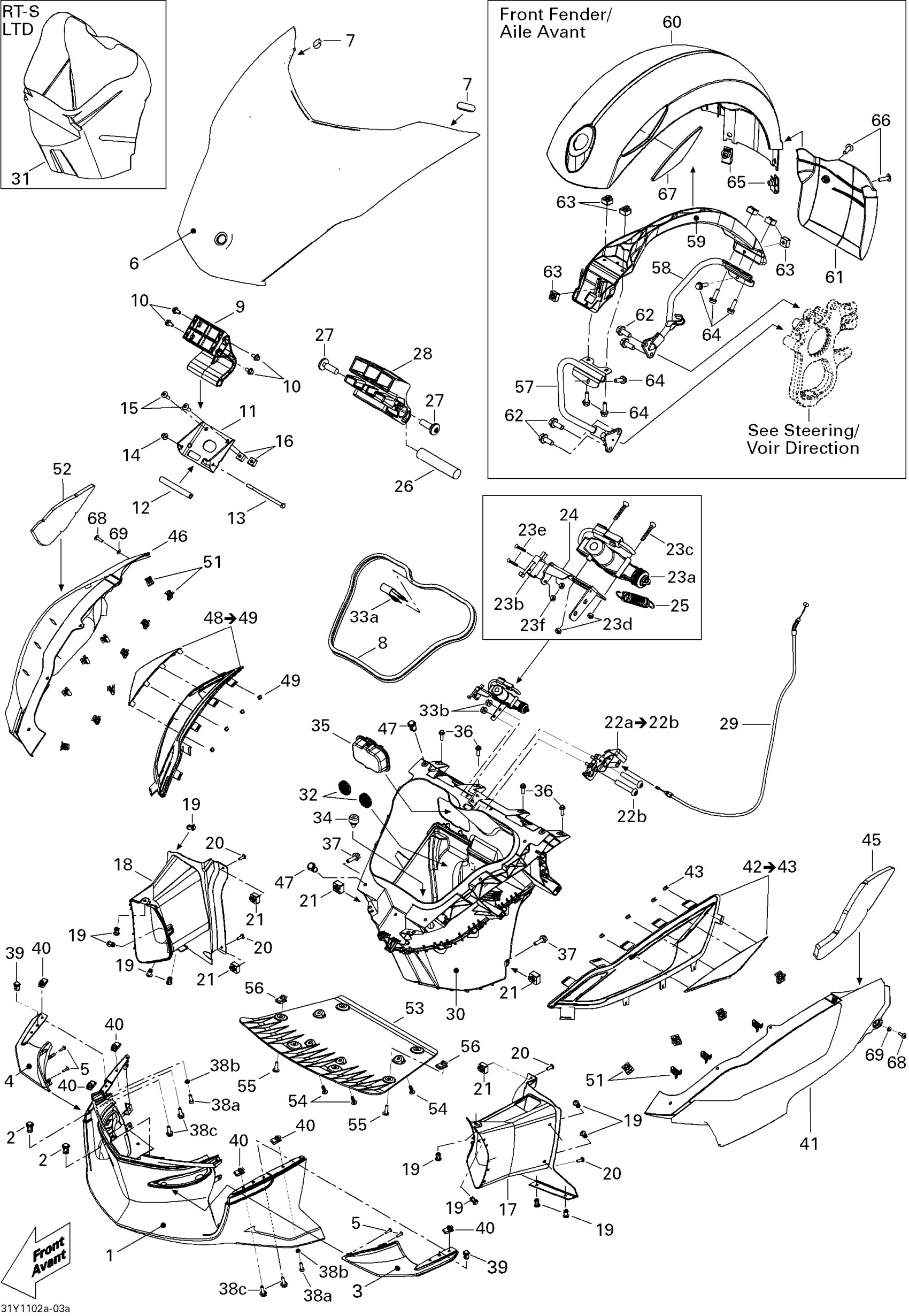

Can-Am Spyder RT, Roadster SM5, 2011 09- Body And Accessories Front Diagram
