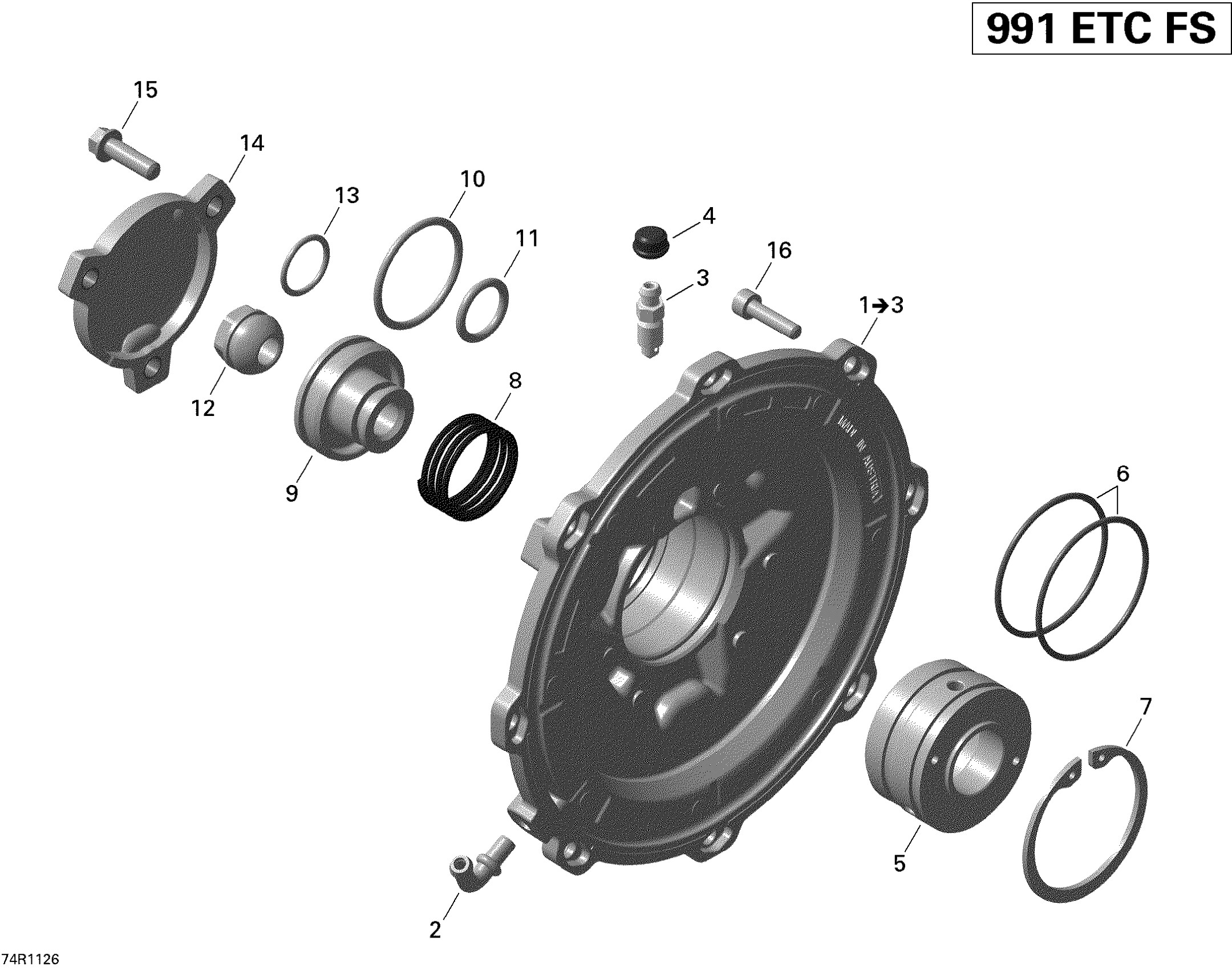

Can-Am Spyder RT, Roadster SM5, 2011 05- Diaphragm Cover Diagram

#

Description
Price

1

Diaphragm Cover | Includes 1 to 3

420611366

$88.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

VALVE - Call your local BRP dealership

420656470

Unavailable

4

Rubber Cap

420460575

$4.65

5

Antifriction Bushing

420233190

$64.49

6

O-Ring

420950966

$5.82

7

Retaining Ring

420245190

$11.57

8

Compression Spring

420238740

$10.99

9

Piston

420656122

$25.99

10

O-Ring

420431441

$5.82

11

O-Ring

420431301

$5.82

12

Nut M10 X 1

420242641

$18.49

13

O-Ring

420631890

$5.18

14

COVER - Call your local BRP dealership

420611710

$17.49

15

Torx Flange Screw M6 X 20

420440207

$3.06

16

Socket Head Screw M5 X 20

420441341

$4.02
