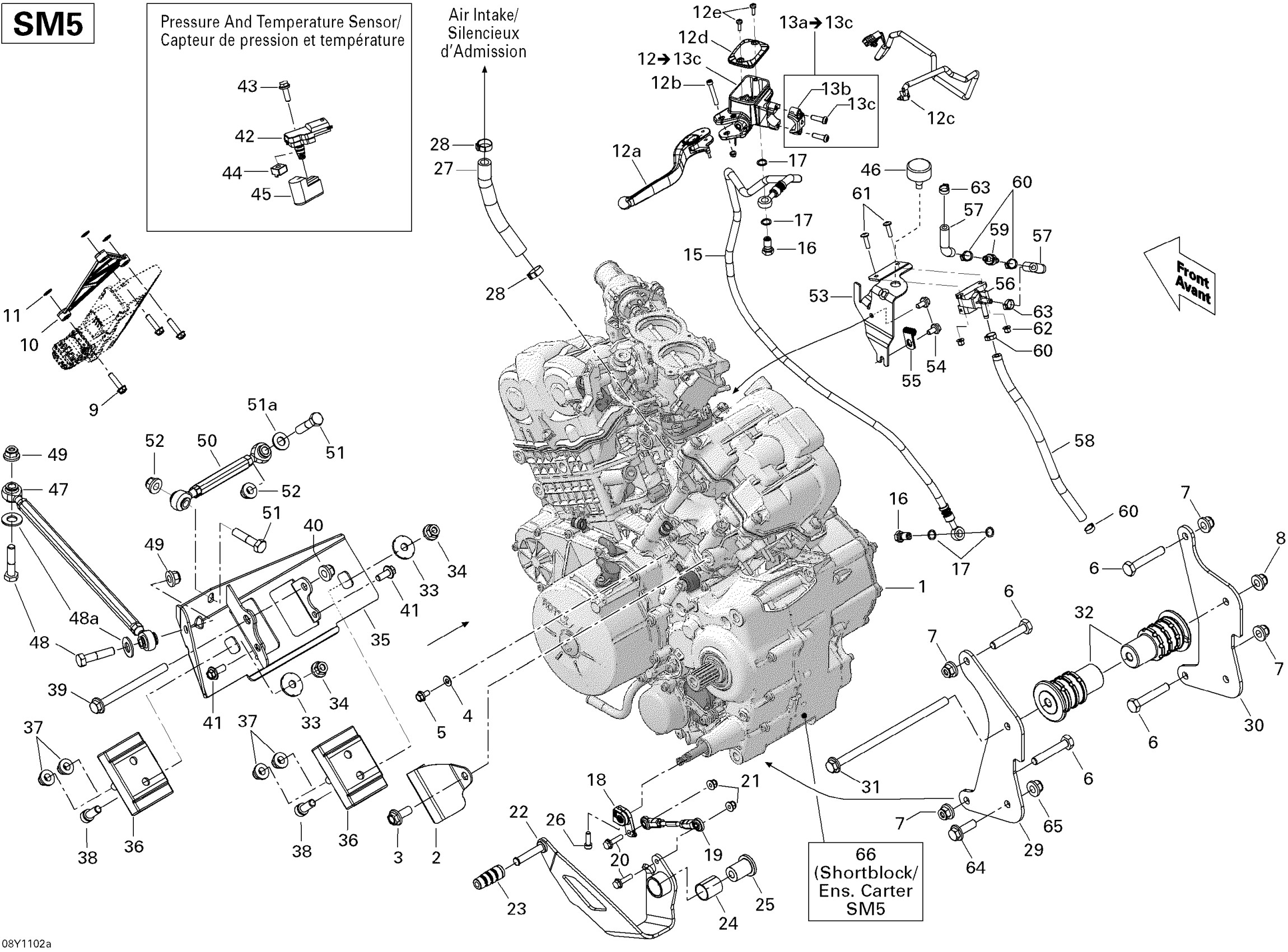

Can-Am Spyder RT, Roadster SM5, 2011 01- Engine SM5 Diagram

#

Description
Price

1

Short Block SM5

421000708

Unavailable

2

DEFLECTOR - Call your local BRP dealership

707000845

Unavailable

3

Hex. Flange Screw M6 X 12

207661244

$2.11

4

Flat Washer

224061121

$0.53

5

Hex. Flange Screw M10 X 25

207602544

$1.69

6

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

7

Hex. Flange Elastic Nut M10

233201436

$2.11

8

Hex. Flange Elastic Nut M10

233201436

$2.11

9

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

10

Spacer

710001886

Unavailable

11

Push Nut

732610072

$2.19

12

Master Cylinder Ass'y with Lever

707001211

$370.99

12a

Master Cylinder Ass'y with Lever

707001211

$370.99

12b

Master Cylinder Ass'y with Lever

707001211

$370.99

12c

MICROSWITCH - Call your local BRP dealership

219800083

Unavailable

12d

Cap Set

219800096

$21.99

12e

Screw M4 X 20

415129356

$2.22

13a

Clamps | Includes 75a to 75b

719000049

$14.83

13b

Clamps | Includes 75a to 75b

719000049

$14.83

13c

Torx Screw M6 X 20

250000433

$7.51

15

HOSE - Call your local BRP dealership

707000654

Unavailable

16

Banjo Bolt

414920500

$8.68

17

Washer

414920600

$1.90

22

LEVER - Call your local BRP dealership

707000950

Unavailable

19

Linkage Rod | SM6

504152819

$53.99

20

Hex. Flange Screw M6 X 25

207662544

$0.64

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

SHIFTER ARM - Call your local BRP dealership

707000649

Unavailable

23

End Clutch Pedal

707000456

$8.89

24

Bushing

503191554

$6.14

25

Axle

503190698

$20.99

26

Socket Head Screw M6 X 22, Scotch Grip

514054626

$4.44

27

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

28

Oetiker Clamp

293650186

$3.99

29

LH SUPPORT - Call your local BRP dealership

707000510

Unavailable

30

RH SUPPORT - Call your local BRP dealership

707000512

Unavailable

31

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

32

RUBBER MOUNT - Call your local BRP dealership

707000814

Unavailable

33

Lock Washer

512056700

$3.17

34

Hex. Flange Elastic Nut M10

233201436

$2.11

35

FRONT ENGINE SUPORT - Call your local BRP dealership

707001072

Unavailable

36

RUBBER MOUNT - Call your local BRP dealership

707000815

Unavailable

37

Hex. Flange Elastic Nut M10

233201436

$2.11

38

Socket Head Screw M10 X 25

205002544

$1.48

39

Hex. Flange Screw M10 X 125

230602546

$7.41

40

Hex. Flange Elastic Nut M10

233201436

$2.11

41

Hex. Flange Screw M8 X 20

207682044

$1.15

42

Pressure And Temperature Sensor

707000995

$88.99

43

Hex. Flange Screw M6 X 20

207662084

$1.69

44

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

45

Foam Filter

707000586

$5.50

46

Rubber Stopper

708000758

$12.99

47

TIE ROD ASS'Y - Call your local BRP dealership

707000816

Unavailable

48

Hex. Screw M10 X 45

207004544

$1.69

48a

Flat Washer 10 mm

234001410

$1.26

49

Hex. Flange Elastic Nut M10

233201436

$2.11

50

TIE ROD ASS'Y - Call your local BRP dealership

707001001

Unavailable

51

Hex. Screw M10 X 45

207004544

$1.69

51a

Flat Washer 10 mm

234001410

$1.26

52

Hex. Flange Elastic Nut M10

233201436

$2.11

53

Intake Support

707000756

$11.07

54

Hex. Flange Screw M6 X 12

207661244

$2.11

55

Bracket

415052400

$4.39

56

Solenoid Valve

707001596

$78.99

57

Hose

513033565

$30.99

58

Hose

513033565

$30.99

59

Check Valve

513033469

$31.99

60

Oetiker Clamp

293650042

$3.09

61

Torx Screw M5 X 20

250000724

$1.69

62

Hex. Flange Elastic Nut M5

233251414

$1.04

63

Oetiker Clamp

293650042

$3.09

64

Hex. Flange Screw M10 X 25

207602544

$1.69

65

Hex. Flange Elastic Nut M10

233201436

$2.11

66

Short Block SM5

421000708

Unavailable
