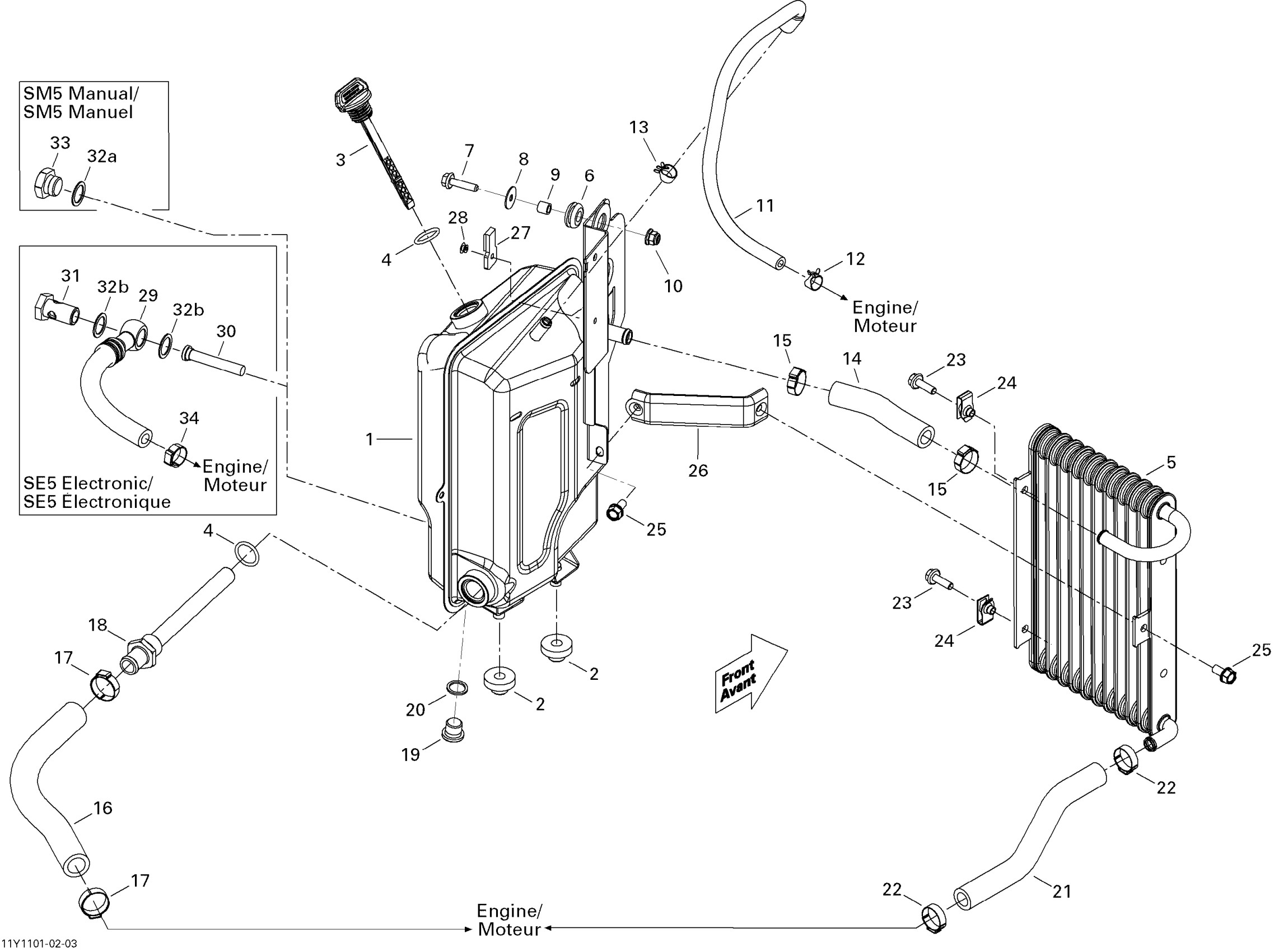

Can-Am Spyder RT, Roadster SE5, 2011 02- Oil System SE5 Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

519000246

Unavailable

2

Grommet

709200285

$9.69

3

Oil Cap

519000155

$15.82

4

O-Ring

709000218

$6.66

5

OIL RADIATOR - Call your local BRP dealership

519000123

Unavailable

6

Grommet

709000582

$4.69

7

Hex. Flange Screw M6 X 25

207662544

$0.64

8

Flat Washer

224060201

$1.26

9

Bushing

293900105

$7.65

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Formed Hose

519000208

$28.99

12

Spring Clamp

414415200

$0.88

13

Spring Clamp

414655700

$0.72

14

12,7 MM HOSE 1000MM LONG - Call your local BRP dealership

219704431

Unavailable

15

Oetiker Clamp

293650186

$3.99

16

15,9 MM HOSE 1000MM LONG - Call your local BRP dealership

219704432

Unavailable

17

Gear Clamp

509000552

$6.49

18

Strainer

519000219

$36.99

19

Fill Level Plug | 4X4

705500504

$10.01

20

Copper Washer | 4X4

705500506

$0.45

21

12,7 MM HOSE 1000MM LONG - Call your local BRP dealership

219704431

Unavailable

22

Oetiker Clamp

293650186

$3.99

23

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

24

Panel Nut M6 X 1.0

250100198

$2.11

25

Hex. Flange Screw M6 X 12

210261250

$1.90

26

RADIATOR SUPPORT - Call your local BRP dealership

519000175

Unavailable

27

DEUTSCH GRAY CLIP - Call your local BRP dealership

515176209

Unavailable

28

Pop Rivet 3/16"

390402400

$0.35

29

HOSE - Call your local BRP dealership | SE5

519000287

Unavailable

30

STRAINER - Call your local BRP dealership

519000144

Unavailable

31

Banjo Bolt | SE5

705600527

$15.82

32a

Not Available As Spare Parts

XXX

Unavailable

32b

Copper Washer

519000148

$4.23

33

Not Available As Spare Parts

XXX

Unavailable

34

Oetiker Clamp | Europe

293650030

$5.19
