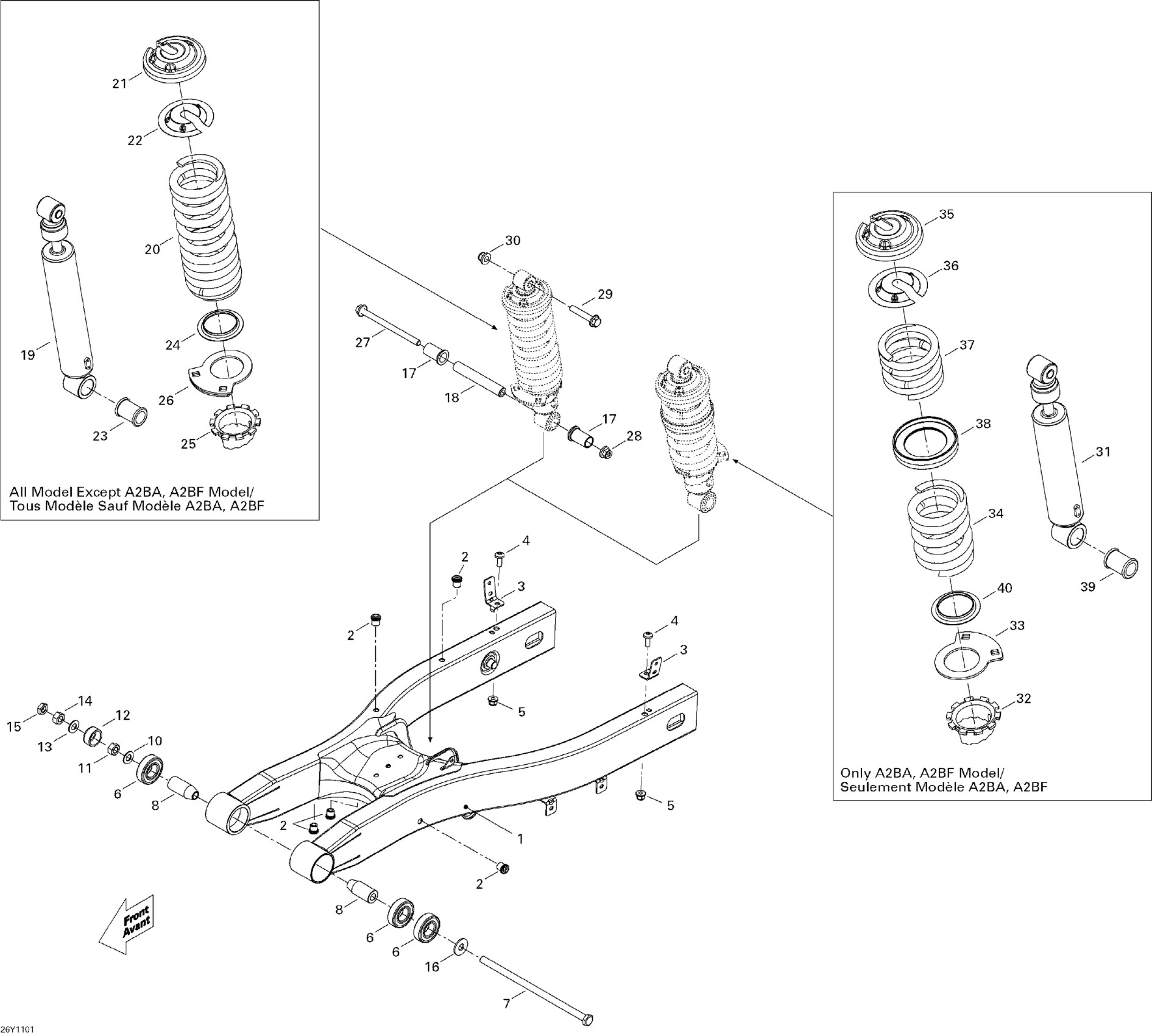

Can-Am Spyder RS Roadster SM5, 2011 08- Suspension, Rear Diagram

#

Description
Price

1

Swing Arm | All Model Except A2BA, A2BF Model

706001063

Unavailable

1

Swing Arm | Only A2BA, A2BF Model

219800218

Unavailable

2

Insert

293450275

$12.99

3

Bracket

706000895

$10.49

4

Hex. Screw M8 X 20

236282084

$1.48

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Ball Bearing

293350115

$12.11

7

HEX. SCREW M12 X 265, SCOTCH GRIP - Call your local BRP dealership

250000367

Unavailable

8

INTERNAL BUSHING - Call your local BRP dealership

706000474

Unavailable

10

WASHER - Call your local BRP dealership

503191435

Unavailable

11

HEX. NUT M12 - Call your local BRP dealership

232021486

Unavailable

12

BUSHING - Call your local BRP dealership

706000486

Unavailable

13

WASHER - Call your local BRP dealership

503191435

Unavailable

14

HEX. NUT M12 - Call your local BRP dealership

232021486

Unavailable

15

HEX. JAM NUT M12 - Call your local BRP dealership

232120434

Unavailable

16

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

17

Spacer

706000410

$13.99

18

Shock Absorber Shaft

706000409

$49.99

19

SHOCK - Call your local BRP dealership

706000699

Unavailable

20

SPRING - Call your local BRP dealership

706000788

Unavailable

21

SPRING STOPPER - Call your local BRP dealership

503191604

Unavailable

22

CAP - Call your local BRP dealership

503191605

Unavailable

23

Urethane Cushion

503191609

$18.49

24

Spring Guide

503191872

$2.29

25

ADJUST RING - Call your local BRP dealership

706000603

Unavailable

26

ADJUST RING - Call your local BRP dealership

706000592

Unavailable

27

Hex. Flange Screw M10 X 140

230604034

$6.77

28

Hex. Flange Elastic Nut M10

233201434

$2.09

29

Hex. Flange Screw

207605534

$2.11

30

Hex. Flange Elastic Nut M10

233201434

$2.09

31

SHOCK ABSORBER - Call your local BRP dealership

706000411

Unavailable

32

ADJUST RING - Call your local BRP dealership

706000603

Unavailable

33

ADJUST RING - Call your local BRP dealership

706000592

Unavailable

34

FULL MOON SPRING - Call your local BRP dealership

706000469

Unavailable

35

SPRING STOPPER - Call your local BRP dealership

503191604

Unavailable

36

CAP - Call your local BRP dealership

503191605

Unavailable

37

FULL MOON SPRING - Call your local BRP dealership

706000529

Unavailable

38

SPACER - Call your local BRP dealership

706000540

Unavailable

39

Urethane Cushion

503191609

$18.49

40

Spring Guide

503191872

$2.29
