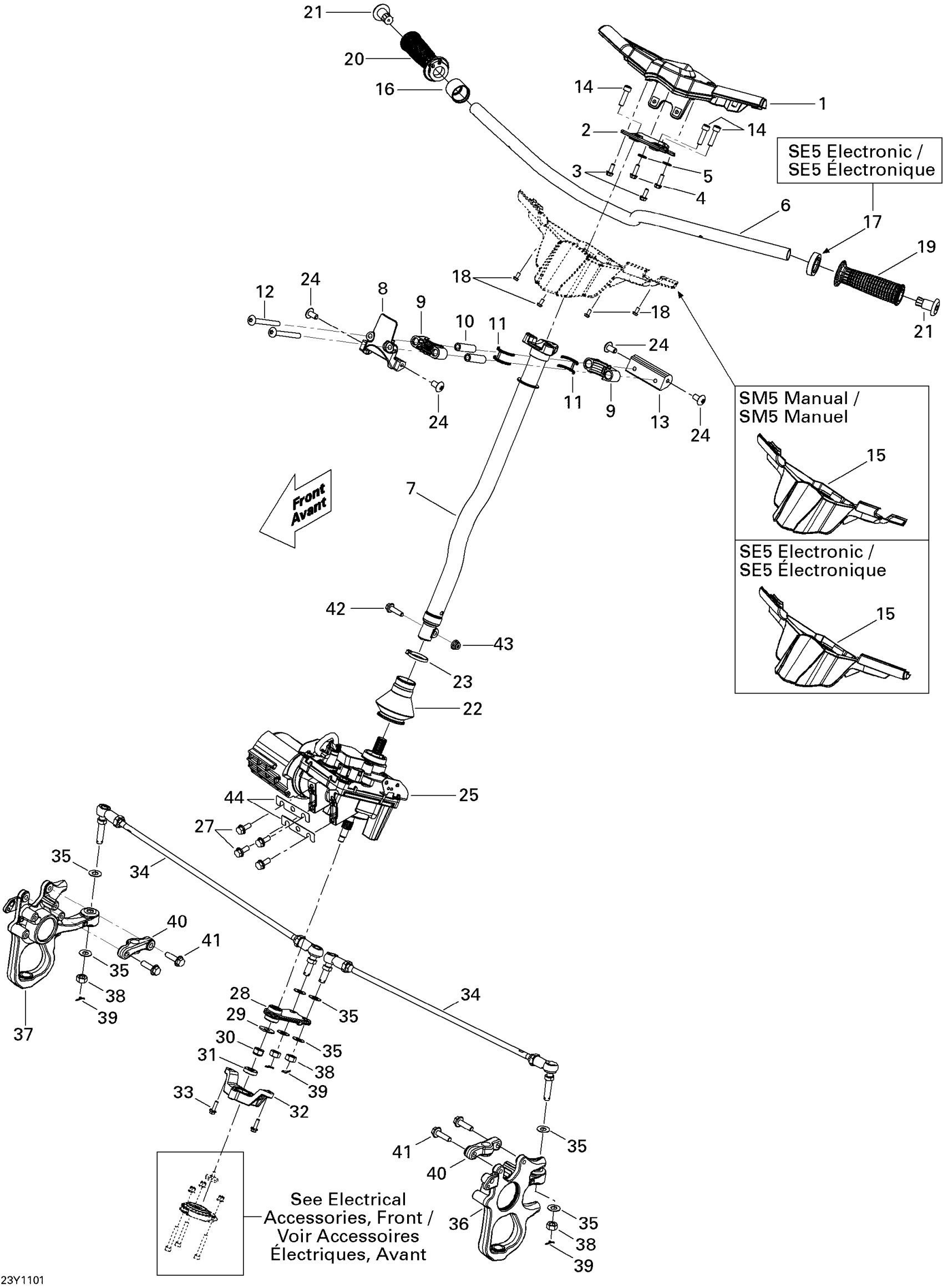

Can-Am Spyder RS Roadster SM5, 2011 07- Steering SM5 Diagram

#

Description
Price

1

HANDLE BAR COVER - Call your local BRP dealership | RS

709400901

Unavailable

1

HANDLE BAR COVER, BLACK - Call your local BRP dealership | RS-S

709400906

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

709400481

Unavailable

3

Hex. Flange Screw M6 X 16

210261650

$1.67

4

Hexagonal Head Screw

210262050

$2.11

5

Flat Washer 8 mm

234081410

$0.83

6

HANDLE BAR - Call your local BRP dealership

709400483

Unavailable

7

STEERING COLUMN - Call your local BRP dealership

709400959

Unavailable

8

STEERING COLUMN SUPPORT - Call your local BRP dealership

709400953

Unavailable

9

Half Bushing

709400471

$14.30

10

BUSHING - Call your local BRP dealership

709400072

Unavailable

11

HALF-SEAL - Call your local BRP dealership

293300120

$6.69

12

Torx Screw, M8 X 80

250000442

$7.51

13

COLOMN REAR SUPPORT - Call your local BRP dealership

709401153

Unavailable

14

Socket Head Screw, Scotch Grip

205583034

$2.11

15

IGNITION SWITCH COVER - Call your local BRP dealership

709400436

Unavailable

16

HANDLE RING - Call your local BRP dealership

709400498

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

19

HANDLE GRIP - Call your local BRP dealership

709400516

Unavailable

20

THROTTLE HANDLE - Call your local BRP dealership

709400517

Unavailable

21

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

22

BELLOWS - Call your local BRP dealership

709400454

Unavailable

23

Tie-Rap 180 mm

414115200

$0.11

24

Torx Truss Screw M8 X 16

250000746

$3.38

25

Ens Dps *Dps Kit Rs/Gs | Includes 24 to 25

219800295

$1,737.99

25a

DPS HARDWARE KIT - Call your local BRP dealership | Not Shown

219800191

Unavailable

27

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

28

PITMAN ARM - Call your local BRP dealership

709401417

Unavailable

29

Flat Washer, 12 mm

250200113

$4.44

30

Hex. Flange Elastic Nut M12

250000047

$1.90

31

Seal Ring

293200113

$4.59

32

SENSOR SUPPORT - Call your local BRP dealership

709400455

Unavailable

33

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

34

TIE ROD ASS`Y - Call your local BRP dealership

709400557

Unavailable

35

Hardened Washer

706200281

$2.85

36

KNUCKLE LH - Call your local BRP dealership

505071709

Unavailable

37

KNUCKLE RH - Call your local BRP dealership

505071711

Unavailable

38

Nut M12

250100099

$2.09

39

Cotter Pin

250400034

$2.11

40

UPPER SUPPORT - Call your local BRP dealership

706200528

Unavailable

41

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207503534

Unavailable

42

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

207583586

Unavailable

43

Hex. Elastic Flange Nut M8

233281416

$1.48

44

SHIM - Call your local BRP dealership

709400572

Unavailable
