Description

Price

1

Clutch Shaft Ass'y | Includes 1 to 6

420620598

$87.99

2

Step Ring

420227714

$11.59

3

Snap Ring

420245440

$2.74

4

SLEEVE - Call your local BRP dealership

420247946

Unavailable

5

SPRING - Call your local BRP dealership

420238760

$15.99

6

Spring

420239431

$7.79

7

PIN, M6 X 55 - Call your local BRP dealership

420229385

Unavailable

8

Return Spring

420239248

$7.19

9

INDEXATION LEVER - Call your local BRP dealership

420248376

$27.99

10

Step Ring

420227716

$11.59

11

Torx Screw M6 X 16

420241529

$2.11

12

Shift Drum

420657029

$169.49

13

Ball Bearing

420932290

$23.99

14

Ball Bearing

420232625

$20.99

15

Shim

420258316

$47.49

16

Allen Screw M6 X 20

420241939

$0.73

17

SHIFT FORK SHAFT - Call your local BRP dealership

420257690

Unavailable

18

Shift Fork Shaft

420258355

$82.99

19

Shift Fork Shaft

420258365

$82.99

20

Fork Spindle

420258383

$21.99

21

Angle Rotation Sensor

420266168

$194.99

22

Flat Washer

224061121

$0.53

23

Allen Screw M6 X 20

420241939

$0.73

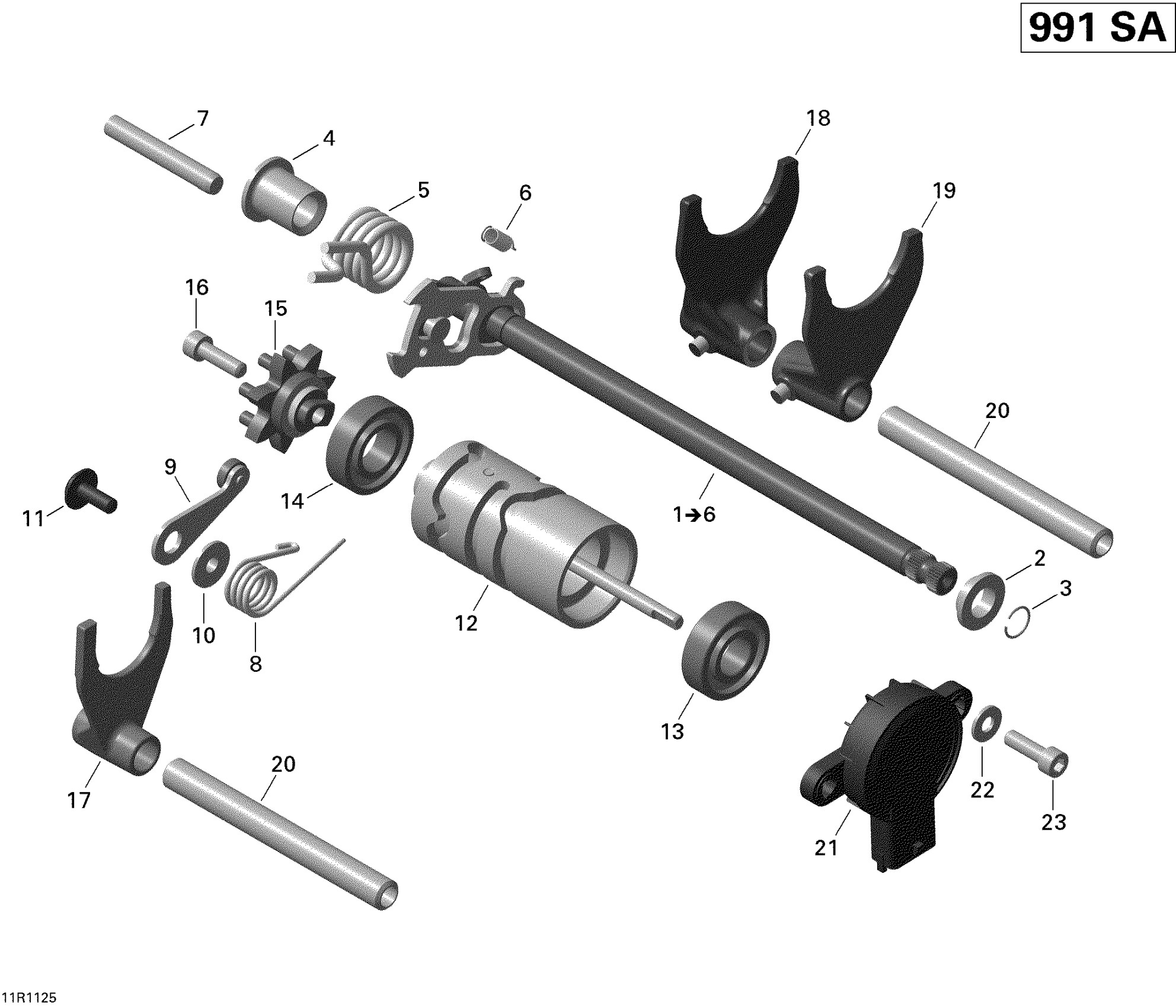

Can-Am Spyder RS Roadster SE5, 2011 05- Shifting System Diagram

Clutch Shaft Ass'y | Includes 1 to 6

Step Ring

Snap Ring

SLEEVE - Call your local BRP dealership

SPRING - Call your local BRP dealership

Spring

PIN, M6 X 55 - Call your local BRP dealership

Return Spring

INDEXATION LEVER - Call your local BRP dealership

Step Ring

Torx Screw M6 X 16

Shift Drum

Ball Bearing

Ball Bearing

Shim

Allen Screw M6 X 20

SHIFT FORK SHAFT - Call your local BRP dealership

Shift Fork Shaft

Shift Fork Shaft

Fork Spindle

Angle Rotation Sensor

Flat Washer

Allen Screw M6 X 20
