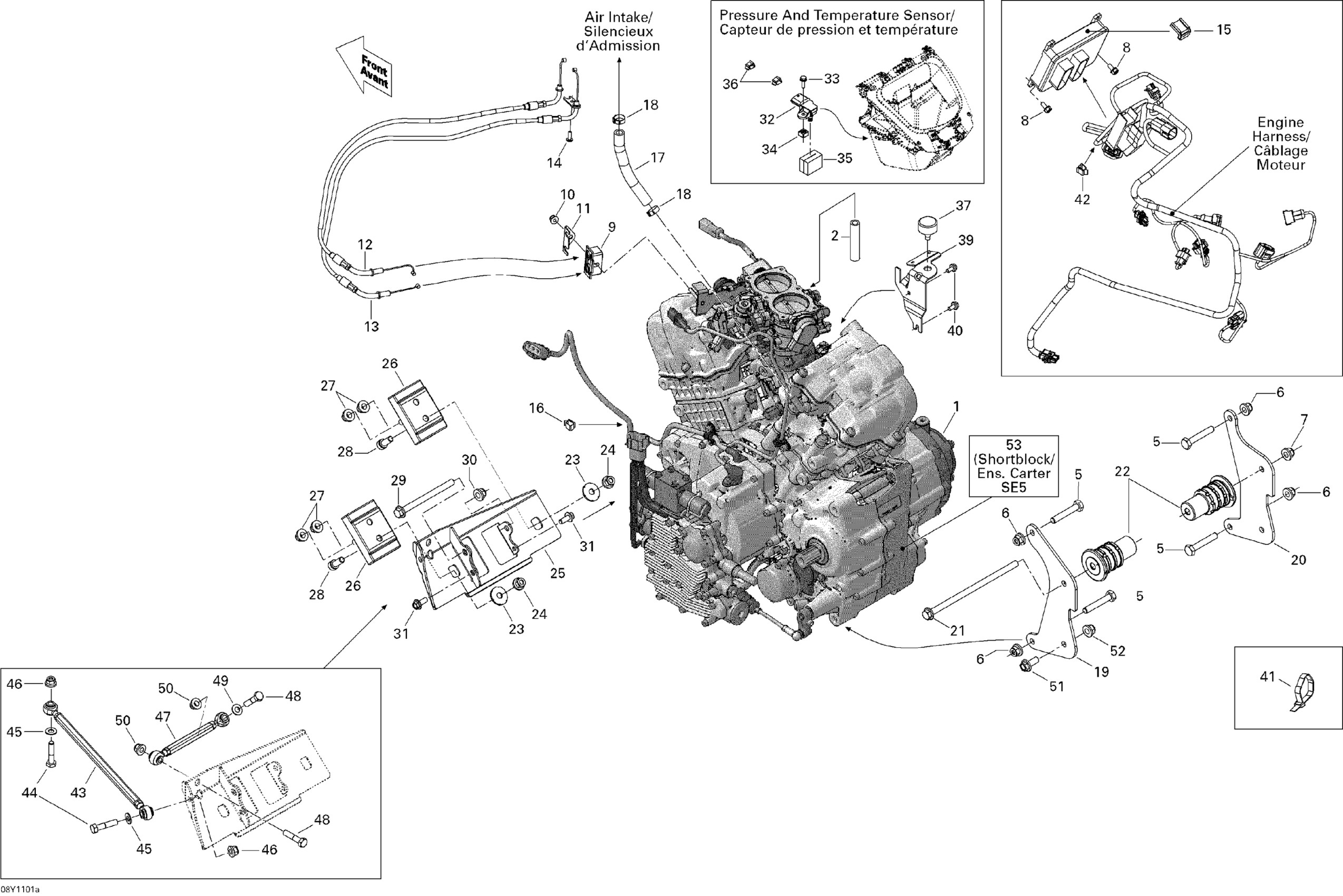

Can-Am Spyder RS Roadster SE5, 2011 01- Engine SE5 Diagram

#

Description
Price

1

ENGINE 991 - Call your local BRP dealership | Long Block 421000709

707000962

Unavailable

2

Hose

513033565

$30.99

5

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

6

Hex. Flange Elastic Nut M10

233201436

$2.11

7

Hex. Flange Elastic Nut M10

233201436

$2.11

8

Hex. Flange Screw M6 X 12

210261250

$1.90

9

INDEXING BLOCK - Call your local BRP dealership

707000614

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

FIXATION PLATE - Call your local BRP dealership

707000610

Unavailable

12

THROTTLE CABLE - Call your local BRP dealership

707001208

Unavailable

13

THROTTLE CABLE - Call your local BRP dealership

707001209

Unavailable

14

Torx Screw M5 X 14

250000742

$1.47

15

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

16

Clip

414227300

$1.67

17

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

18

Oetiker Clamp

293650186

$3.99

19

LH SUPPORT - Call your local BRP dealership

707000510

Unavailable

20

RH SUPPORT - Call your local BRP dealership

707000512

Unavailable

21

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

22

RUBBER MOUNT - Call your local BRP dealership

707000814

Unavailable

23

Lock Washer

512056700

$3.17

24

Hex. Flange Elastic Nut M10

233201436

$2.11

25

FRONT ENGINE SUPORT - Call your local BRP dealership

707001072

Unavailable

26

RUBBER MOUNT - Call your local BRP dealership

707000815

Unavailable

27

Hex. Flange Elastic Nut M10

233201436

$2.11

28

Socket Head Screw M10 X 25

205002544

$1.48

29

Hex. Flange Screw M10 X 125

230602546

$7.41

30

Hex. Flange Elastic Nut M10

233201436

$2.11

31

Hex. Flange Screw M8 X 20

207682044

$1.15

32

Pressure And Temperature Sensor

707000995

$88.99

33

Hex. Flange Screw M6 X 20

207662084

$1.69

34

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

35

Foam Filter

707000586

$5.50

36

Clip

414227300

$1.67

37

Rubber Stopper

708000758

$12.99

39

Intake Support

707000756

$11.07

40

Hex. Flange Screw M6 X 12

207661244

$2.11

41

Tie Wrap 142 mm

293750002

$1.25

41

Tie-Rap 180 mm

414115200

$0.11

41

Tie Wrap 368 mm

293750008

$1.04

42

Clip

414227300

$1.67

43

TIE ROD ASS'Y - Call your local BRP dealership

707000816

Unavailable

44

Hex. Screw M10 X 45

207004544

$1.69

45

Flat Washer 10 mm

234001410

$1.26

46

Hex. Flange Elastic Nut M10

233201436

$2.11

47

TIE ROD ASS'Y - Call your local BRP dealership

707001001

Unavailable

48

Hex. Screw M10 X 45

207004544

$1.69

49

Flat Washer 10 mm

234001410

$1.26

50

Hex. Flange Elastic Nut M10

233201436

$2.11

51

Hex. Flange Screw M10 X 25

207602544

$1.69

52

Hex. Flange Elastic Nut M10

233201436

$2.11

53

REBUILT - SHORT BLOCK SE5

421000709

Unavailable
